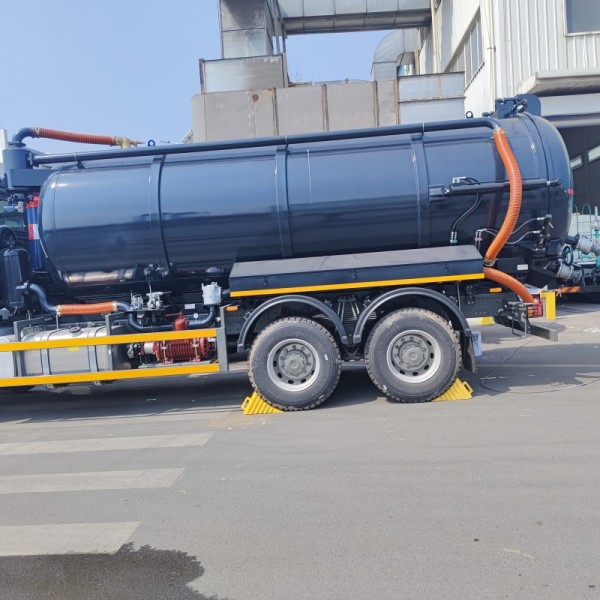

HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
Specifications
Model Number :
HOWO-7
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
L/C,T/T
Product name :
6*4 HOWO 15CBM sewage suction truck
Certification :
ISO
Place of Origin :
CHINA
Tank Volume :
15000L
Fuel :
Diesel
Condition :
New And Used
Specification :
10010*2500*3150mm
Brand Name :
HOWO
Delivery Time :
40 worker days
Drive Wheel :
6*4
Hoesrpower :
251-350hp
Trademark :
Evangel
Packaging Details :
nude
Supply Ability :
300 units/mouth
Description
HOWO 15CBM Vacuum Sewage Suction Truck for Algeria Septic Tank Cleaning Municipal Drainage and Industrial Waste Projects
Product Attributes

Product Name: HOWO 15CBM Vacuum Sewage Suction Truck

Vehicle Type: Vacuum Sewage Tanker / Septic Tank Cleaning Truck

Application: Septic tank emptying, municipal sewage collection, urban drainage cleaning, industrial liquid waste suction and transport

Chassis Specifications
  • Brand: SINOTRUK HOWO
  • Drive Type: 4×2 / 6×4
  • Cabin: HW76 with air conditioner
  • Engine Model: WD615 / WP10 series
  • Horsepower: 266HP / 290HP / 336HP
  • Fuel Type: Diesel
  • Emission Standard: Euro II / Euro III optional
  • Gearbox: HW19710, 10 forward + 2 reverse
  • Fuel Tank Capacity: 300L
  • Steering: Hydraulic power steering
Dimensions & Capacity
  • Overall Dimension: approx. 8500 × 2500 × 3200 mm
  • Wheelbase: 4600 / 5600 mm
  • Tank Capacity: 15CBM (15,000 liters)
  • GVW: 18,000 - 25,000 kg
  • Payload Capacity: 12,000 - 15,000 kg
Tank System
  • Material: Q235 carbon steel
  • Thickness: 6mm body + 8mm head
  • Structure: Cylindrical tank with reinforcement rings
  • Manufacturing: Automatic submerged arc welding
  • Rear Door: Hydraulic full-opening type
  • Sealing System: High-strength double rubber sealing
  • Anti-Corrosion: Internal anti-rust coating, epoxy optional for chemical waste
Vacuum System
  • Pump Type: Water circulation vacuum pump
  • Optional Pump: Italian high-performance vacuum pump
  • Max Vacuum Degree: ≥ -0.09 MPa
  • Air Flow Capacity: ≥ 300 m³/h
  • Suction Depth: ≥ 7 meters
  • Drive System: PTO driven
  • Efficiency: High suction efficiency for sludge, sewage and mixed waste
Pipeline System
  • Suction Hose Diameter: 100-150 mm
  • Hose Length: 6-8 meters (extendable)
  • Pipeline Material: High wear-resistant rubber hose
  • Filtration System: Double filtration (primary + secondary protection)
  • Separator System: Oil-gas separator + water-gas separator
  • Anti-blocking design for sand and sludge mixture
Discharge System
  • Discharge Type: Hydraulic tipping + pneumatic pressure discharge
  • Dumping Angle: ≥ 45°
  • Rear Door: Hydraulic automatic opening system
  • Discharge Efficiency: Fast unloading for continuous working cycles
Hydraulic System
  • Working Pressure: 16-20 MPa
  • Hydraulic Oil Tank: 120-150 L
  • Lifting Time: ≤ 60 seconds
  • System Type: Independent hydraulic circuit
PTO System
  • Type: Gearbox mounted PTO
  • Control: Mechanical / pneumatic operation
  • Feature: Stable continuous power output for vacuum operation
Axle & Suspension
  • Front Axle: 7-9 tons
  • Rear Axle: 13-16 tons
  • Suspension: Reinforced heavy-duty leaf spring
  • Frame: Double-layer strengthened chassis frame
Tyres
  • Size: 12.00R20 / 315/80R22.5
  • Configuration: 6+1 spare (4×2) / 10+1 spare (6×4)
Performance
  • Working Time: ≥ 8 hours continuous operation
  • Suction Efficiency: ≥ 95%
  • Daily Capacity: 8-12 tanks
  • Fuel Consumption: 18-25L/100km
Safety System
  • Anti-overflow automatic protection
  • Vacuum pressure relief valve
  • Emergency pressure release system
  • Anti-backflow protection system
  • Real-time pressure monitoring gauge
Adaptability (Algeria Market)
  • Suitable for hot and dry climate conditions
  • Reliable operation in urban and desert-edge environments
  • Compatible with local diesel quality
  • Easy maintenance with simple mechanical structure
  • Widely supported HOWO spare parts in North Africa market
Optional Configurations
  • Italian vacuum pump upgrade
  • Stainless steel tank for corrosive waste
  • Hose reel system
  • Remote control operation system
  • Double pump system for heavy-duty applications
  • High-pressure jetting system (combined suction + cleaning)
Packaging & Delivery

Production Time: 25-35 working days

Shipping Method: RORO / Bulk / Container (CKD optional)

Destination Port: Algiers / Oran / Skikda Ports

HOWO 15CBM Vacuum Sewage Suction Truck with 266HP Engine and 6×4 Drive for Septic Tank Cleaning
