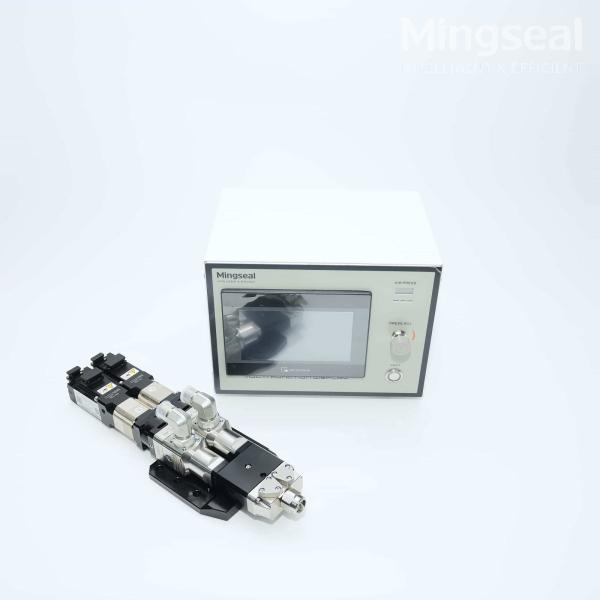

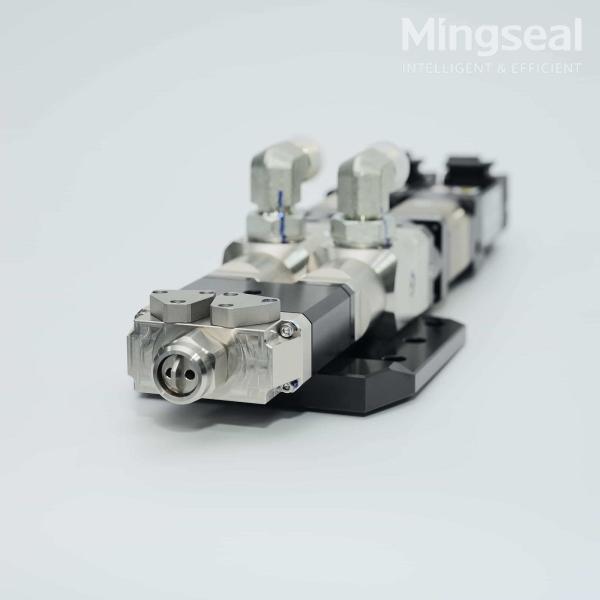

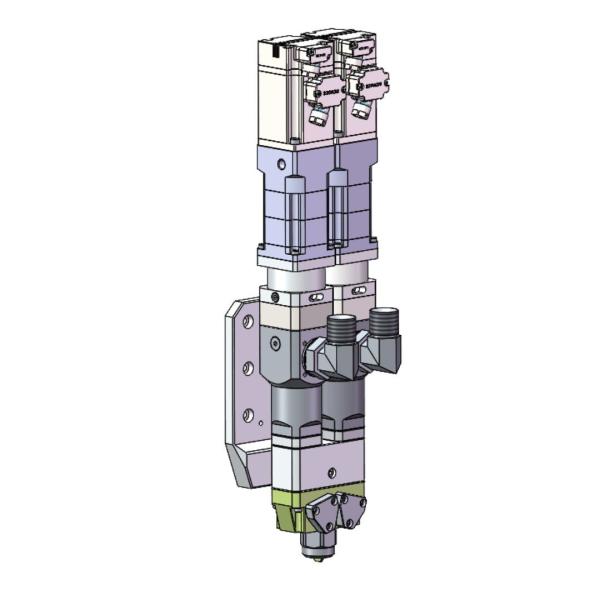

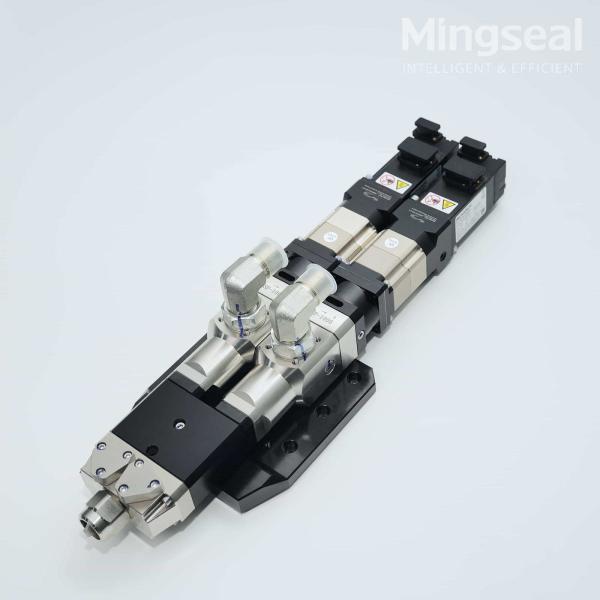

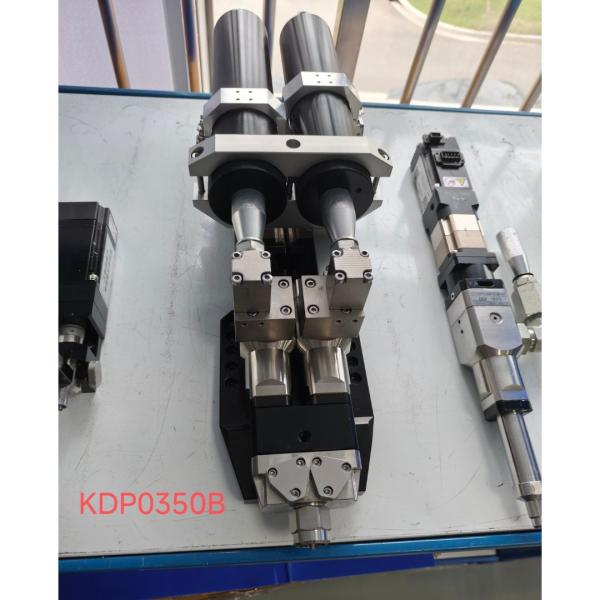

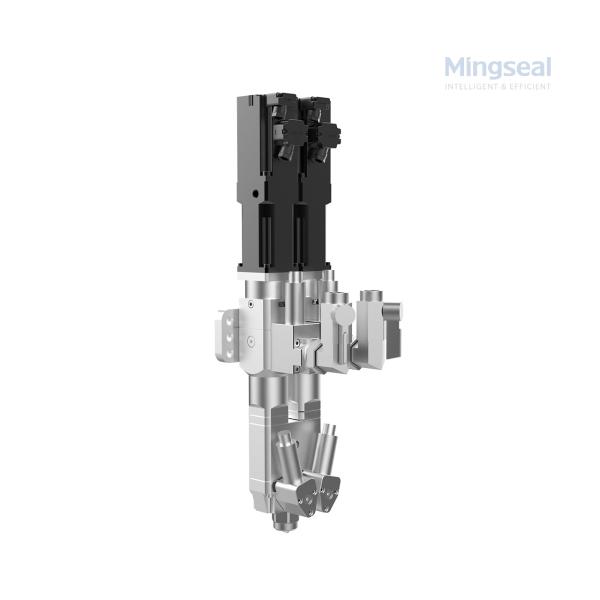

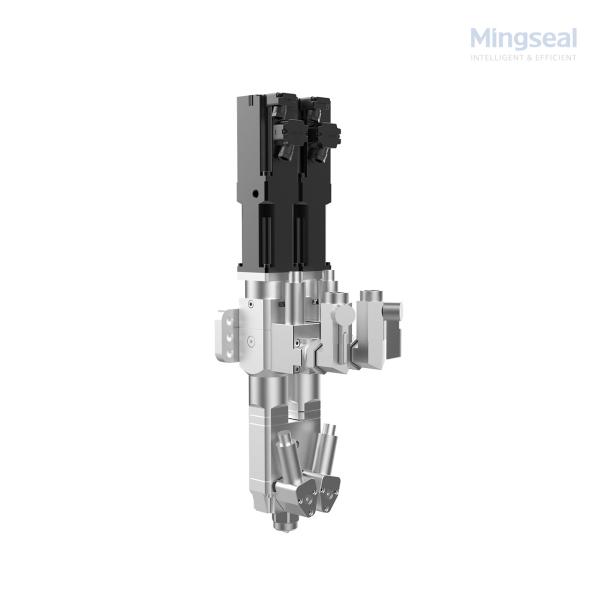

KDP0350 Volumetric and continuous flow Dual-component Eccentric Screw Valve

The KDP series is a kind of screw valve which is capable of continuous dispensing and precise dosing. The valve core consists of an eccentric screw engaged with a matching elastic rubber,and the valve body can be provided with valve cores of different flow specifications according to different application scenarios with different flow and glue amount requirements.
Two valve cores can be assembled into a two-component screw valve to dispense various two-component glues.

Core Advantages

◆ Suitable for standard 5-gallon/1-gallon drums/300ml/600ml syringes and other specifications.
◆ The two-component valve can monitor the dispensing pressure in real time to prevent the outlet from being blocked.
◆ Equipped with a closed-loop servo motor to achieve precise positioning and fault detection.

Main appliaction

• Electric Drive/Electric Control Shell Sealing
• BMS/OBC Heat Dissipation Coating
• Central Control Screen Structure Bonding
• Lidar Window Bonding

Technical parameters

FAQ

1. What is a dual-component eccentric screw valve and how does it work?
It is a volumetric metering and dispensing system designed to accurately dose and mix two-component fluids (A/B). Each component is independently delivered via eccentric screw pumps and mixed through a static or dynamic mixer at the outlet.

2. Can the valve maintain a consistent mixing ratio?
Yes. Each screw unit is servo-driven and volumetrically matched, enabling precise and programmable A/B ratio control (e.g., 1:1, 2:1, 10:1), with high repeatability and no pulsation.
