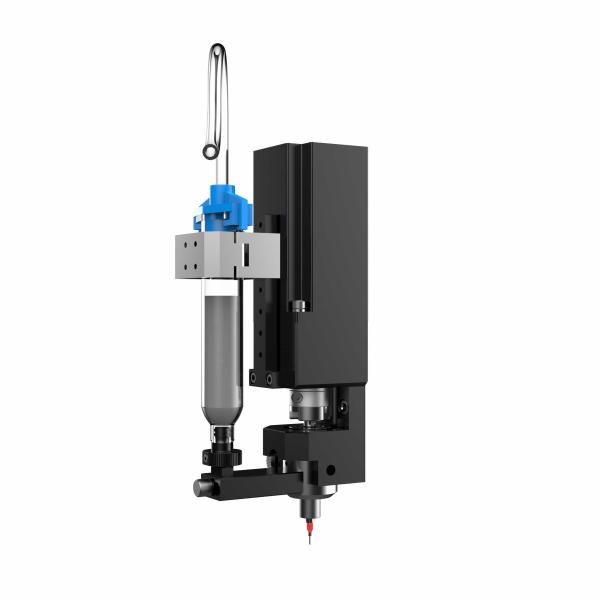

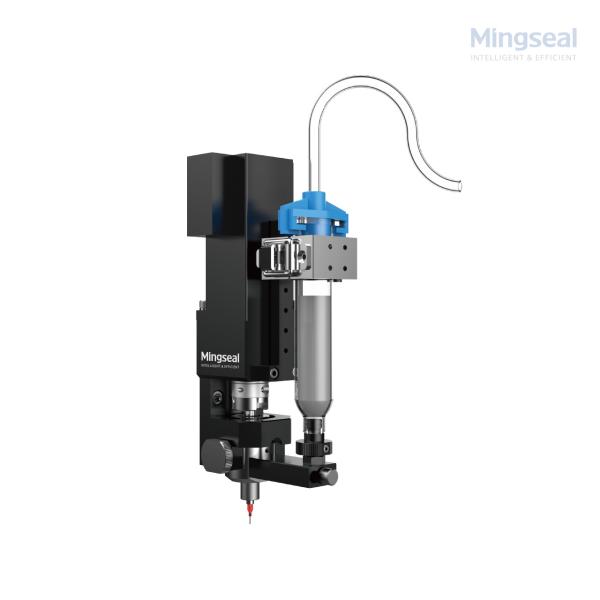

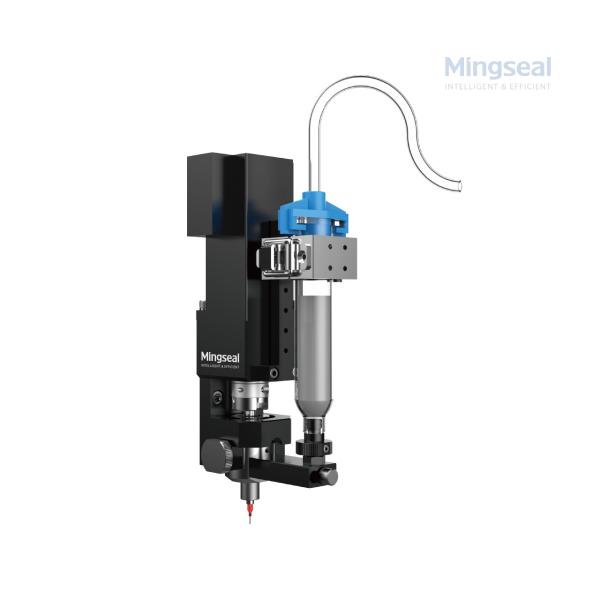

High viscosity KSV1000A-T Concentric Screw Valve for smart manufacturing

The concentric screw valve is an advanced dispensing solution ideal for high-precision applications in the semiconductor industry. It uses a motor-driven screw to deliver continuous and pulse-free flow of high-viscosity materials such as underfill, epoxy, and thermal interface materials (TIMs). Its concentric design ensures stable and repeatable dispensing, making it suitable for die attach, SiP module bonding, and microelectronic encapsulation. The valve supports both continuous bead dispensing and precision dotting, with clean cut-off and minimal material waste. It integrates easily with automated lines, helping meet strict reliability and yield requirements in advanced packaging processes.

Core Advantages

◆ With closed-loop servo motor, precise positioning, dispens-ing repeatability of 98% and minimum dispensing amount of 0.1ul can be achieved.
◆ With syringe guide installation design, 10/30/50ml syringes can be used and quickly removed and replaced to facilitate operation.

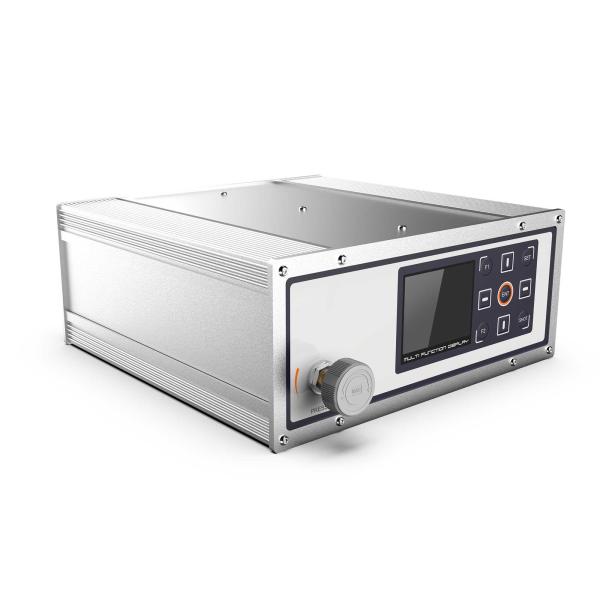

◆ With special negative pressure controller, the lower viscosity limit of applicable media can be reduced to 2000cps.

Main appliaction

TIM (Thermal Interface Material)
Application description: Thermal conductive materials such as thermal grease, thermal gel, thermal pad glue, etc. need to be filled between high-performance chips and heat sinks.

Technical parameters

FAQ

Q1: What semiconductor materials can the concentric screw valve handle?
A1: It is suitable for high-viscosity materials, silicone, TIMs, and gap fillers used in advanced packaging.

Q2: Can it perform both dot dispensing and continuous line dispensing?
A2: Absolutely. It supports both precision dot placement and continuous bead paths, making it flexible for various packaging steps.

About Mingseal

Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.

Partner with Mingseal to power the future of automatic manufacturing!
