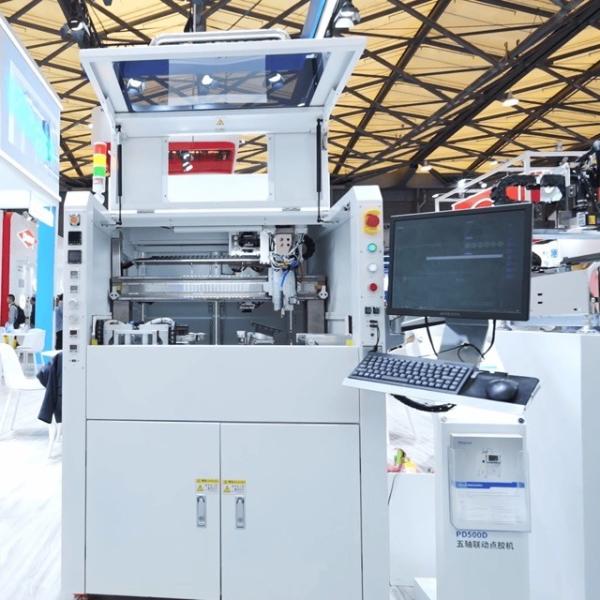

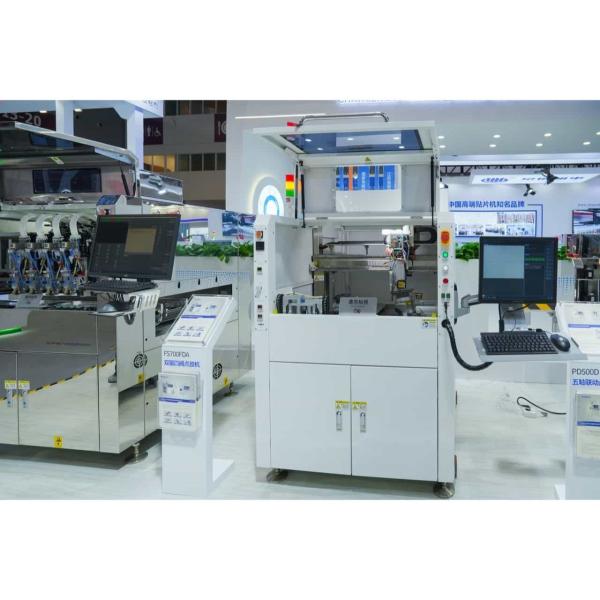

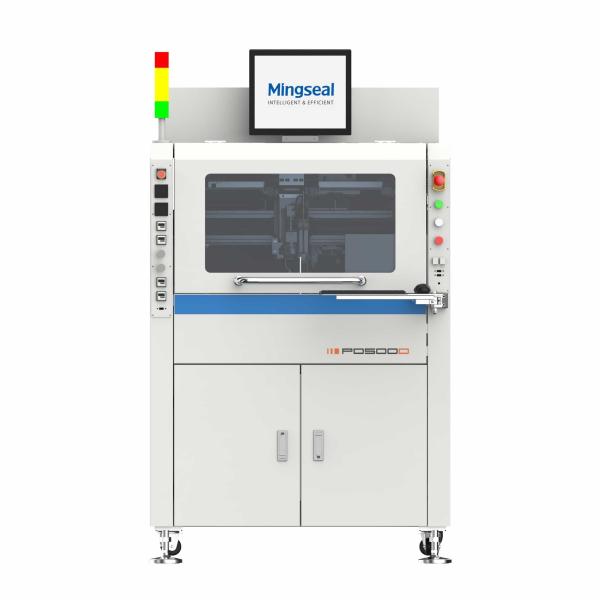

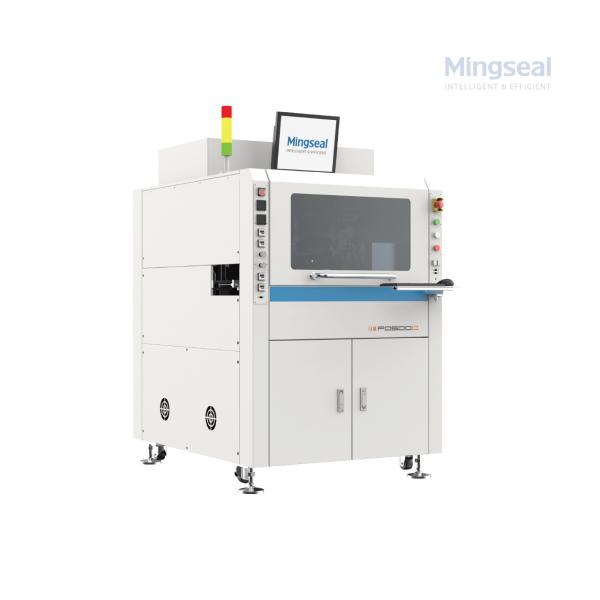

5 Axis Robot Dispensing Machine 3D Smart Wearable Dispensing System
5 Axis Robot Dispensing Machine 3D Smart Wearable Dispensing System
5 Axis Robot Dispensing Machine 3D Smart Wearable Dispensing System
5 Axis Robot Dispensing Machine 3D Smart Wearable Dispensing System
5 Axis Robot Dispensing Machine 3D Smart Wearable Dispensing System
5 Axis Robot Dispensing Machine 3D Smart Wearable Dispensing System
Specifications
Brand Name :
Mingseal
Model Number :
PD500D
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
$50000-$150000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30 sets / month
Delivery Time :
5-60 Days
Packaging Details :
Wooden Case
Dimension :
1087x1630x2000mm
Z-axis Motion Range :
200mm
Max. Dispensing Range :
200×200mm
Description

High-Performance 5-Axis 3D Smart Wearable Dispensing System

The PD500D Multi-Axis 3D Dispensing Machine is an innovative high-precision fluid dispensing system specifically developed for the growing smart wearable electronics market, including smart watches, fitness bands, and high-end wearable modules.Combining a 5-axis motion control platform with a sophisticated 3D vision module, the PD500D guarantees reliable bonding and sealing on complex shapes and small form-factor parts. This makes it ideal for precision glue dispensing on watch bezels, side frames, curved watch glass, and micro-flexible circuits.

Key Advantages:

  • Five-Axis Linkage Motion: Supports free 3D path interpolation for curved, inclined, or irregular watch components.

  • 3D Visual Inspection System: High-resolution vision alignment ensures precise glue position, compensating for material tolerance variation.

  • Stable Quality Control: Consistent dispensing width and volume guarantee uniform bonding lines on small wearables.

  • Improves Productivity: Dual-station configuration is optional for higher UPH and reduced machine idle time.


Application Fields:


✓ Smart Watch Bezel Bonding
✓ Fitness Band Flexible Circuit Fixing
✓ Wearable Device Display Frame Adhesive Sealing
✓ Curved Glass Cover Bonding for Wearables
✓ Miniature FPC Reinforcement
✓ Micro Module Encapsulation in Smart Rings
✓ Precision Glue Jetting for Wearable Sensors


Technical Specifications

PD500D Five-Axis Linkage Dispensing Machine
Effective Travel of Motion Axis X: 750mm Y:840mm Z:200mm Transmission System X/ Y:Linear motor Z: Servo motor
Positioning Accuracy (3 sigma) X/ Y: ± 0 . 008 mm Z: ± 0.01 mm Repeatability (3 sigma) X/ Y: ± 0 . 003 mm Z: ± 0.005 mm
Max. Acceleration X/ Y: 1.3g Z: 0.5g Speed X/ Y≤ 1300 mm/ s Z≤ 500 mm/ s
Travel Range for Visual Inspection X: 750mmZ: 190mm Z-axis Load 5kg
Dimensions (W × D × H) 1080 × 1400 × 2000 mm Motion interpolation Supports arbitrary path dispensing in 3D space
Edit Mode PC Communication Interface SMEMA/MES
Input Power AC22V 50-60Hz Air Pressure (0.5Mpa,350L/min)*2



Q&A


Q1: What makes the PD500D series suitable for smart watch production?
A: The PD500D’s five-axis motion and 3D vision module enable ultra-fine bonding on compact, curved wearable components that standard XYZ machines struggle with.


Q2: Can the PD500D handle different adhesives?
A: Yes, it is compatible with UV glue, epoxy, OCA adhesive, and other high-viscosity fluids used in wearable electronics.


Q3: How does the 3D vision module help?
A: The built-in 3D camera corrects real-time alignment, detecting material position shifts to keep dispensing lines accurate and consistent.


Q4: Does it support inline integration?
A: Yes. The PD500D connects easily to existing SMT lines, conveyors, and traceability systems.
