Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
Specifications
Brand Name :
Mingseal
Model Number :
PD500D
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
$50000-$150000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30 sets / month
Delivery Time :
5-60 Days
Packaging Details :
Wooden Case
Dimensions :
1087x1630x2000mm
Z-axis Motion Range :
200mm
Repeatability :
X1/Y1/X2/Y2：±0.003mm Z1/Z2：±0.005mm B1/B2： ±10Arc Sec C1/C2：±1.2Arc Sec
Description

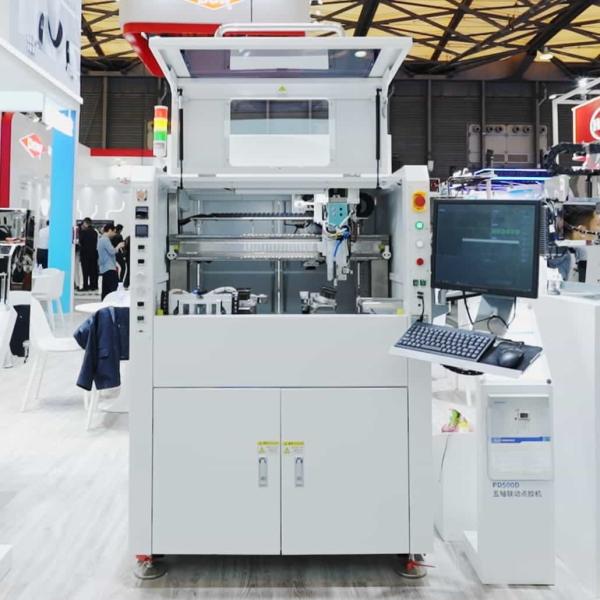

Dual-Station Smart Wearable Assembly Five-Axis Dispensing Machine

The PD500D is a high-precision 3D adhesive dispensing robot designed with a dual-station configuration, allowing simultaneous operation at two independent workstations. This dual-station feature significantly increases production efficiency, making it ideal for smart wearable manufacturing and complex special-shaped screen dispensing.
As an automatic dispenser machine, the PD500D excels in precision electronics assembly, flexible screen side dispensing, and FPC reinforcement applications. This glue dispensing robot integrates smoothly into automated dispensing systems, delivering high-speed, accurate, and consistent adhesive application. The PD500D’s dual-station design sets it apart by enabling greater throughput without compromising precision or quality.

Key Advantages:

  • Advanced 5-Axis 3D Motion

    Performs not just simple straight lines or circles, but full space arcs, ellipses, and involute curves — ideal for non-flat assemblies.

  • Inline Quality Control

    Integrated 3D inspection detects glue path quality on the fly. Visual edge detection corrects positioning for inconsistent incoming parts.

  • Optimized Operation & Debugging

    Graphical programming and position comparison modes ensure the dispensing head perfectly follows complex geometries.

  • Double-Station & Dual-Y Conveyance

    Alternate operation between two stations boosts throughput by reducing wait time for loading and unloading.


Application Fields:

✓ TP Side Dispensing
✓ Curved Screen Dispensing
✓ Flexible Screen Side Dispensing
✓ Smart Bracelet / Watch Dispensing
✓ Smart Ring Dispensing
✓ LiDAR Window Dispensing
✓ Special-Shaped Screen Dispensing

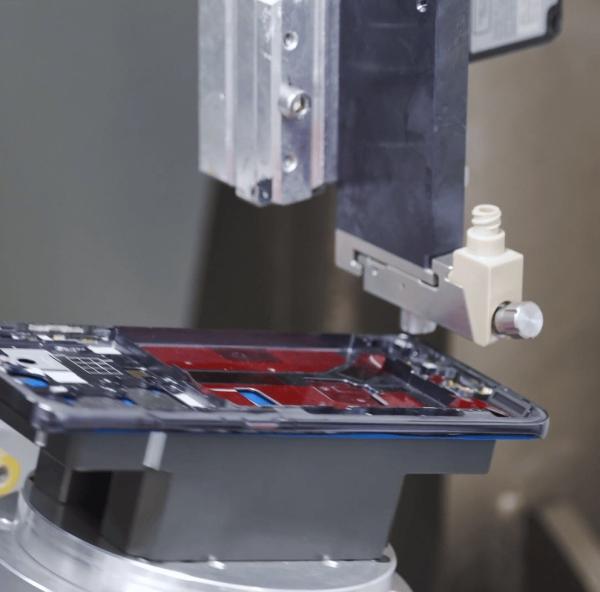

✓ Mobile Phone Middle Bezel Dispensing
✓ Flexible Screen FPC Reinforcement
✓ VR Glasses Dispensing
✓ TWS Product Dispensing

Core Modules
Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
3D Vision Module
3D guidance: The dispensing trajectory is automatically generated by line laser scanning of the product to ensure the dispensing accuracy.
3D inspection: Online glue path inspection is realized by line scanning laser.
Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
Dispensing Detection Execution Module
Back-to-back design: Dispensing operation and glue path inspection are carried out simultaneously to improve production efficiency.
Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing Machine
Double-Station Module
The double stations work alternatively to improve the production efficiency.Dual Station Robot Dispensing Machine Wearable Assembly Five Axis Dispensing MachineAutomatic Loading & Unloading Module
Unmanned loading and unloading are realized by automatic picking + handling to save the labor costs.

FAQ


Q1: What sets the PD500D apart from standard dispensing machines?
A: Its 5-axis motion control supports complex space curves and surfaces, unlike standard 3-axis setups that are limited to flat or simple curved paths.

Q2: Can it handle flexible and special-shaped screens?
A: Absolutely. It’s designed specifically for difficult geometries, including side screen edges, flexible displays, and non-planar wearable shells.

Q3: Does it check glue paths in real time?
A: Yes. Its 3D laser module inspects glue paths during and after dispensing to maintain high quality and reduce rework.

Q4: How does it boost line productivity?
A: Dual stations work alternately, and unmanned pick-and-place modules further cut idle time, giving you more output per shift.


About Mingseal


Mingseal is a trusted provider of high-precision dispensing solutions for smart manufacturing worldwide. We empower manufacturers in advanced electronics, optical components, and next-gen wearables with robust, automated equipment that improves yield, maximizes productivity, and keeps them ahead in competitive markets.
Contact Mingseal to explore how the PD500D Five-Axis Linkage Dispensing Machine can handle your most complex dispensing challenges with confidence and precision.
