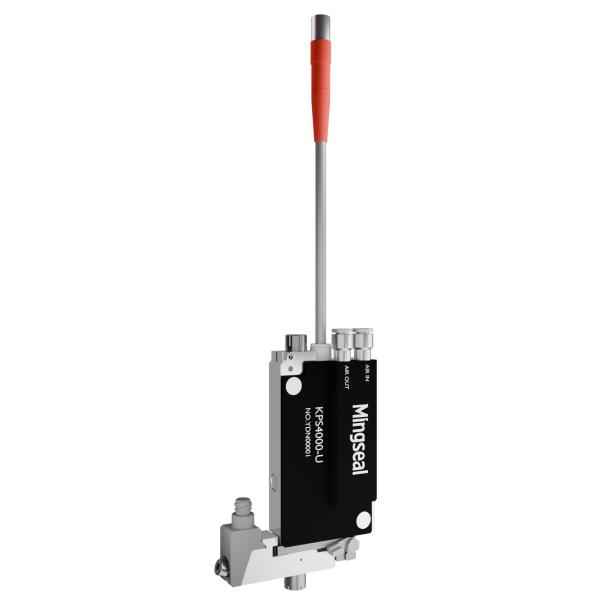

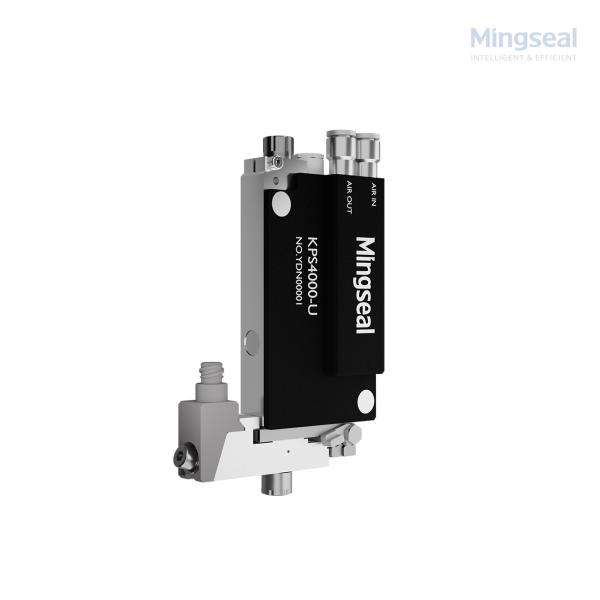

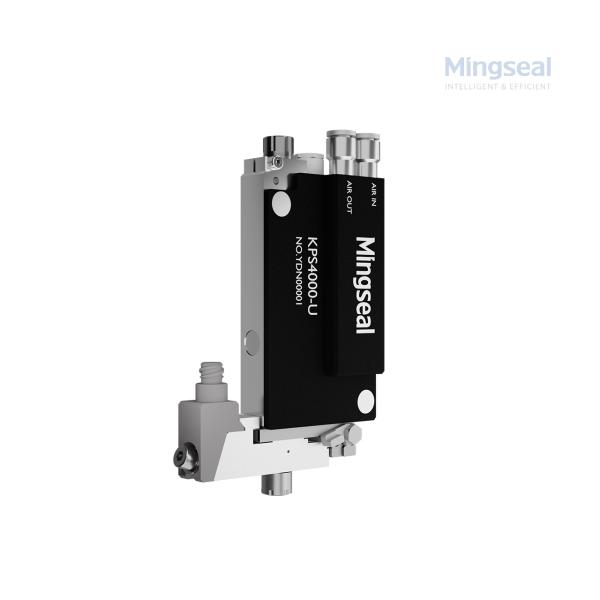

Ultra-fast response Piezo jet valve dispensing for Precision Electronics applications

Piezoelectric jet valves provide high-speed, non-contact dispensing for precision electronics manufacturing. Ideal for micro components, they ensure accurate, repeatable dot placement for adhesives, coatings, and solder pastes. Their fast response and stable performance make them perfect for CCM/VCM, Micro speaker, PCB, and advanced packaging applications.

Core Advantages

• Supports quick-release of flow channel, nozzle top calibration or nozzle adjustment-free function
• Support valve body stack temperature detection
• Valve body with strong injection force
• Different glue and process scenarios, different configurations are available

Main appliaction

1. Camera module (CCM) assembly
2. Micro speaker & micro motor (VCM)
3. PCB/FPC/SMT precision component dispensing
4. Optical communication module packaging
5. MEMS packaging

Technical parameters

FAQ

Q1: What types of fluids can a piezo jet valve dispense in precision electronics applications?
A1: Piezo valves are compatible with a wide range of fluids, including UV adhesives, epoxy, thermosetting adhesive, silicone, flux, red glue and conductive silver paste. They are especially suitable for low-to-medium viscosity fluids used in micro-assembly.

Q2: How accurate is the dispensing volume with a piezoelectric valve?
A2: Piezo jet valves offer ultra-precise volume control, with repeatability as high as ±1%. This ensures consistent dot size and placement, which is critical in precision electronics like CCM, MEMS, and micro speakers.

Q3: Is the piezo valve suitable for high-speed production lines?
A3: Yes. With a dispensing frequency up to 1000Hz or more, piezoelectric valves support high-throughput production while maintaining precision, making them ideal for automated SMT, PCB, and optical module assembly lines.

Q4: Does the valve support non-contact dispensing?
A4: Absolutely. Piezo jet valves use non-contact jetting, which avoids component damage and enables dispensing into hard-to-reach or narrow spaces, such as in microelectronic or 3D-structured parts.

Q5: How does the piezo valve maintain long-term stability?
A5: Thanks to its closed-loop piezo control and durable design, the valve delivers stable performance over millions of cycles, reducing maintenance downtime and ensuring reliable operation in mass production.
