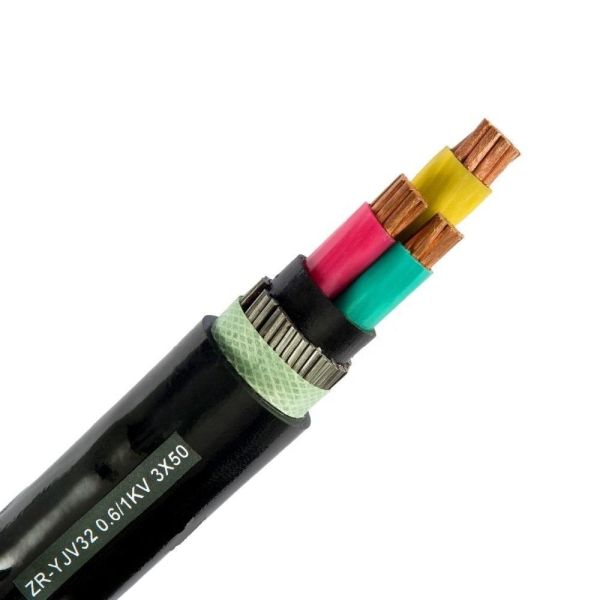

YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV Cable 1-1000mm² 1-4 Core ZR YJV ZC YJV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
Specifications
Brand Name :
Minfeng
Certification :
ISO,CE,IEC,TUV,KEMA
Cores No :
1-5
Place of Origin :
Hebei, China
Model Number :
YJVC-0.6/1KV
Type :
YJV YJV22 YJV32
Halogen Free :
Available
Core Mark :
Number or Color Strip
MOQ :
100
Delivery Time :
10 Days
Outer Sheath Color :
Black or as per required
Conductor Material :
copper or Al-alloy
Insulation :
XLPE
Flame Retardant :
Available
Payment Terms :
L/C,T/T
Packaging Details :
Wooden Drum
Supply Ability :
100KM/Week
Price :
0.1-5
Description
YJV Cable 1-1000mm² 1-4 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable Underground Electrical Cable
Product Overview

YJV Copper core XLPE insulated PVC sheathed power cable designed for underground electrical distribution applications. Available in various configurations including steel tape armored and steel wire armored versions.

Technical Specifications
Product Name Copper core or aluminum core XLPE insulated PVC sheathed power cable
Copper core or aluminum core XLPE insulated steel tape armoured PVC sheathed power cable
Copper core or aluminum core XLPE insulated steel wire armoured PVC sheathed power cable
Rated Voltage 0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Standard B/T12706-2008, GB/T12703-200, IEC60502-1-1997
Model YJV, YJLV, YJV22, YJLV22, YJV32, YJLV32, YJV42, YJLV42
Armoured Steel tape armored, steel wire armored. Double galvanized steel tape or galvanized steel wire for three core power cable. Double aluminium tape or aluminium wire for single power cable.
Number of Cores Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.
Common Sizes 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², 500mm², 630mm², 800mm², 1000mm², etc.
Types Ordinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type
Application Power distribution engineering, power transmission engineering, electromechanical and hydropower installation engineering, power transmission, power supply installation system, control system, etc.
Product Description

XLPE Insulated Power Cable - Power cables are used to transmit and distribute electrical energy. These cables are commonly employed in urban underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across rivers.

YJV cables serve as backbone cables in power transmission systems. They are typically installed in urban underground passages (underground manhole covers) or buried directly underground. Proper installation is crucial to prevent service interruptions.

Installation Precautions
  • The minimum bending radius when laying the cable should not be less than 10 times the outer diameter of the cable.
  • YJV / YJLV cables are designed for indoor installation, in channels and pipes, and can also be buried in loose soil that cannot bear external forces.
  • YJV22 / YJLV22 cables are suitable for underground laying and can withstand external mechanical forces, but cannot endure large tensile forces.
  • Special tools should be used for cable laying, such as pay-off racks, guide rollers, etc., to prevent mechanical damage during installation and keep cables away from heat sources.
  • When laying cables through pipes, the inner diameter of the pipe should not be less than 1.5 times the outer diameter of the cable. Avoid squeezing the cable when passing through pipes. The total area of cables should not exceed 40% of the total pipe area.
