VO-YMvKas Dca Armored Power Cable 0.6/1 KV Copper Conductor with XLPE Insulation for Industrial Use
VO-YMvKas Dca Armored Power Cable 0.6/1 KV Copper Conductor with XLPE Insulation for Industrial Use
VO-YMvKas Dca Armored Power Cable 0.6/1 KV Copper Conductor with XLPE Insulation for Industrial Use
VO-YMvKas Dca Armored Power Cable 0.6/1 KV Copper Conductor with XLPE Insulation for Industrial Use
Specifications
Cable Application :
Industrial
Free Sample :
Avaliable
Delivery Time :
5-8 Days
MOQ :
100m
Price :
0.1-5
Outer Sheath :
PVC
Packaging Details :
Wooden Drum
Transport Package :
Wooden Steel Drum
Brand Name :
Minfeng
Insulation :
XLPE
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
China
Supply Ability :
100KM/Week
Standard Compliance :
IEC 60228
Payment Terms :
L/C,T/T
Model Number :
VO-YMvKas Dca cable
Description
VO-YMvKas Dca Armored Power Cables 0.6/1 KV Copper Conductor
Braided power cables 0.6/1 kV suitable for all applications described in NEN1010 low voltage installations and where fire safety is required. These cables are suitable as ground cables.
Product Specifications
Rated Voltage0.6/1 kV
Size1.5-10 mm²
Conductor MaterialCopper
Insulation MaterialXLPE
Working Temperature-15°C to 90°C
JacketPVC
ApplicationIndustrial
TypeLow Voltage
Place of OriginHebei, China
Model NumberVO-YMvKas Dca cable
Brand NameMinfeng
StandardIEC 60228
Technical Features
  • Suitable as installation cable
  • Conductor surface: Bare
  • Standardization conductor material: IEC 60228
  • Shape of conductor: Round
  • Material core insulation: Crosslinked polyethylene (XLPE)
  • Conductor coding in accordance with HD 308 S2
  • Drain wire included
  • Armouring: Braiding
  • Material outer sheath: Polyvinyl chloride (PVC)
  • Flame retardant: IEC 60332-1 / IEC 60332-3-24 Cat. C
  • Reaction-to-fire according to EN 13501-6: Class Dca
  • Flaming droplets/particles: d2
  • Acidity: a3
  • UV resistant with good UV rating
  • Test duration: 3000 ≤ h < 6000
  • Max. conductor temperature: 90°C
  • Permitted cable outer temperature during assembling/handling: 0°C to 70°C
  • Nominal voltage U0: 0.6 kV
  • Nominal voltage U: 1 kV
  • Test voltage: 3.5 kV

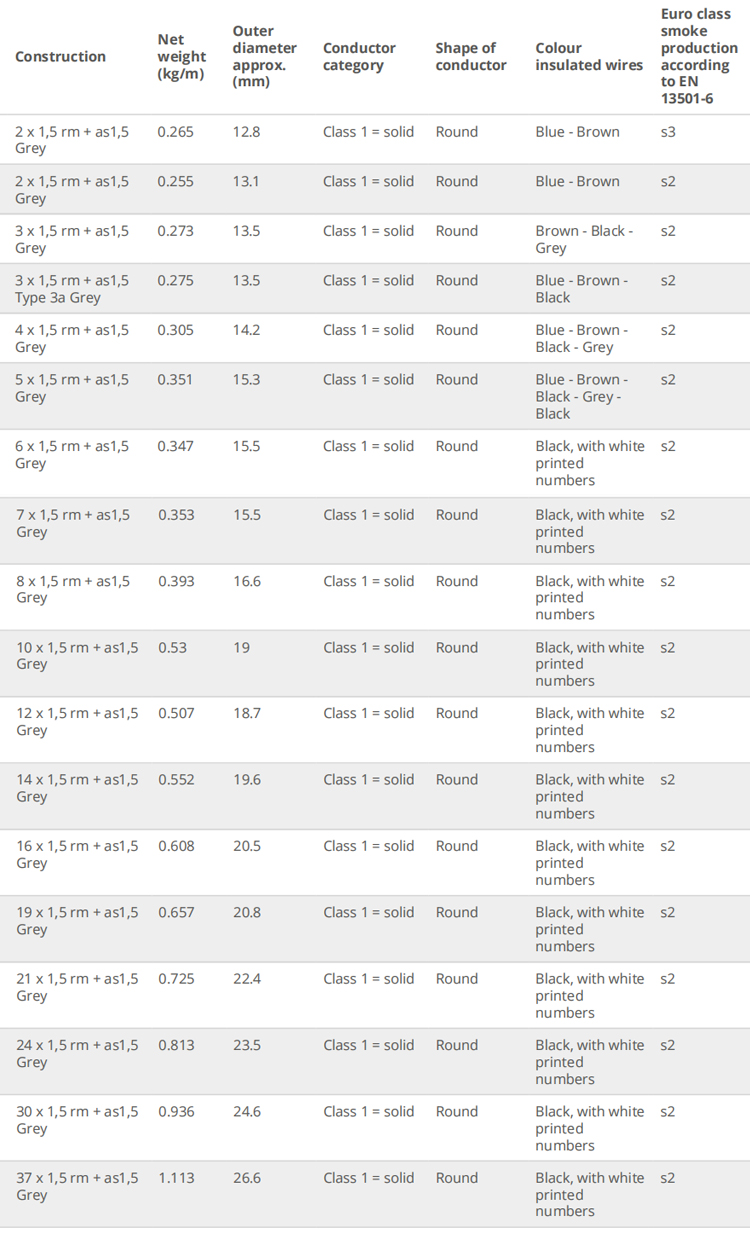

Product Image
