IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission
IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission
IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission
IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission
IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission
IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission
Specifications
Brand Name :
Minfeng
Model Number :
vv32
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Hebei, China
MOQ :
100
Price :
0.1-5
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Conductor Type :
Copper conductor
Free Sample :
Avaliable
Sheath Color :
Normally Black or customization
Number Of Cores :
1-63
Performance :
High Tension
Flame Retardant :
Yes/No (depending on type)
Insulation Material :
PVC (Polyvinyl Chloride)
Sheath Material :
PVC
Description
IEC 4 Cores PVC Insulated Steel Tape Armoured PVC Sheathed Ground Electric Power Cable
Product Overview
Low voltage PVC insulated armored power cable designed for reliable power transmission and distribution applications.
Key Specifications
Type: Insulated
Conductor Material: Copper or Aluminum
Insulation Material: PVC
Conductor Type: Plain annealed copper conductor class 2
Application: Power transmission & distribution
Standard: IEC 60502
Voltage: 0.6/1 KV
Cross Section: 1.5mm²-800mm²

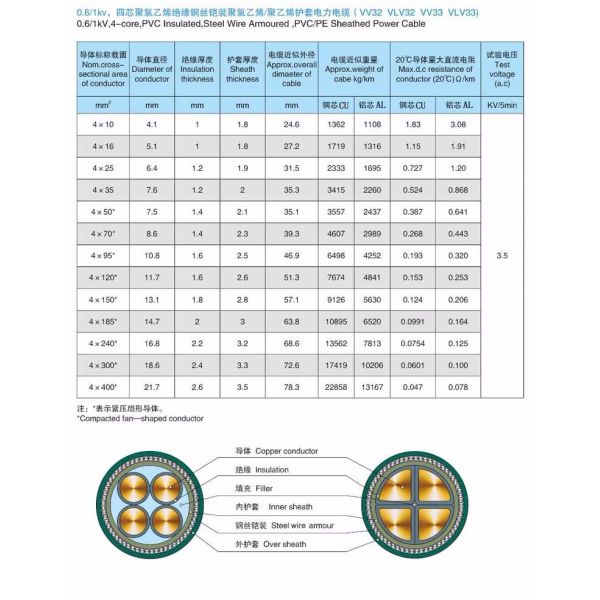

Cable Construction
  • Conductor: Stranded circular aluminium or copper conductor, as per Class 2 of IEC 60228
  • Insulation: Polyvinyl chloride (PVC)
  • Filler: Polypropylene filament with lapped binding tape
  • Binder: Binding tape
  • Inner sheath: Polyvinyl chloride (PVC)
  • Armour: Galvanized steel wire armored (SWA) or steel tape armored (STA)
  • Sheath: Polyvinyl chloride (PVC)
Available Core Configurations
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and more
Nominal Cross-Section Areas
1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800 mm²
Technical Features
  • Rated power-frequency voltage Uo/U: 0.6/1KV
  • Maximum permissible continuous operating temperature of conductor: 70℃
  • Maximum short-circuit temperature of the conductor shall not exceed: 160℃ (5S maximum duration)
  • The ambient temperature under installation should not below 0℃
  • The bending radius of a cable should not be less than 15 times of the cable diameter
Standards Compliance
IEC60502, and BS6346, VDE, AS/NZS, UL, etc. or as customer's request
Applications
  • Most suitable for direct burial or for installation on trays or ducts
  • Armoured cables should be used where there is a risk of mechanical damage
  • For laying in ground along route with large difference of level able to bear external mechanical forces
Product Images
IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission IEC 4 Core Steel Tape Armoured PVC Insulated Cables 0.6/1KV For Ground Electric Power Transmission
