Specifications
Brand Name :
Minfeng
Model Number :
submersible pump cable
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Hebei, China
MOQ :
100
Price :
0.1-5
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Temperature Range :
-40℃~+90℃
Insulating Type :
EPR/NBR
Cores :
1-5
Manufacturer :
Minfeng Cable Group
Standard :
IEC, BS, ICEA, CSA, NF, AS-NZS
Cable Size :
1.5-800mm2/18-10awg
Usage :
submersible pump cable
Standards :
BS,DIN and ICEA upon request
Cable Mark :
Printing or Embossing
Description
Waterproof Flat Rubber 3-4 Core Submersible Water Deep Well Pump Flat Power Cable
Product Overview

This submersible water pump cable features EPR (Ethylene Propylene Rubber) insulation for excellent resistance to water, chemicals, and heat, ensuring reliable performance in submersible applications. The flexible copper conductor allows for easy installation and bending in tight spaces and complex installations.

  • EPR insulation provides excellent water, chemical, and heat resistance
  • Flexible copper conductor for easy installation and bending
  • Wide working temperature range: -40°C to 90°C
  • Suitable for various environmental conditions from cold to hot
Product Specifications
Size 1.5-800mm² / 18-10 AWG
Conductor Material Copper
Insulation Material Rubber
Jacket Rubber
Application Industrial
Type Low & Medium Voltage
Voltage 450/750V, 0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV
Working Temperature -40°C to 90°C
Conductor Flexible Copper
Insulation EPR/NBR
Sheath PCP/CPE
MOQ 100m
Warranty 1 Year

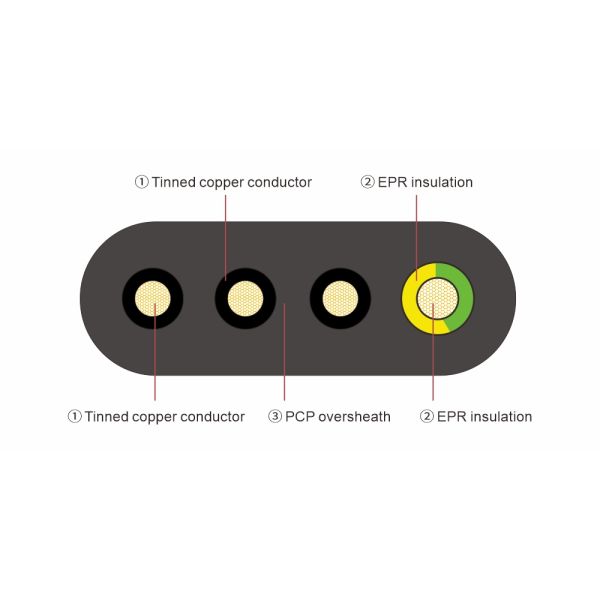

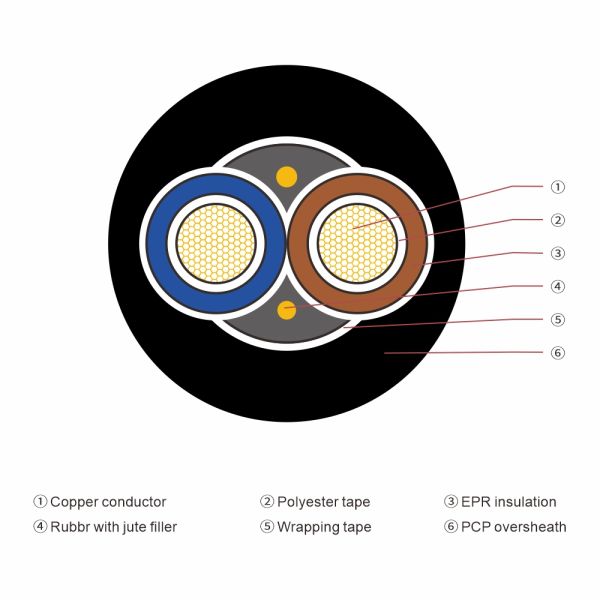

Detailed Features
  • Conductor: Class 5 flexible plain copper conductor
  • Insulation: EPR (Ethylene Propylene Rubber)
  • Sheath: PCP (Polychloroprene)
  • Cores: 1, 2, 3, 4, 5 cores or others
  • Voltage: 450/750V, 300/500V
  • Temperature Rating: Conductor operation temperature -40°C to +60°C (90°C max)
Applications

This submersible water pump cable is suitable for various types of lead wires for submersible motors (from underwater to above-water). The product can be equipped with a waterproof joint and features convenient use with excellent waterproof properties. Even with external damage, it guarantees the motor is protected from water damage.

Technical Specifications

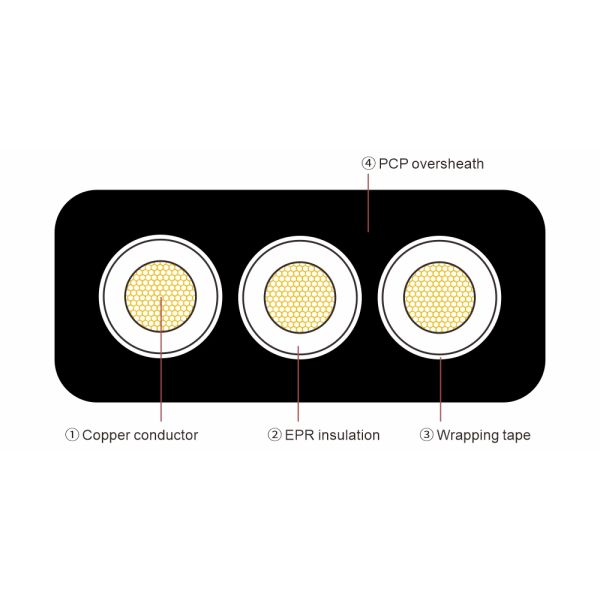

Flat Submersible Water Pump Cables Parameter
Conductor Size AWG No of Conductor Nos of Dia. Of Wire MM Ground Conductor Size AWG Core Dia MM Nominal Sheath Thickness MM
14341×0.254143.851.15
12365×0.254124.51.15
103105×0.254105.31.15
83168×0.254106.51.4
63226×0.254882
43420×0.254810.12
23665×0.254611.32.2
13817×0.254613.62.2
1/031045×0.254615.62.2
2/031330×0.2546182.2

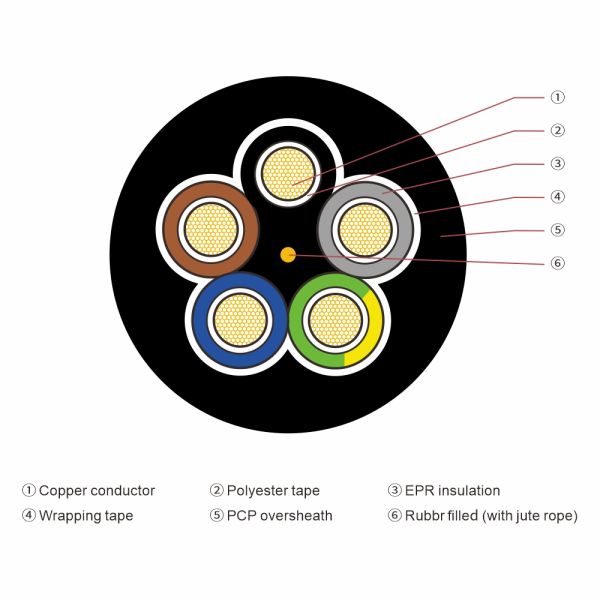

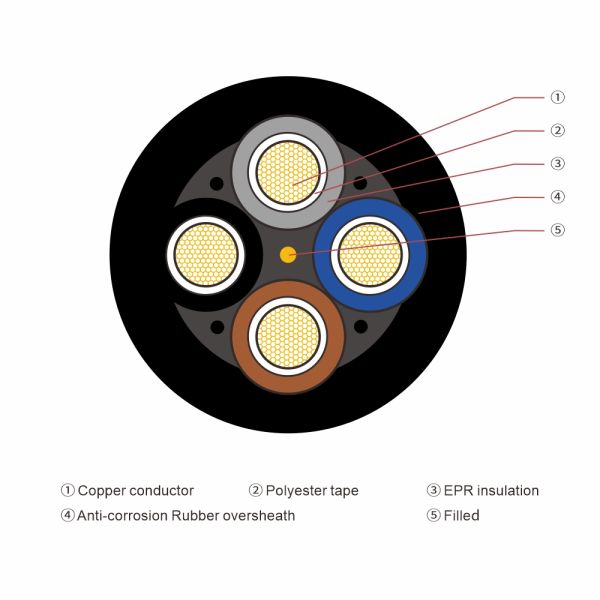

JHS Round Submersible Water Pump Cable Parameter
Conductor Nominal Area Sq. mm. Nos. & Dia. of Wire Nos./mm Nominal Core Dia 3 Core mm Approx. Overall Dimensions of double Sheathed Cable 3 Core mm Approx. Overall Dimensions of double Sheathed Cable 4 Core mm Current Rating at 40°C Amps
1.522/0.303.251010.814
2.536/0.303.841112.518
456/0.304.51314.126
684/0.305.314.61631
10140/0.306.51820.3542
16224/0.30821.223.457
25350/0.3010.12628.872
35490/0.3011.328.331.590
50703/0.3013.633.537.3115
70988/0.3015.337.842.2143
951349/0.301843.548.8165

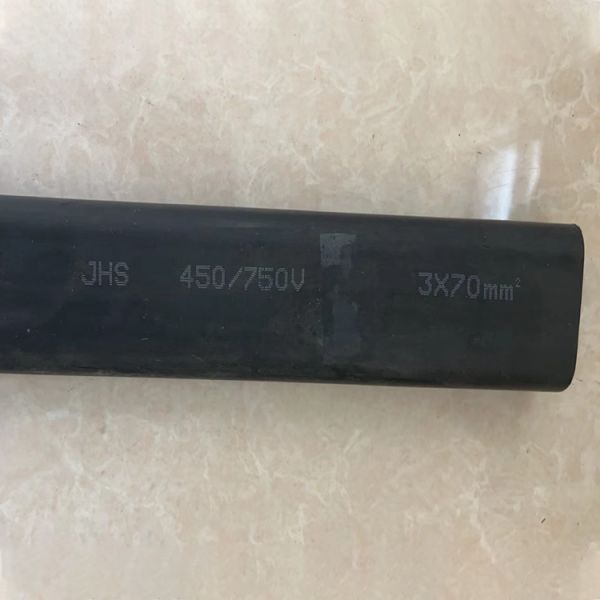

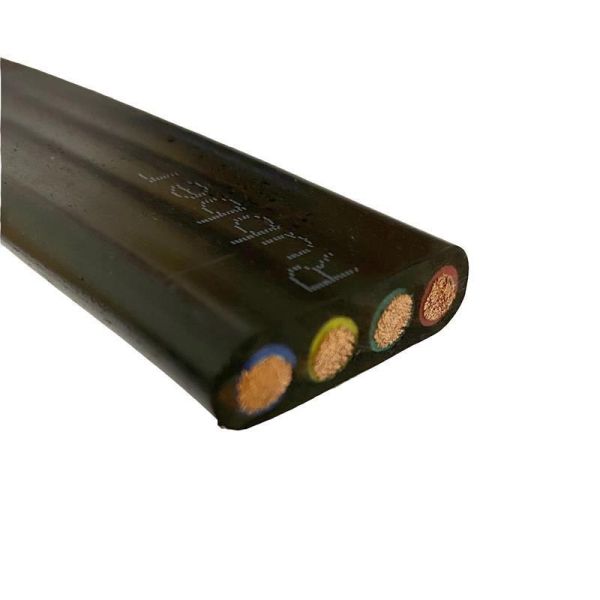

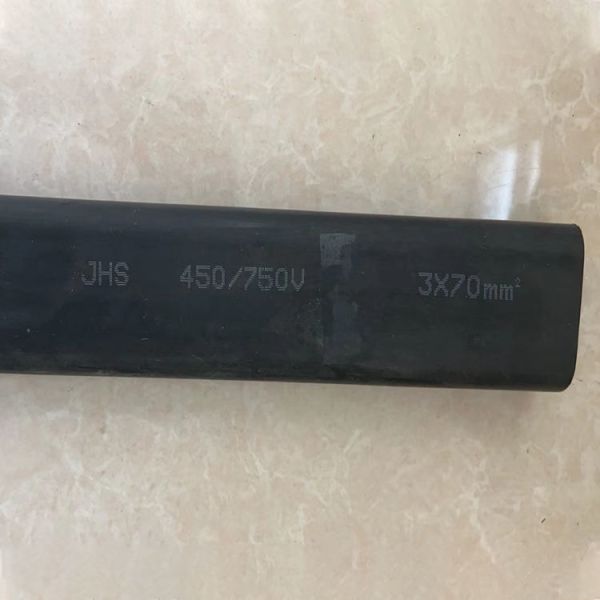

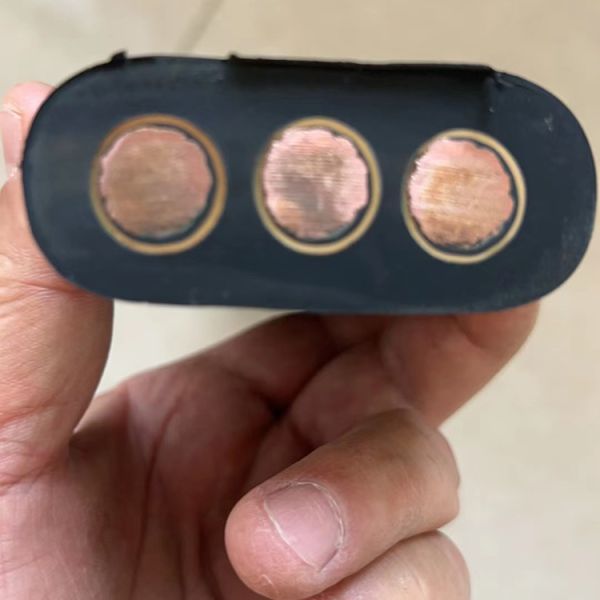

Product Images
Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range Waterproof Flat Submersible Pump Cable with EPR Insulation Flexible Copper Conductor and Wide Temperature Range
