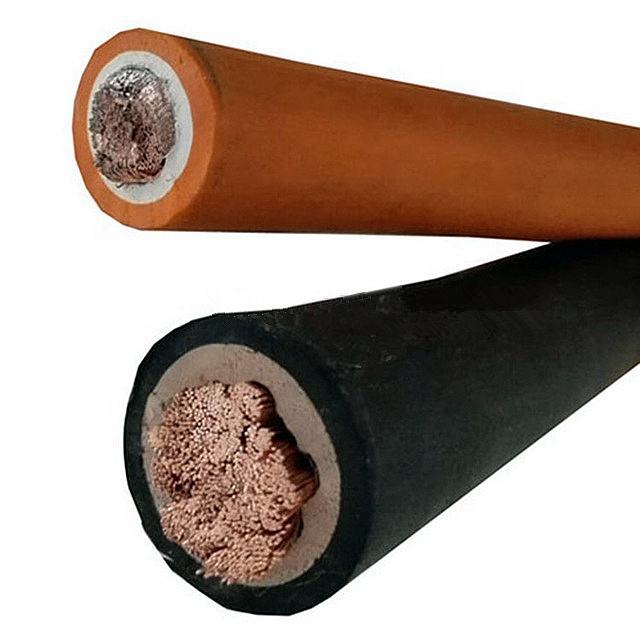

Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Specifications
Brand Name :
Minfeng
Place of Origin :
Hebei, China
Cable Mark :
Ink printing or Embossing
Insulation :
XLPE
Payment Terms :
L/C,T/T
Temperature Rating :
-30 °C ~ +80 °C
Model Number :
HF/FR Rubber Cable
Price :
0.1-5
MOQ :
100m
Standards compliance :
ROHS, IEC 60332-1
Supply Ability :
100KM/Week
Certification :
ISO,CE,IEC,TUV,KEMA
Packaging Details :
Wooden Drum
Sheath :
PUR
Delivery Time :
5-8 Days
Model Type :
HF/FR Rubber Cable
Description
Mining HF/FR 3x150mm² Water Proof Rubber Cable H07RN-F 1*240mm

High quality mining cable designed for demanding mining environments with excellent water resistance and durability.

Product Specifications
Type Insulated
Rated Voltage 600/1000V
Conductor Material Copper
Insulation Material Rubber
Working Temperature -30°C to +80°C
Conductor Type Stranded
Application Heating
Shape Round
Single Wire Size 240mm
Model Number HF/FR Rubber Cable
Brand Name Minfeng
Test Voltage 3500V
Standard IEC 60332-1
Certificate ISO9001/CCC
Cores 3 cores
Sheath Rubber
Specification 16sqmm to 240sqmm
Place of Origin Hebei, China
Technical Data
  • Conductor: Flexible plain annealed copper conductor, class 5
  • Conductor insulation: XLPE (Cross Linked Polyethylene)
  • Core color: Color coded
  • Screen: No screen
  • Outer sheath: PUR, yellow
  • Chemical resistance: Good oil, chemical, UV, ozone, and water resistance
  • Flame retardant and halogen free
  • Temperature range, flexible application: -30°C to +80°C
  • Temperature range, fixed installation: -40°C to +80°C
  • Nominal voltage Uo/U: 600/1000V
  • Test voltage: 3500V
  • Minimum bending radius, flexible application: 8 x cable diameter
  • Max. tensile load: 20 N/mm² of phases copper cross section
  • Standards: According to ROHS, IEC 60332-1
Dimensional Data
No. cores x cross section mm² Outer Ø app. mm Cable weight app. kg/km Current Rating [A] Tensile strength N
4G16 20 ±1.5 860 95 1280
3x25+3G6+2x1.5 25 ±1.5 1250 121 1500
3x35+3G6+2x1.5 27.3 ±1.5 1550 150 2100
3x50+3G10+2x1.5 31.5 ±2.0 2200 182 3000
3x70+3G16+2x1.5 36.5 ±2.0 3000 234 4200
3x95+3G16+2x1.5 40.5 ±2.5 3750 283 5700
3x120+3G25+2x1.5 44.5 ±2.5 4800 329 7200
3x150+3G25+2x1.5 51.5 ±2.5 5750 375 9000
3x185+3G35+2x1.5 56.5 ±2.5 7300 428 11100
3x240+3G50+2x1.5 61.5 ±2.5 8950 511 14400

Showing 1 to 10 of 10 entries. Other dimensions and colors available on request. All rights for changes reserved.

Other conductor sizes & core configurations are available upon request.

Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Packaging & Shipping
Mining HF/FR 3x150mm2 Water Proof Rubber Cable H07RN-F 1*240mm
Packing Options
  • A: Roll of 100 m
  • B: Reel of 1500 m
  • C: Reel of 1000 m
  • D: Reel of 500 m
  • E: Multiple Reels of 1000 m
  • Z: Length to the client's requirement

Steel wooden drum (fumigation). Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size: As per cable length and container size. In order to quote accurate price, kindly specify your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Information
  • Shipping Port: Shanghai, Qingdao, Tianjin or other ports as per your requirements
  • Sea freight: FOB/C&F/CIF/DAP quotation are all available
