0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
Specifications
Model Number :
TCu/MGT/EPR/ZH/GSWB/ZH SW4 Offshore Cable
MOQ :
100m
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Standard Compliance :
BS 7917, IEC/EN 60331-21
Rated Voltage :
0.6/1kV
Price :
0.1-5
Cable Mark :
Ink printing or embossing
Sheath material :
SW4
Brand Name :
Minfeng
Packaging Details :
Wooden Drum
Insulation :
Halogen free EPR
Certification :
ISO,CE,IEC,TUV,KEMA
Delivery Time :
5-8 Days
Sample :
Available
Cable Type :
Offshore Cable
Place of Origin :
Hebei, China
Description
0.6/1kV TCu/MGT/EPR/ZH/GSWB/ZH SW4 Offshore Cable 150/250V TCu/MGT/EPR/IS/CS/ZH/GSWB/ZH Offshore Instrument Control Cable
Product Overview

Fire resistant cables for fixed wiring in ships and on mobile and fixed offshore units. Compliant with international standards for marine and offshore applications.

Key Specifications
Rated Voltage 0.6/1kV, 150/250V
Conductor Size 1.5-250mm²
Conductor Material Tinned Copper
Insulation Material Halogen Free EPR
Working Temperature -20°C to +70°C
Jacket Halogen Free Heat Resistant
Application Industrial - Marine & Offshore
Standards BS 7917, IEC/EN 60331-21
TCu/MGT/EPR/ZH/GSWB/ZH 0.6/1kV SW4 Cable
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
Characteristics
Voltage Rating (Uo/U): 0.6/1kV
Temperature Rating: -40°C to +90°C
Minimum Bending Radius: Up to 25mm²: 4 x overall diameter; 25mm² and above: 6 x overall diameter
Construction
  • Conductor: 1.5mm²: Class 5 flexible tinned copper conductor; 2.5mm²: Class 2 stranded tinned copper conductor
  • Separator: Mica glass tape
  • Insulation: Halogen free EPR (Ethylene Propylene Rubber) Type GP4
  • Bedding: Halogen free elastomer EPR (Ethylene Propylene Rubber) Type SB 1
  • Armour: GSWB (Galvanized Steel Wire Braid)
  • Sheath: Halogen free heat resistant, oil resisting and flame retardant elastomer compound Type SW4
TCu/MGT/EPR/IS/ZH/GSWB/ZH 150/250V Cable
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
Characteristics
Voltage Rating (Uo/U): 150/250V
Test Voltage: 1.5kV
Temperature Rating: -40°C to +90°C
Minimum Bending Radius: 10 x overall diameter
Construction
  • Conductor: 0.75mm² to 1.5mm²: Class 5 flexible tinned copper conductor; 2.5mm² and above: Class 2 stranded tinned copper conductor
  • Separator: Mica glass tape
  • Insulation: Halogen free EPR (Ethylene Propylene Rubber)
  • Screen: Individual aluminium polyester tape
  • Bedding: Halogen free elastomer EPR (Ethylene Propylene Rubber)
  • Armour: GSWB (Galvanized Steel Wire Braid)
  • Sheath: Halogen free heat resistant, oil resisting and flame retardant elastomer compound
TCu/MGT/EPR/CS/ZH/GSWB/ZH 150/250V Cable
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
Characteristics
Voltage Rating (Uo/U): 150/250V
Temperature Rating: -40°C to +90°C
Minimum Bending Radius: 6 x overall diameter
Construction
  • Conductor: Class 5 flexible tinned copper conductor
  • Separator: Mica glass tape
  • Insulation: Halogen free EPR (Ethylene Propylene Rubber)
  • Drain Wire: Tinned copper
  • Screen: Collective aluminium polyester tape
  • Bedding: Halogen free elastomer EPR (Ethylene Propylene Rubber)
  • Armour: GSWB (Galvanized Steel Wire Braid)
  • Sheath: Halogen free heat resistant, oil resisting and flame retardant elastomer compound

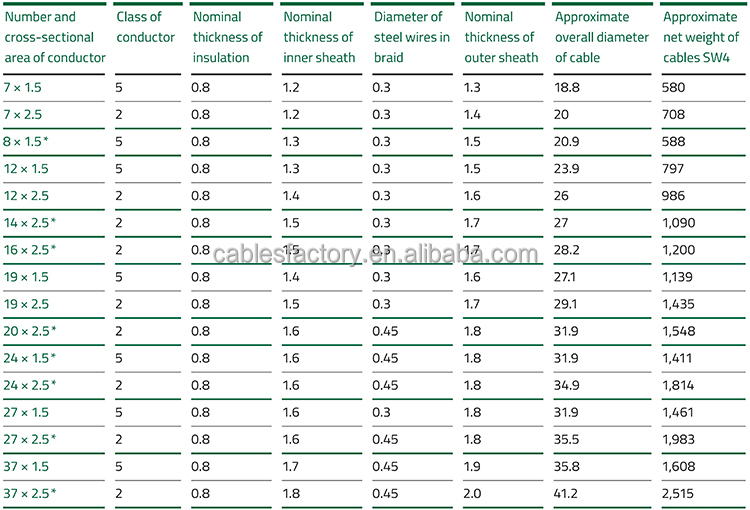

Additional Specifications
0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications 0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications 0.6/1kV Offshore Cable with Halogen Free EPR Insulation and Galvanized Steel Wire Braid Armour for Marine Applications
Compliance Standards
  • BS 7917
  • IEC/EN 60331-21
  • Flame Retardant according to IEC/EN 60332-3-22, IEC/EN 60332-1-2
  • Halogen Free according to: IEC/EN 60754-1/2
