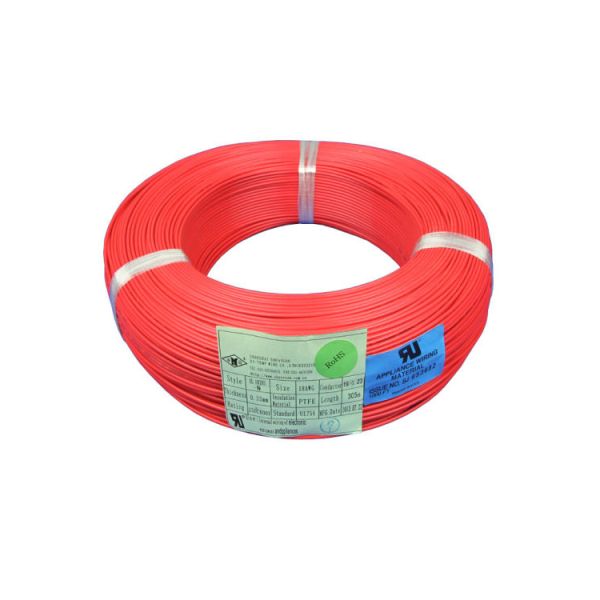

200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
Specifications
Brand Name :
Minfeng
Model Number :
High Temperature Wire
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Hebei, China
MOQ :
100
Price :
0.1-5
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Standards compliance :
ASTM/IEC
Voltage Rate :
600V
Application :
Various electric machines,electric ceramics,heating parts,car lighting,ballast etc
Sheath Material :
Silicone Rubber
Transport Package :
Wooden Steel Drum
Conductor Material :
Tinned/Silver/ Nickel Plated Copper
Insulation material :
RFEP PFA PTFE ETFE
Flexibility :
High
Description
200°C Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
Product Overview
Premium high-temperature wire designed for demanding industrial applications requiring exceptional heat resistance and flexibility. This ultra-soft insulated wire maintains performance in extreme temperature environments from -60°C to +200°C.
Key Specifications
Rated Voltage: 600V
Temperature Range: -60°C to +200°C
Conductor Material: Copper/Tinned Copper
Insulation Material: FEP/PFA/PTFE/ETFE
Conductor Type: Stranded
Size Range: 2-30 AWG
Standards: ASTM/IEC

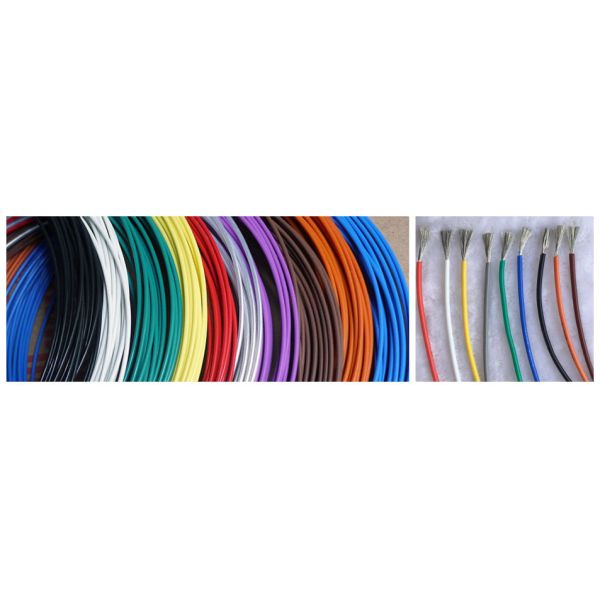

Available Colors: Black, Red, Orange, White, Green, Yellow, Blue, Brown, Grey, Violet or Customized
Applications
Various electric machines, electric ceramics, heating parts, car lighting, ballasts, and other high-temperature electrical applications.

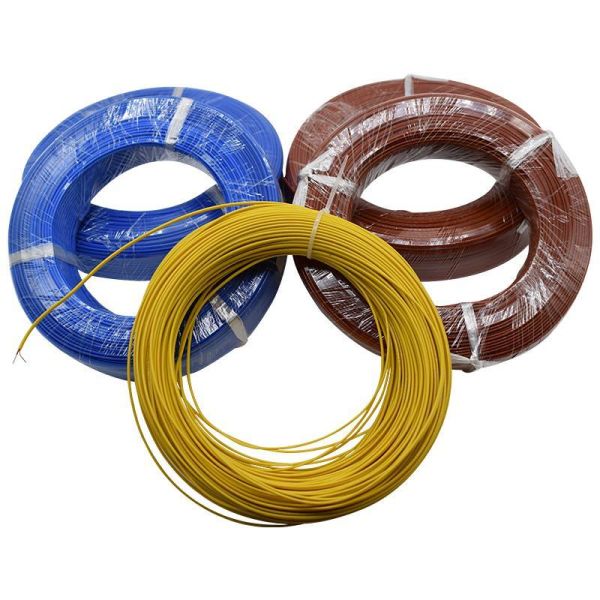

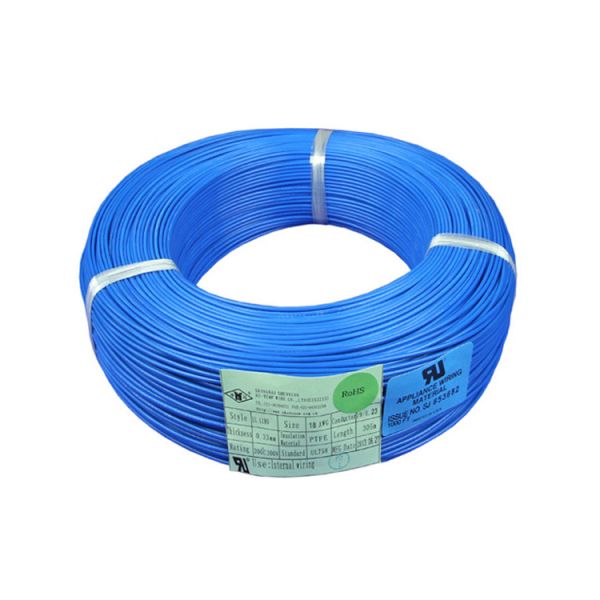

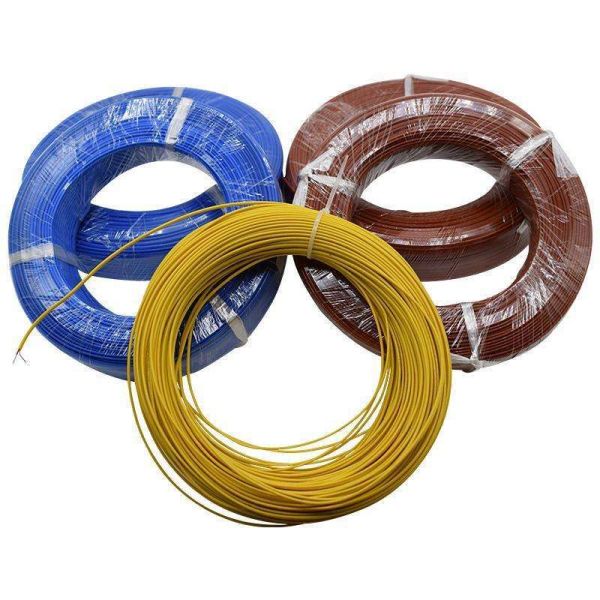

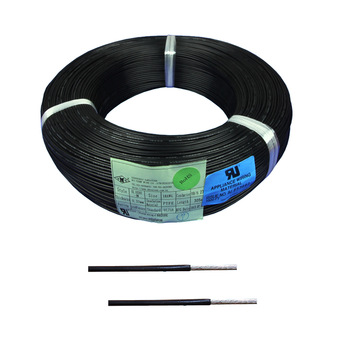

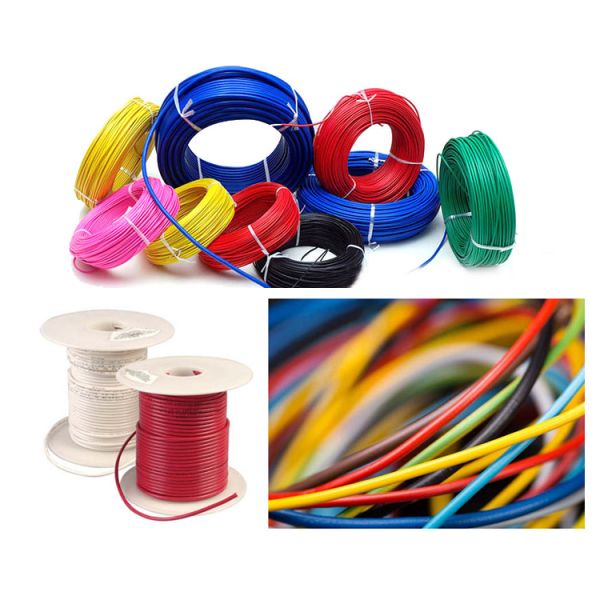

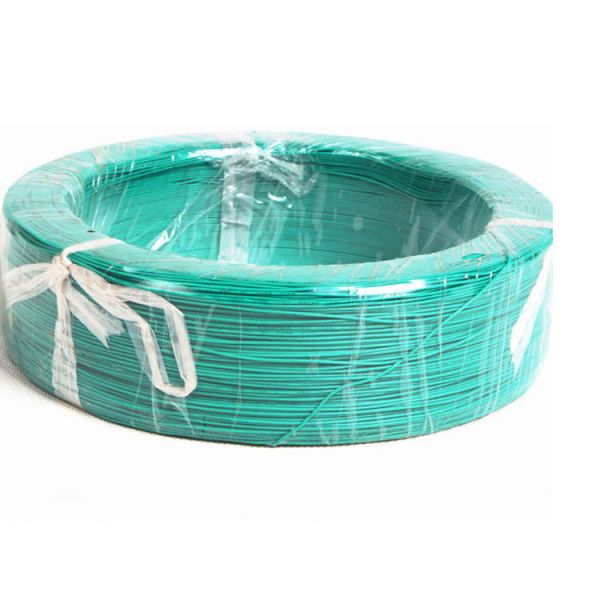

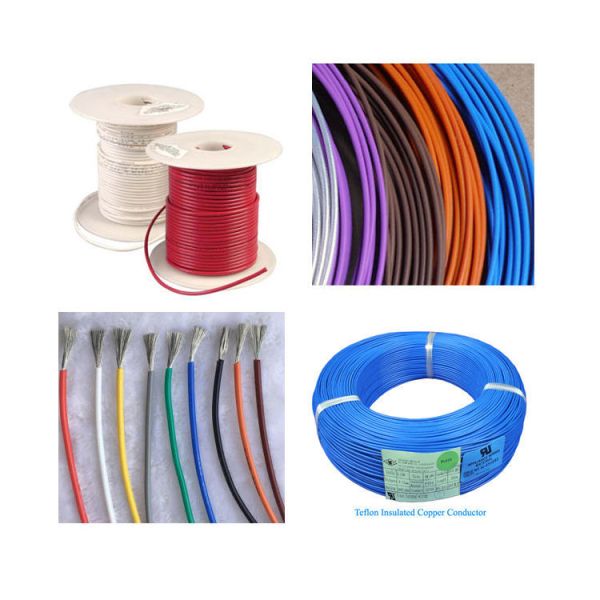

Product Images
200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire 200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire 200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire 200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire 200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire 200 Degree Heat Resistant FEP PFA PTFE ETFE Insulated Ultra Soft Flexible Electric High Temperature Wire
Technical Specifications - UL1330
Gauge (AWG) Construction (no/mm) O.D Insulation Thickness O.D Max Conductor Resistance (Ω/kft, 20℃)
30 7/0.10 0.31 0.51 1.27 361
28 1/0.12 0.37 0.51 1.39 227
26 7/0.16 0.49 0.51 1.51 143
26 19/0.1 0.5 0.51 1.52 143
24 7/0.2 0.61 0.51 1.63 89.3
24 19/0.12 0.6 0.51 1.62 89.3
22 7/0.25 0.76 0.51 1.78 56.4
22 19/0.15 0.76 0.51 1.78 56.4
20 7/0.31 0.95 0.51 1.97 35.2
20 19/0.19 0.96 0.51 1.98 35.2
18 7/0.39 1.19 0.51 2.21 22.2
18 19/0.235 1.18 0.51 2.2 22.2
16 7/0.5 1.53 0.51 2.55 14
16 19/0.3 1.51 0.51 2.53 14
14 19/0.37 1.86 0.51 2.88 8.78
12 19/0.47 2.32 0.51 3.34 5.53
Ordering Information
Minimum Order Quantity: 100M
Samples: Available
Warranty: 1 Year
Brand: Minfeng
Origin: Hebei, China
