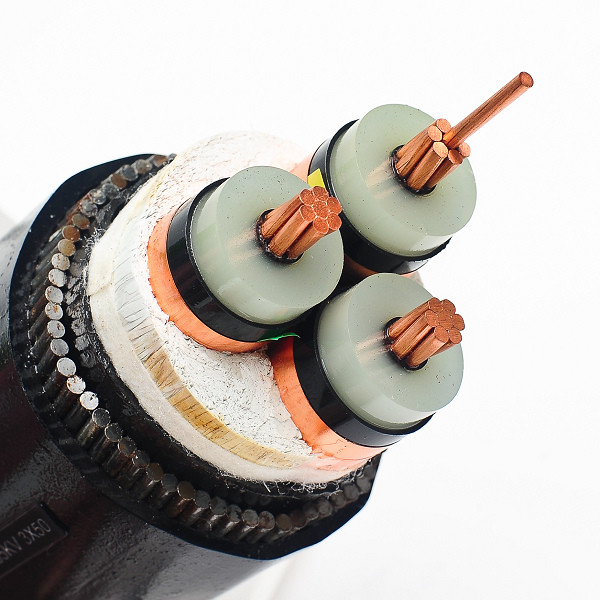

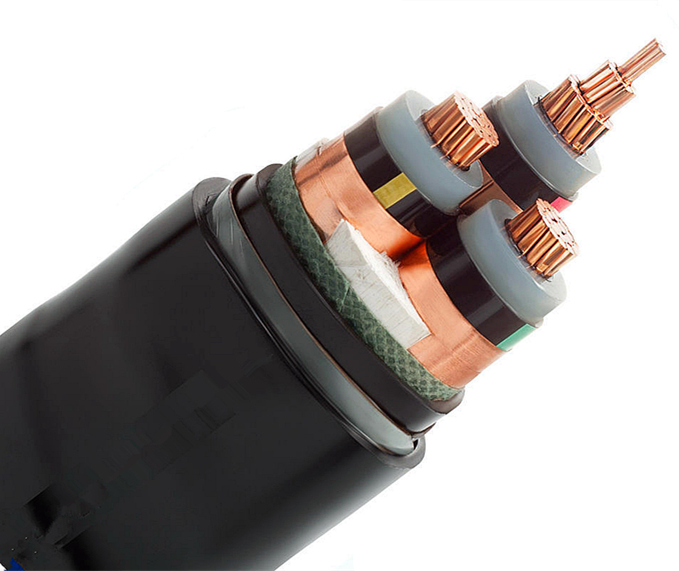

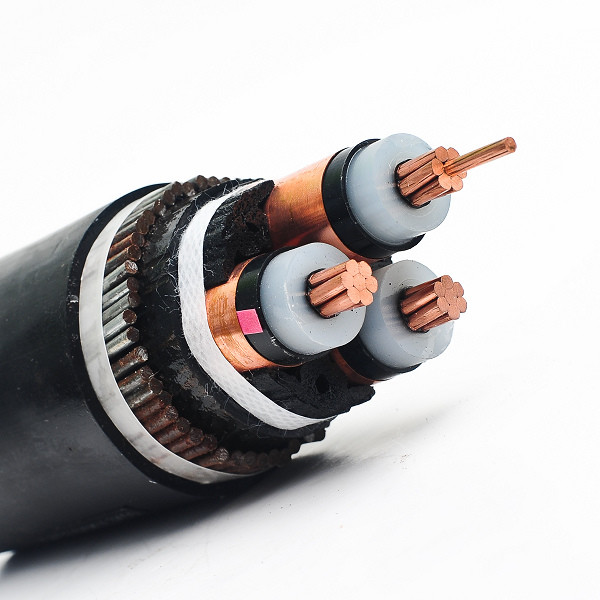

15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
Specifications
Brand Name :
Minfeng
Cable type :
Power Cable
Model Number :
15kV Cable XLPE Power Cable
Cable Drum Length :
300-500 meter per Drum
Supply Ability :
100KM/Week
Cable Structure :
3 Core
Operating Temp :
90 degree
MOQ :
100m
Armor :
Armored Or Unarmored
Packaging Details :
Wooden Drum
Payment Terms :
L/C,T/T
Sheath :
PVC
Cable Sample :
Available
Price :
0.1-5
Place of Origin :
Hebei, China
Delivery Time :
5-8 Days
Packing Style :
Steel wooden Drum
Certification :
ISO,CE,IEC,TUV,KEMA
Description
15kV 3core 35mm² XLPE Insulated 133% Insulation Armor Cable
Product Overview

Medium Voltage Copper Conductor 3 Core XLPE Power Cable used for indoor or outdoor applications, in tunnels, cable furrows, pipes, underground laying, and suitable for wells, underwater installations, and challenging soil conditions.

Smart Monitoring Capabilities

Integrated intelligent high voltage XLPE cable enables online monitoring of operational parameters including real-time temperature measurement, fault location, partial discharge monitoring, current carrying capacity assessment, and outer sheath condition evaluation. This advanced monitoring system enhances cable safety, extends service life, optimizes transmission capability, reduces operational costs, and improves overall efficiency.

15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
Cable Types & Applications
Type Name Main Application
YJV
YJY		 YJLV
YJLY		 XLPE insulated, PVC or PE Sheathed Power Cable - For indoor, tunnel, channel and underground laying. Cannot bear external mechanical force but can withstand traction during installation.
YJV22
YJY22		 YJLV22
YJLY23		 XLPE Insulated, Steel Tape Armoured, PVC or PE Sheathed Power Cable - For indoor, tunnel, channel and underground laying. Can bear external mechanical force but not large pulling force.
YJV32
YJY32		 YJLV32
YJLY32		 XLPE Insulated, Fine Steel Wire Armoured, PVC or PE Sheathed Power Cable - For shaft laying with large level differences. Can bear external mechanical force and moderate pulling force.
YJV42
YJY42		 YJLV42
YJLY42		 XLPE Insulated, Thick Steel Wire Armoured, PVC or PE Sheathed Power Cable - Can bear positive pressure and pulling force.
Note: "ZR-" includes ABC three kinds of flame retardant cables, respectively indicated as "ZRA-", "ZRB-", or "ZRC-". For example: "ZRB-YJV", "ZRA-YJV22".
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
Technical Specifications
Reference Standards IEC60502-2, IEC 60228, IEC60332 -1/2/3, BS6622, BS7835, VDE0276, AS/NZS 1429.1, GB/T 12706, etc.
Rated Voltage 6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV, 19/33kV
Core Number Single Core or Three Core (1C or 3C)
Available Dimensions 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², 500mm², 630mm²
Codes Available N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY, N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY, YJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJLV23, YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32
Application For power networks, underground, outdoors and in cable ducting. Follow local electric code installation instructions for safety and product integrity.
Cable Construction
Conductor Stranded round compacted copper or aluminum conductor (Cu / Al), copper wire annealed
Conductor Screen Semi-conducting material
Insulation XLPE (Cross-Linked Polyethylene)
Insulation Screen Semi-conducting material
Metallic Screen Copper tape screen or copper wire screen (CTS / CWS)
Filler PP rope
Separator Binding tape
Bedding PVC (Polyvinyl Chloride)
Armouring Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA)
Sheath PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR
Colour Red or Black
Temperature Rating 0°C to 90°C
Minimum Bending Radius Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations with controlled bending using a former)
15kV 3core 35mm^2 XLPE Insulated 133% Insulation Armor Cable
Packaging & Shipping
Packing
  • Steel wooden drum (fumigation)
  • Cable length in each drum: 500m/1000m or as per actual cable length requirements
  • Drum size: As per cable length and container size

*For accurate pricing, please specify your required cable length quantity. Larger quantities receive additional discount benefits.

Shipping Information
  • Shipping Port: Shanghai, Qingdao, Tianjin or other ports as per your requirements
  • Sea freight: FOB/C&F/CIF/DAP quotations available
Product Attributes
Conductor Material Copper
Insulation Material XLPE
Jacket PVC
Application Construction, Building, Underground, Power Station
Type Medium Voltage
Place of Origin Hebei, China
Model Number 15kV Cable XLPE Power Cable
Brand Name Minfeng or OEM
Product Name 15kV 3core 35mm² XLPE Insulated 133% Insulation Armor Cable
Rated Voltage 15kV
Standard DIN VDE 0276-620, HD 620 S1, DIN/BS EN 60228, BS EN/IEC 60332-1-2
Certificate ISO9001/SGS/CCC
Cores Three Core Cable
