YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
Specifications
Temperature Range :
-20℃~+90℃
Packing :
Treaty Steel wooden drum
Price :
0.1-5
Standard compliance :
IEC, BS, IEEE
Payment Terms :
L/C,T/T
Sheath :
LSZH
Certification :
ISO,CE,IEC,TUV,KEMA
Packaging Details :
Wooden Drum
Model Number :
YJV VV Cable
Range Of Application :
Industrial
Marking :
Laser Printing
Supply Ability :
100KM/Week
Insulationmaterial :
XLPE (Cross-Linked Polyethylene)
Place of Origin :
Hebei, China
MOQ :
100m
Brand Name :
Minfeng
Sample :
Available /Free
Delivery Time :
5-8 Days
Description

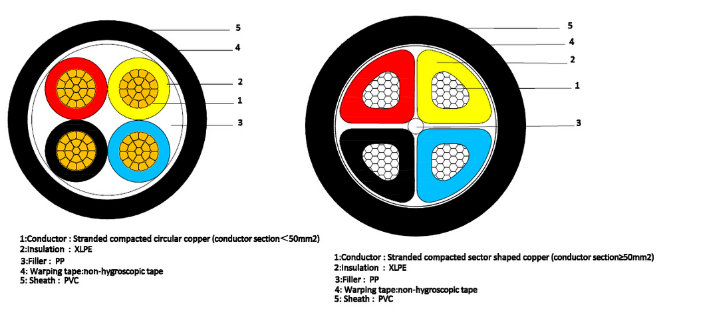

YJV VV 3x16+1x10mm² Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
Product Overview

High-quality multicore power cable featuring stranded copper conductors, XLPE insulation, and low smoke halogen-free LSZH sheath for safe and reliable power transmission applications.

YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
Technical Specifications
Type Insulated
Rated Voltage 600/1000V
Conductor Material Copper
Insulation Material XLPE
Conductor Type Stranded
Application Underground
Core Configuration 3x16+1x10mm²
Jacket Material LSZH
Package Wooden
Delivery Time 15-30 days
Detailed Specifications Table
Type Specification Outer diameter of conductor Nominal thickness of insulation Nominal sheath thickness Approx. outer diameter of cable Approx. Weight of cable Ampacity of cable (Air) Ampacity of cable (Soil)
YJV CU/XLPE/LSZH 3×16+1×10 CC 4.8/3.8 0.7/0.7 1.8 18.6 730.9 90 110
Key Features
  • Conductors: Copper or aluminum options available
  • Both armored and non-armored type power cables available
  • Voltage rating: 0.6/1kV
  • XLPE Insulated for superior performance
  • Complies with international standards: IEC, BS, ASTM, NFC, AS, GOST
  • Maximum long-time operating temperature: PVC 70°C, XLPE 90°C
  • Minimum installation temperature: 0°C
  • Maximum short-circuit temperature: PVC 160°C, XLPE 250°C (not more than 5 seconds)
  • Permitted bending radius: Not less than 12 times the external diameter of cable
Packaging & Shipping
YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable

Products are securely packaged in wooden reels to ensure safe transportation and delivery within 15-30 days.
