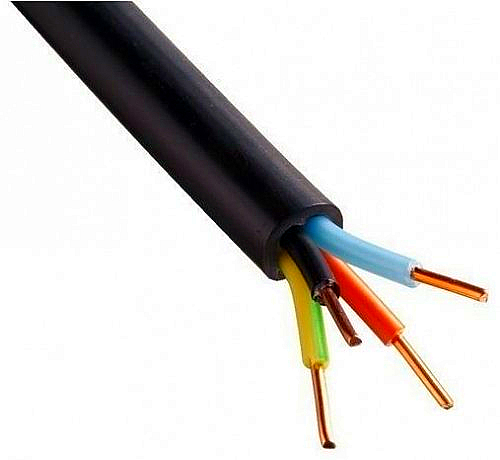

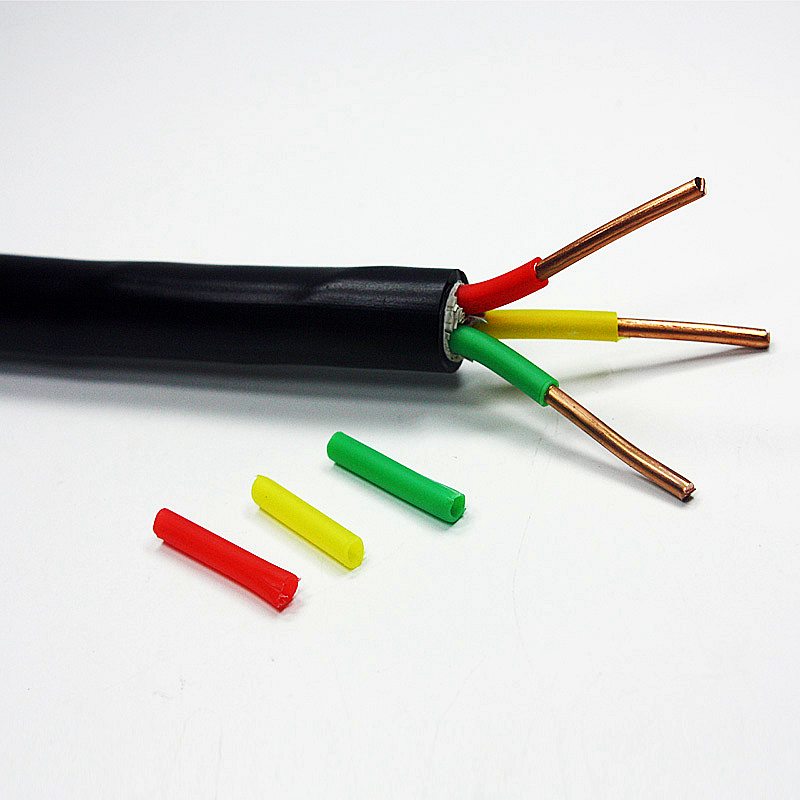

AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
Specifications
Free Smaple :
Available
Packaging Details :
Wooden Drum
Outer Sheath :
PVC
Price :
0.1-5
Origin :
Hebei, China
Core :
3 Cores
Certification :
ISO,CE,IEC,TUV,KEMA
Supply Ability :
100KM/Week
Delivery Time :
5-8 Days
Armor :
Steel Tape Armored
Brand Name :
Minfeng
Model Number :
AC Power Cable 3Core
Place of Origin :
Hebei, China
Standards :
IEC 60502-1
MOQ :
100m
Conductor Type :
Copper
Payment Terms :
L/C,T/T
Insulation :
PVC
Description
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
Product Specifications
Conductor Material Copper
Insulation Material PVC
Jacket PVC
Application Underground
Type Low Voltage
Place of Origin Hebei, China
Model Number PVC Cable 3 Core
Brand Name OEM
Certificate ISO9001/CCC
Standard IEC60502
Rated Voltage 0.6/1KV
Core Multi-core
Color Black
Applications
These cables are designed for power lines of fixed routing in wind tower installation, also used as energy supply cables installed in underground, water, cable ducts, power stations, outdoors, indoors, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not expected.
Standards Compliance
  • IEC 60502
  • DIN VDE 0276 part 603
Cable Construction
  • Conductor: Stranded copper conductor according to IEC60228/VDE 0295
  • Insulation: PVC
  • Filling: Filling compound over the core assembly
  • Sheath: PVC
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
Technical Data
Rated Voltage Uo/U (Um) 0.6/1kV
Operating Temperatures flexing: -5℃~+50℃; fixed: -40℃~+70℃
Minimum Bending Radius Single Core: 15×OD; Multicore:12×OD
Maximum Permissible Tensile Load 50N/mm²
Short-circuit Temperature 160℃
Flame Retardant IEC 60332-1/VDE 0482-332-1-2
Silicone Free Yes
Dimensions and Weight
Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm² mm kg/km
1×25 rm 13 380
1×35 rm 14 447
1×50 rm 15 650
1×70 rm 17 864
3×1.5 re 12 223
4×1.5 re 13 256
5×1.5 re 14 293
7×1.5 re 15 360
3×2.5 re 13 272
4×2.5 re 14 316
5×2.5 re 15 323
7×2.5 re 16 450
3×4 re 15 373
4×4 re 16 439
5×4 re 17 510
3×6 re 16 466
4×6 re 17 547
5×6 re 19 640
3×10 re 18 629
4×10 re 19 743
5×10 re 21 899
3×16 re 20 850
4×16 re 22 1039
5×16 re 23 1240
3×25 rm/16 re 25 1595
4×25 rm 27 1620
3×35 sm/16 re 27 1718
4×35 sm 27 1916
3×50 sm/25 sm 31 2383
4×50 sm 31 2639
3×70 sm/35 sm 33 3196
4×70 sm 35 3576
3×95 sm/50 sm 38 4271
4×95 sm 40 4746
3×120 sm/70 sm 41 5281
4×120 sm 43 5813
3×150 sm/70 sm 46 6408
4×150 sm 48 7263
3×185 sm/95 sm 50 7909
4×185 sm 53 8905
3×240 sm/120 sm 57 10162
4×240 sm 60 11430
AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use AC Power Cable 3Core BS6746 PVC Copper Conductor Low Voltage 0.6/1KV 1.5mm 2.5mm 4mm Electrical Cable for Underground Use
Packaging & Shipping
Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:
Tianjin, Qingdao, or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF quotation are all available.
For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
