Specifications
Delivery Time :
5-8 Days
No Of Core :
4 core
Certification :
ISO,CE,IEC,TUV,KEMA
Conductor material :
Aluminum
Operating Temperature :
90°C
Brand Name :
Minfeng
Supply Ability :
100KM/Week
Sheath material :
PVC
Model Number :
Underground Black Al Power Cable
Payment Terms :
L/C,T/T
Insulation material :
Cross-Linked Polyethylene (XLPE)
MOQ :
100m
Price :
0.1-5

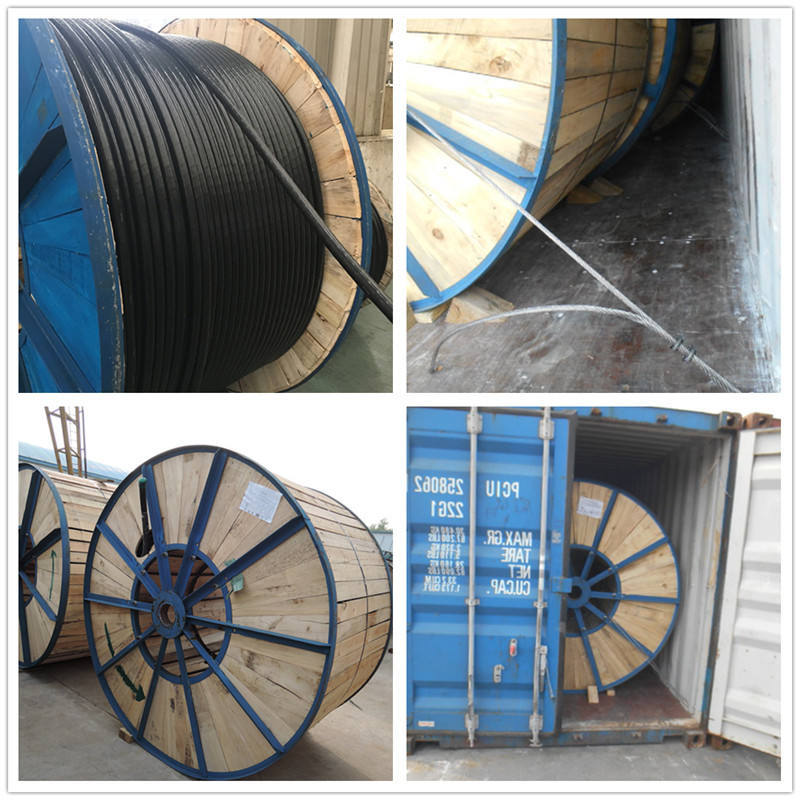

Packing Style :
Steel/ Wooden Drum
Place of Origin :
Hebei, China
Packaging Details :
Wooden Drum
Voltage rating :
0.6/1kV
Description
4x120 4x150mm² 4 Cores 3 Phase Aluminum Electric Cable Wire Underground Black Al Power Cable 0.6-1kV XLPE Insulation Material
Product Overview

These cables are designed for power lines of fixed routing in wind tower installation, also used as energy supply cables installed in underground, water, cable ducts, power stations, outdoors, indoors, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not expected.

Key Specifications
Conductor Material: Aluminum
Insulation Material: XLPE
Jacket: PVC
Application: Underground
Type: Low Voltage
Place of Origin: Hebei, China
Model Number: 4x185mm² Cable
Brand Name: Minfeng OR OEM
Certificate: ISO9001/CCC
Standard: IEC60502
Rated Voltage: 0.6/1KV
Core: Multi-core
Color: Black
Cable Construction
  • Conductor: Stranded Aluminum
  • Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
  • Filler: Polypropylene filament with lapped binding tape
  • Binder: Binding tape
  • Sheath: Polyvinyl chloride (PVC)
4x120 4x150mm2 4 Cores 3 Phase Aluminum Electric Cable Wire Underground Black Al Power Cable 0.6-1kV XLPE Insulation Material
Operating Features
Temperature Specifications
  • Maximum conductor operating temperature: 90°C (XLPE) / 70°C (PVC)
  • During short circuit (lasting less than 5 seconds): Maximum temperature not above 250°C (XLPE) / 160°C (PVC)
  • Environment temperature should be no lower than 0°C for laying the cable
Bending Radius
  • Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
  • Multi-core Cable: Non Armored Cable 15D, Armored Cable 12D
  • Note: D means practical external diameter of the cable
Technical Parameters
Cable Type: 0.6/1kV-4 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section (mm²) Thickness of Insulation (mm) Thickness of Sheath (mm) Approx. overall Diameter (mm) Approx. weight (kg/km) Max. DC resistance of conductor(20℃) (Ω/km) Current carrying capacity In Air(A) Current carrying capacity In Ground(A)
4X100.71.818.63003.085066
4X160.71.821.04001.916585
4X250.91.824.95701.2087110
4X350.91.828.37100.868105130
4X501.01.828.48500.641130160
4X701.12.033.111600.443165195
4X951.12.137.115200.320205235
4X1201.22.240.818980.253240265
4X1501.42.445.223690.206270300
4X1851.62.652.129250.164315340
4X2401.72.857.837000.125375395
4X3001.83.063.545800.100435445
4X4002.03.370.958000.0778510510
Quality & Standards

Our company can produce both flame retardant and non-flame retardant series of PVC power cable. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards stated above.
