Specifications
Usage :
Power Distribution and so on.
Place of Origin :
Hebei, China
Outer Sheath :
PVC
Price :
0.1-5
Packaging Details :
Wooden Drum
Model Type :
35KV UD CABLE
Certification :
ISO,CE,IEC,TUV,KEMA
MOQ :
100m
Standard :
ANSIIICEA S94-649 - AEIC CS-8 - ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231
Supply Ability :
100KM/Week
Payment Terms :
L/C,T/T
Minimum Order :
500 m
Delivery Time :
5-8 Days
Model Number :
35KV UD CABLE
Operating Temperature :
-15°C to +90°C
Conductor Material :
Aluminum
Brand Name :
Minfeng
Description
35kV Primary Cable UD Jacketed (TR-XLPE) UD/LLDPE Cable Aluminum XLPE /LLDPE
Product Overview

URD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight. To be used at 15kV up to 35kV at conductor temperatures not to exceed 90°C for normal operation.

Key Specifications
Type Insulated
Rated Voltage 35KV
Conductor Material Copper or Aluminum
Insulation Material TR-XLPE
Conductor Type Stranded
Application Underground
Core 1 Core
Size 250MCM/127sqmm
Jacket PE
Delivery Time 15-60 days
35kV Primary Cable UD Jacketed (TR-XLPE) UD/LLDPE Cable Aluminum XLPE /LLDPE
Standards Compliance

TRXLPEMLP insulated URD cables meet or exceed all applicable requirements of the following standards:

  • ANSI/ICEA S94-649
  • AEIC CS-8
  • ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231
Cable Construction
35kV Primary Cable UD Jacketed (TR-XLPE) UD/LLDPE Cable Aluminum XLPE /LLDPE
  • Conductor: Bare aluminum or copper, stranded class B compressed stranding
  • Conductor Shield: Extruded semi-conducting compound
  • Insulation: TRXLP (Tree Retardant XLPE) or XLPE
  • Insulation Shield: Extruded semi-conducting compound
  • Concentric Neutral: Uncoated copper concentric neutral wires (coated copper optional)
  • Encapsulated Jacket: Non-conducting LLDPE embedded jacket with extruded red stripes
  • Optional: PVC or semi-conducting jacket available upon request
Technical Data Sheet

Primary UD Cable 100% TR-XLPE Insulated 1/3 Concentric Neutral 35KV Cable

AWG or MCM Stranding Number of Wires Size AWG (Solid) Conductor Diameter (inch) Over Insulation Diameter (inch) Over Neutral Wires Diameter (inch) Over Encaps. Jkt. Diameter (inch) Conductor Weight (Pounds) Concentric Neutral Weight (Pounds) Total Weight (Pounds) Total With Jacket Weight (Pounds)
1/019 wire9140.371.121.231.35325.8119.26594926
2/019 wire11140.421.171.271.40410.9146.3775808
3/019 wire14140.471.221.321.48518.1185.9900923
4/019 wire11120.531.281.381.54653.3228.011101055
25037 wire13120.571.331.441.64771.9282.113301292
35037 wire12100.681.441.541.701081398.016331519
50037 wire17100.811.571.721.881544543.520021886
75061 wire25100.991.761.932.112316801.526502289
100061 wire33101.141.922.062.273088105838472960

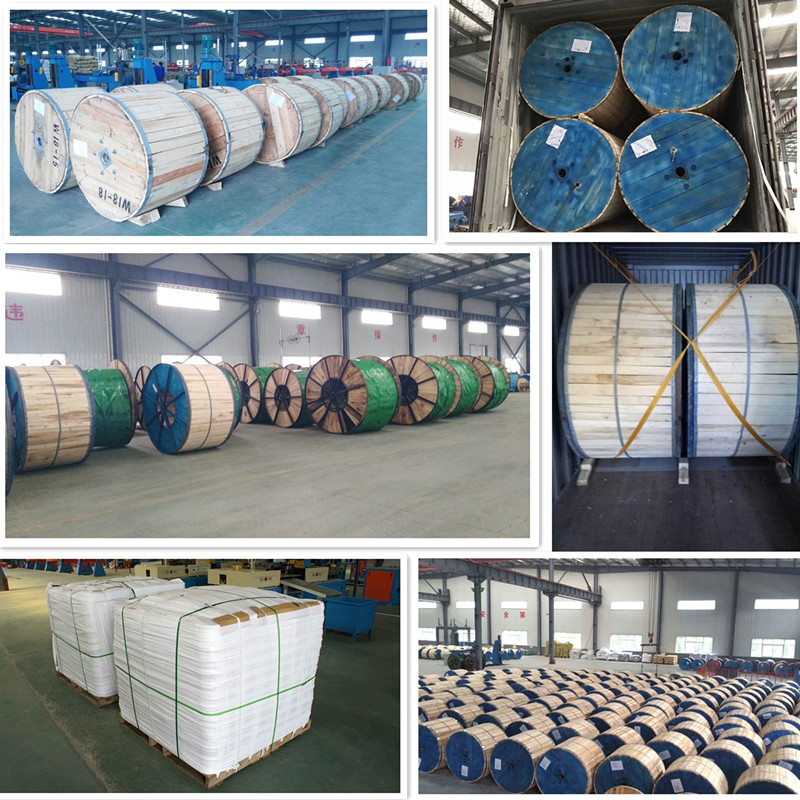

Packaging & Shipping
35kV Primary Cable UD Jacketed (TR-XLPE) UD/LLDPE Cable Aluminum XLPE /LLDPE
  • Packaging Details: Wooden drums, steel wooden drums or as per customer requirements
  • Delivery Time: Normally within 7 days (depending on order quantity)
Contact Information

Looking forward to cooperation with you. If you have any questions or need our certification and samples, please contact us freely via email or chat software.
