Specifications
Keywords :
CABLE HFG DE
Sample :
Available
Cable Jacket :
PVC
Model Number :
CABLE HFG DE
Packaging Details :
Wooden Drum
Temperature :
+90°C
Brand Name :
Minfeng
Certification :
ISO,CE,IEC,TUV,KEMA
Supply Ability :
100KM/Week
Price :
0.1-5
Voltage Rating :
1kV
Insulation :
XLPE
Payment Terms :
L/C,T/T
Place of Origin :
Hebei, China
Delivery Time :
5-8 Days
MOQ :
100m
Description

Key attributes


Rated Voltage
1000V
Size
1.5-300sqmm
Conductor Material
Copper
Insulation Material
XLPE
Working Temperature
70°C
Jacket
PVC
Type
Low Voltage
Place of Origin
China
Usage
power transmission
Core
single or multi CORES
Size
1.5-300sqmm
Standard
IEC 60502-1
Jacket
Flame retardant PVC
Package
Wooden drum
Delivery time
15days
Rated Temperature
+90°C
Product name
cable HFG CABLE
Armour type
double steel tape armored

CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized TWO Steel Tape Insulated for Power Stations

Cable HFG DE Application

Steel tape cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Cable HFG DE

Standards:


IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

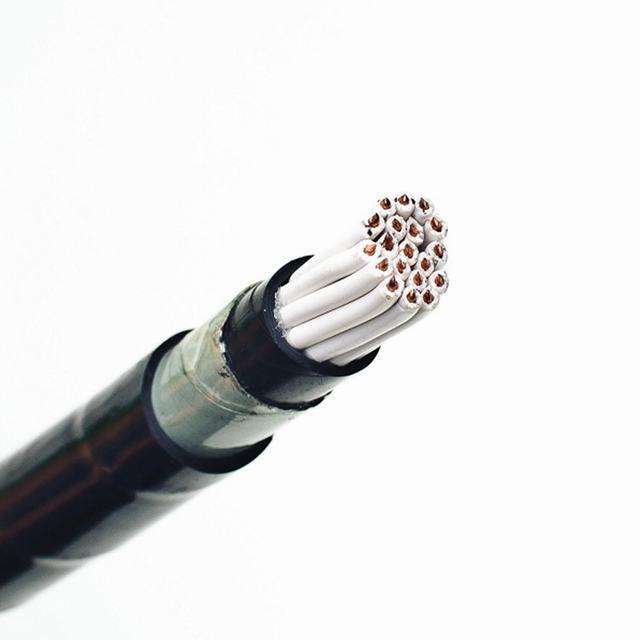

CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V


CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000VCABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000VCABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000VCABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000VCABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000VCABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V

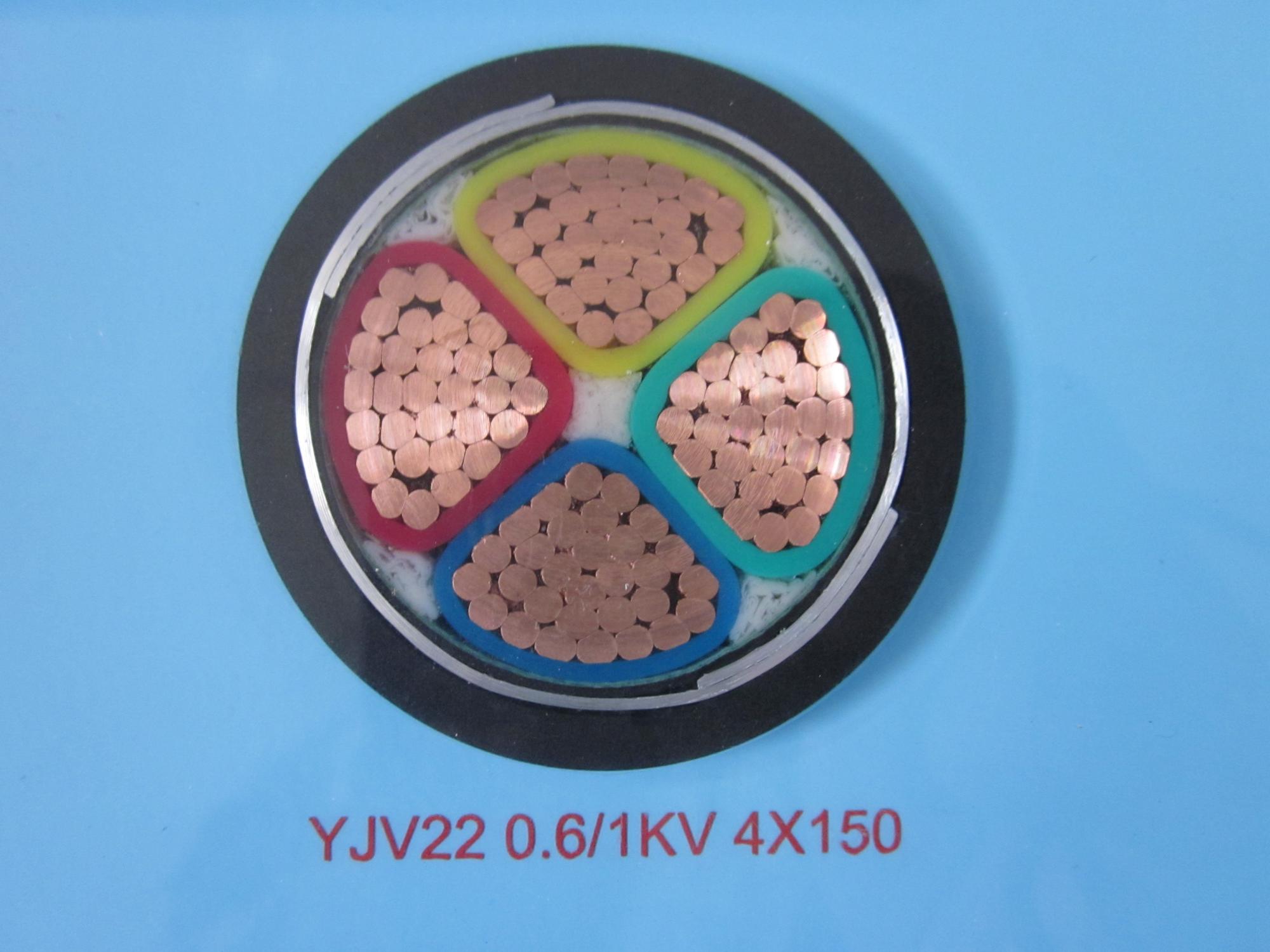

CONSTRUCTION :

DTA Cable Construction

CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V
TECHNICAL DATA :

Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Temperature Rating:
Flexed: 5°C to +90°C
Fixed: -35°C to +90°C
Maximum Short Circuit Temperature:
+250°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter

PARAMETER :
0.6/1kV-1 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor(20℃) Current carrying capacity
mm2 mm mm mm mm kg/km OHM/km In Air(A) In Ground(A)
1X10 0.7 0.2 1.8 11.8 244.0 1.83 75 47
1X16 0.7 0.2 1.8 12.9 318.0 1.15 97 62
1X25 0.9 0.2 1.8 14.6 430.0 0.727 125 78
1X35 0.9 0.2 1.8 15.2 533.0 0.524 155 94
1X50 1.0 0.2 1.8 16.7 668.0 0.387 190 110
1X70 1.1 0.2 1.8 18.5 893.0 0.268 245 135
1X95 1.1 0.2 1.8 20.1 1157.0 0.193 300 160
1X120 1.2 0.2 1.8 21.7 1410.0 0.153 350 185
1X150 1.4 0.2 1.8 23.7 1705.0 0.124 400 205
1X185 1.6 0.2 1.8 25.7 2082.0 0.0991 460 235
1X240 1.7 0.2 1.8 28.0 2652.0 0.0754 - -
1X300 1.8 0.2 1.9 31.0 3259.0 0.0601 - -
1X400 2.0 0.2 2.0 35.0 4135.0 0.047 - -









0.6/1kV-2 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor(20℃) Current carrying capacity
mm2 mm mm mm mm kg/km ohm/km In Air(A) In Ground(A)
2X2.5 0.7 0.2 1.8 13.4 230 7.41 - 45
2X4 0.7 0.2 1.8 14.3 277 4.61 - 59
2X6 0.7 0.2 1.8 15.3 336 3.08 - 74
2X10 0.7 0.2 1.8 17.8 452 1.83 64 100
2X16 0.7 0.2 1.8 20.0 609 1.15 83 135
2X25 0.9 0.2 1.8 23.3 845 0.727 110 165
2X35 0.9 0.2 1.8 24.6 1065 0.524 135 200
2X50 1.0 0.2 1.8 27.2 1297 0.387 165 240
2X70 1.1 0.2 1.9 31.4 1775 0.268 210 295
2X95 1.1 0.2 2.0 35.5 2340 0.193 260 355
2X120 1.2 0.5 2.2 40.2 3238 0.153 305 405
2X150 1.4 0.5 2.3 44.2 3971 0.124 345 455
2X185 1.6 0.5 2.5 48.9 4845 0.0991 396 515









0.6/1kV-3 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor(20℃) Current carrying capacity
mm2 mm mm mm mm kg/km ohm/km In Air(A) In Ground(A)
3X2.5 0.7 0.2 1.8 13.9 265 7.41 - 35
3X4 0.7 0.2 1.8 14.8 328 4.61 - 50
3X6 0.7 0.2 1.8 16.0 410 3.08 - 60
3X10 0.7 0.2 1.8 18.6 560 1.83 64 85
3X16 0.9 0.2 1.8 21.0 775 1.15 83 110
3X25 0.9 0.2 1.8 24.6 1098 0.727 110 140
3X35 0.9 0.2 1.8 26.0 1410 0.524 135 170
3X50 1.0 0.2 1.9 28.9 1780 0.387 165 200
3X70 1.1 0.2 2.0 33.9 2475 0.268 210 245
3X95 1.1 0.5 2.2 39.0 3260 0.193 260 300
3X120 1.2 0.5 2.3 42.7 4477 0.153 305 335
3X150 1.4 0.5 2.4 47.5 5440 0.124 345 380
3X185 1.6 0.5 2.6 52.1 6707 0.0991 395 430
3X240 1.7 0.5 2.8 58.3 8533 0.0754 465 500
3X300 1.8 0.5 2.9 63.6 10455 0.0601 535 565









0.6/1kV-4 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor(20℃) Current carrying capacity
mm2 mm mm mm mm kg/km ohm/km In Air(A) In Ground(A)
4X2.5 0.7 0.2 1.8 14.7 308 7.41 - 35
4X4 0.7 0.2 1.8 15.8 388 4.61 - 50
4X6 0.7 0.2 1.8 17.0 488 3.08 - 60
4X10 0.7 0.2 1.8 20.0 681 1.83 64 85
4X16 0.9 0.2 1.8 22.7 960 1.15 83 110
4X25 0.9 0.2 1.8 26.7 1375 0.727 110 140
4X35 0.9 0.2 1.8 28.3 1779 0.524 135 170
4X50 1.0 0.2 2.1 32.0 2296 0.387 165 200
4X70 1.1 0.5 2.1 38.5 3175 0.268 210 245
4X95 1.1 0.5 2.3 42.9 4665 0.193 260 300
4X120 1.2 0.5 2.4 47.4 5728 0.153 305 335
4X150 1.4 0.5 2.6 52.3 6999 0.124 345 380
4X185 1.6 0.5 2.7 57.5 8657 0.0991 395 430
4X240 1.7 0.5 3.0 64.3 11000 0.0754 465 500
4X300 1.8 0.5 3.1 70.3 13587 0.0601 535 565









0.6/1kV-5 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor(20℃) Current carrying capacity
mm2 mm mm mm mm kg/km ohm/km In Air(A) In Ground(A)
5X2.5 0.7 0.2 1.8 15.6 350 7.41 - 35
5X4 0.7 0.2 1.8 16.8 447 4.61 - 50
5X6 0.7 0.2 1.8 18.2 569 3.08 - 60
5X10 0.7 0.2 1.8 21.6 805 1.83 64 85
5X16 0.7 0.2 1.8 24.6 1150 1.15 83 110
5X25 0.9 0.2 1.8 29.0 1655 0.727 110 140
5X35 0.9 0.2 1.9 31.0 2166 0.524 135 170
5X50 1.0 0.2 2.1 35.7 2945 0.387 165 200
5X70 1.1 0.5 2.3 42.4 4453 0.268 210 245
5X95 1.1 0.5 2.4 47.2 5862 0.193 260 300
5X120 1.2 0.5 2.6 51.8 7176 0.153 305 335
5X150 1.4 0.5 2.7 57.6 8770 0.124 345 380
5X185 1.6 0.5 2.9 63.8 10827 0.0991 395 430
5X240 1.7 0.5 3.2 70.7 13770 0.0754 465 500
5X300 1.8 0.5 3.4 78.0 16960 0.0601 535 565









0.6/1kV-3+1 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor(20℃) Current carrying capacity
mm2 mm mm mm mm kg/km ohm/km In Air(A) In Ground(A)
3X4+1X2.5 0.7/0.7 0.2 1.8 15.5 368 4.61/7.41 - 50
3X6+1X4 0.7/0.7 0.2 1.8 16.8 465 3.08/4.61 - 60
3X10+1X6 0.7/0.7 0.2 1.8 19.3 633 1.83/3.08 64 85
3X16+1X10 0.7/0.7 0.2 1.8 22.1 890 1.15/1.83 83 110
3X25+1X16 0.9/0.7 0.2 1.8 25.1 1272 0.727/1.15 110 140
3X35+1X16 0.9/0.7 0.2 1.8 26.8 1583 0.524/1.15 135 170
3X50+1X25 1/0.9 0.2 1.9 30.2 2030 0.387/0.727 165 200
3X70+1X35 1.1/0.9 0.2 2.0 35.1 2810 0.268/0.524 210 245
3X95+1X50 1.1/1.0 0.5 2.2 40.4 4135 0.193/0.387 260 300
3X120+1X70 1.2/1.1 0.5 2.3 45 5135 0.153/0.268 305 335
3X150+1X70 1.4/1.1 0.5 2.5 49.1 6120 0.124/0.268 345 380
3X185+1X95 1.6/1.1 0.5 2.8 54.3 7616 0.0991/0.193 395 430
3X240+1X120 1.7/1.2 0.5 2.8 59.1 9679 0.0754/0.153 465 500
3X300+1X150 1.8/1.4 0.5 3.0 66 11889 0.0601/0.124 535 565









0.6/1kV-4+1 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor(20℃) Current carrying capacity
mm2 mm mm mm mm kg/km ohm/km In Air(A) In Ground(A)
4X4+1X2.5 0.7/0.7 0.2 1.8 16.3 434 4.61/7.41 - 50
4X6+1X4 0.7/0.7 0.2 1.8 17.7 549 3.08/4.61 - 60
4X10+1X6 0.7/0.7 0.2 1.8 20.3 759 1.83/3.08 64 85
4X16+1X10 0.7/0.7 0.2 1.8 24 1079 1.15/1.83 83 110
4X25+1X16 0.9/0.7 0.2 1.8 28.1 1557 0.727/1.15 110 140
4X35+1X16 0.9/0.7 0.2 1.9 29.6 1962 0.524/1.15 135 170
4X50+1X25 1/0.9 0.2 2.0 34 2601 0.387/0.727 165 200
4X70+1X35 1.1/0.9 0.5 2.2 40.3 3916 0.268/0.524 210 245
4X95+1X50 1.1/1.0 0.5 2.3 44.8 5260 0.193/0.387 260 300
4X120+1X70 1.2/1.1 0.5 2.6 50.2 6545 0.153/0.268 305 335
4X150+1X70 1.4/1.1 0.5 2.8 54.6 7780 0.124/0.268 345 380
4X185+1X95 1.6/1.1 0.5 2.9 60.5 9688 0.0991/0.193 395 430
4X240+1X120 1.7/1.2 0.5 3.0 67.1 12253 0.0754/0.153 465 500
4X300+1X150 1.8/1.4 0.5 3.2 73.7 15078 0.0601/0.124 535 565









0.6/1kV-3+2 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor(20℃) Current carrying capacity
mm2 mm mm mm mm kg/km ohm/km In Air(A) In Ground(A)
3X4+2X2.5 0.7/0.7 0.2 1.8 16.6 412 4.61/7.41 - 50
3X6+2X4 0.7/0.7 0.2 1.8 18 525 3.08/4.61 - 60
3X10+2X6 0.7/0.7 0.2 1.8 20.9 714 1.83/3.08 64 85
3X16+2X10 0.7/0.7 0.2 1.8 24 1016 1.15/1.83 83 110
3X25+2X16 0.9/0.7 0.2 1.8 28.1 1465 0.727/1.15 110 140
3X35+2X16 0.9/0.7 0.2 1.9 29.6 1769 0.524/1.15 135 170
3X50+2X25 1/0.9 0.2 2.0 34 2316 0.387/0.727 165 200
3X70+2X35 1.1/0.9 0.5 2.2 40.3 3230 0.268/0.524 210 245
3X95+2X50 1.1/1.0 0.5 2.3 44.8 4766 0.193/0.387 260 300
3X120+2X70 1.2/1.1 0.5 2.5 50.2 6080 0.153/0.268 305 335
3X150+2X70 1.4/1.1 0.5 2.6 54.6 7005 0.124/0.268 345 380
3X185+2X95 1.6/1.1 0.5 2.8 60.5 8767 0.0991/0.193 395 430
3X240+2X120 1.7/1.2 0.5 3.0 67.1 11105 0.0754/0.153 465 500
3X300+2X150 1.8/1.4 0.5 3.2 73.7 13645 0.0601/0.124 535 565


Send your message to this supplier
Send Now

CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V

Ask Latest Price
Product Detail
Keywords :
CABLE HFG DE
Sample :
Available
Cable Jacket :
PVC
Model Number :
CABLE HFG DE
Packaging Details :
Wooden Drum
Temperature :
+90°C
Contact Supplier
CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V
CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V
CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V
CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V
CABLE HFG DE U1000 RVFV/HFG Copper Conductor XLPE Insulated Galvanized Double Steel Tape Armored PVC Jacket 1000V

Minfeng Cable Group Co., Ltd

Verified Supplier
1 Years
hubei, wuhan
Since 2008
Business Type :
Manufacturer, Exporter
Main Products :
XLPE Insulated Power Cable, PVC Insulated Cables, Armoured Cable
Total Annual :
3000000000-3500000000
Employee Number :
300~400
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products XLPE Insulated Power Cable
MachineU China Products Minerals & Metallurgy Carbon Steel Coated Flat Steel Products Corrugated Galvanized Steel Sheets
Contact Supplier
Submit Requirement
