Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Specifications
Model Number :
Aluminium Conductor Cable
Market :
africa or southeast asia
Payment Terms :
L/C,T/T
Price :
0.1-5
Usage :
Power Distribution
Certification :
ISO,CE,IEC,TUV,KEMA
No Of Core :
4
MOQ :
100m
Delivery Time :
5-8 Days
Working Temperature :
90°C
Supply Ability :
100KM/Week
Brand Name :
Minfeng
Packing Style :
Steel wooden Drum
Place of Origin :
Hebei, China
Jacket :
PVC
Packaging Details :
Wooden Drum
Description
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Product Overview

Industrial power cable designed for underground applications with aluminum conductors, XLPE insulation, and PVC jacket.

Key Specifications
Rated Voltage 0.6 kV, 1 kV
Conductor Material Aluminum
Insulation Material XLPE
Working Temperature 90°C
Jacket PVC
Application Underground
Type Low Voltage
Certificate ISO9001/CCC
Standard IEC60502-1

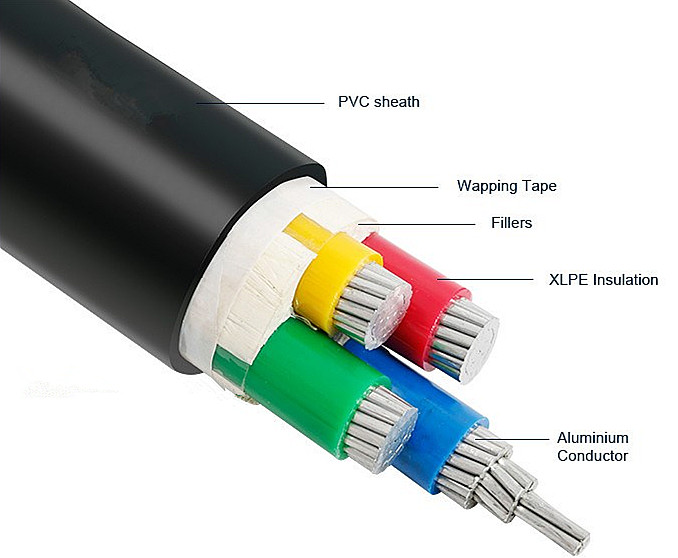

Cable Construction
  • Conductor: Stranded Aluminum
  • Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
  • Filler: Polypropylene filament with lapped binding tape
  • Binder: Binding tape
  • Sheath: Polyvinyl chloride (PVC)
Cable Operating Features
  • Maximum conductor operating temperature: 90°C (XLPE) / 70°C (PVC)
  • Short circuit maximum temperature (less than 5 seconds): 250°C (XLPE) / 160°C (PVC)
  • Minimum environment temperature for laying: 0°C
  • Bending Radius:
    • Single Core Cable: Non Armored 20D, Armored 15D
    • Multi-core Cable: Non Armored 15D, Armored 12D
    Note: D means practical external diameter of the cable
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable
Technical Parameters
0.6/1kV 3-Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
No. of cores and nominal cross section (mm²) Thickness of Insulation (mm) Thickness of Sheath (mm) Approx. overall Diameter (mm) Approx. weight (kg/km) Max. DC resistance of conductor(20℃) (Ω/km) Current carrying capacity In Air(A) Current carrying capacity In Ground(A)
3X100.71.817.22503.085066
3X160.71.819.43301.916585
3X250.91.822.84801.2087110
3X350.91.825.05800.868105130
3X501.01.824.46700.641130160
3X701.11.929.49100.443165195
3X951.12.033.611700.320205235
3X1201.22.135.914600.253240265
3X1501.42.339.918200.206270300
3X1851.62.444.122000.164315340
3X2401.72.651.128500.125375395
3X3001.82.756.135000.100435445
3X4002.03.062.445000.0778510510
0.6/1kV 4-Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
No. of cores and nominal cross section (mm²) Thickness of Insulation (mm) Thickness of Sheath (mm) Approx. overall Diameter (mm) Approx. weight (kg/km) Max. DC resistance of conductor(20℃) (Ω/km) Current carrying capacity In Air(A) Current carrying capacity In Ground(A)
4X100.71.818.63003.085066
4X160.71.821.04001.916585
4X250.91.824.95701.2087110
4X350.91.828.37100.868105130
4X501.01.828.48500.641130160
4X701.12.033.111600.443165195
4X951.12.137.115200.320205235
4X1201.22.240.818980.253240265
4X1501.42.445.223690.206270300
4X1851.62.652.129250.164315340
4X2401.72.857.837000.125375395
4X3001.83.063.545800.100435445
4X4002.03.370.958000.0778510510
Covered Aluminum XLPE YJV Cable 4x95-240mm 0.6/1KV Underground PVC Jacket Industrial Power Cable

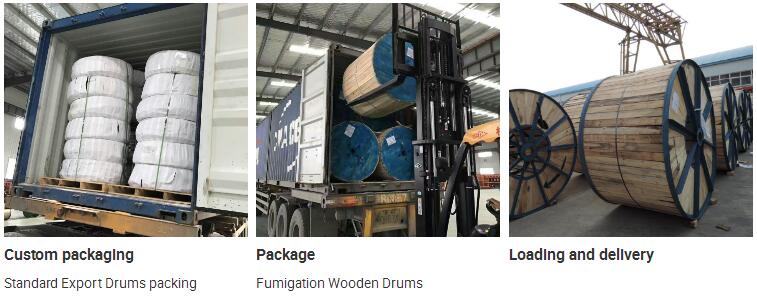

Packaging & Shipping
Packing
  • Steel wooden drum (fumigation)
  • Cable length in each drum: 1000m/2000m or as per actual cable length requirements
  • Drum size: As per cable length and container size

In order to quote accurate price, kindly specify your required cable length quantity. Larger quantities receive more discount benefits!

Shipping Port

Tianjin, Qingdao, or other ports as per your requirements.

Sea Freight

FOB/C&F/CIF quotations are all available.

For some countries such as African countries and Middle East countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
