Specifications
Brand Name :
Minfeng
Place of Origin :
Hebei, China
Price :
0.1-5
Operating Temp :
-40° C to +90° C
Standard compliance :
IEC 60502-1
Delivery Time :
5-8 Days
Voltage rating :
1000v
Conductor :
Bare Copper
Transport Package :
Wooden Steel Drum
Cable Length :
10m-1000m
Model Number :
U1000 HFG CABLE
Supply Ability :
100KM/Week
Sheath Material :
PVC
Payment Terms :
L/C,T/T
Packaging Details :
Wooden Drum
Certification :
ISO,CE,IEC,TUV,KEMA
MOQ :
100m
Product name :
U1000 HFG CABLE
Description
U1000 HFG CABLE Double Steel Tape Armored Power/Control Cable
Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V Rated Power/Control Cable
Product Specifications
Rated Voltage1000V
Conductor MaterialBare Copper
Insulation MaterialXLPE
Core ConfigurationSingle or Multi Cores
Size Range1.5-630mm²
StandardIEC 60502-1
JacketFlame Retardant PVC
Armour TypeDouble Steel Tape Armored
Rated Temperature+90°C
Place of OriginChina
UsagePower Transmission
PackageWooden
Delivery Time15 Days
Application
Steel tape cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.
U1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V RatedU1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V RatedU1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V RatedU1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V RatedU1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V RatedU1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V RatedU1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V Rated

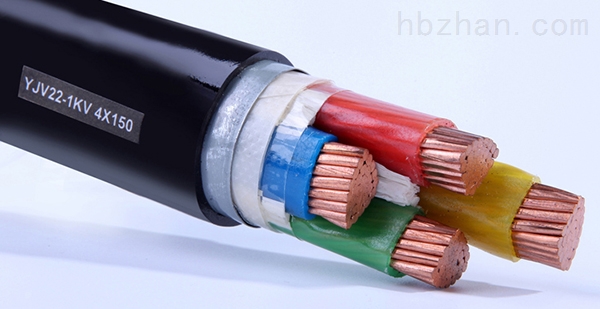

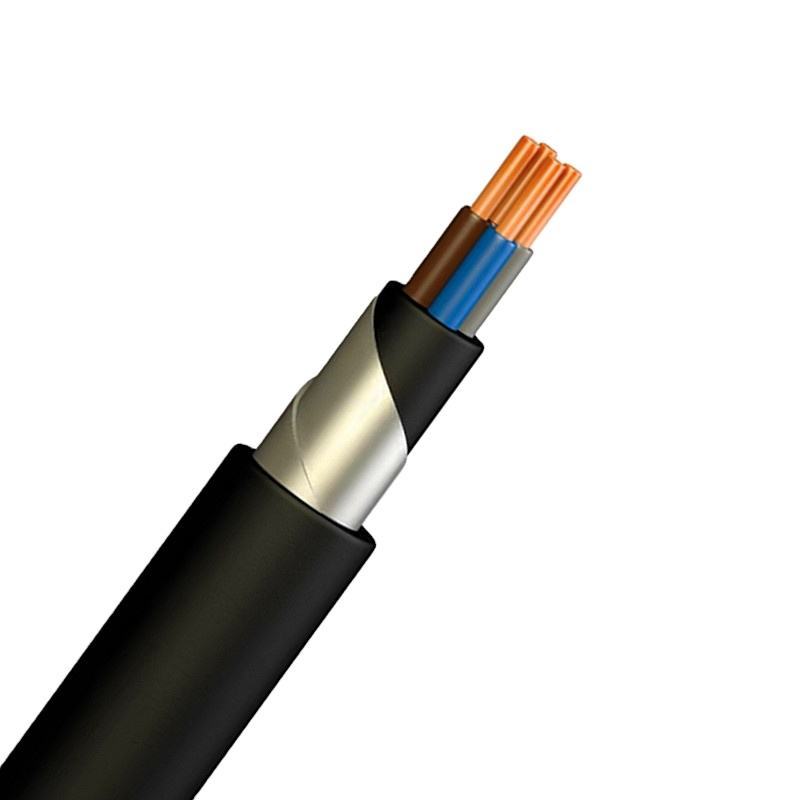

HFG Cable Construction
U1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V Rated
Technical Data
Voltage Rating Uo/U (Um): 0.6/1 (1.2)kV
Nominal Voltage DC: 1.8/1.8kV (core-earth/core-core)
Test Voltage: 4kV
Temperature Rating:
Flexed: 5°C to +90°C
Fixed: -35°C to +90°C
Maximum Short Circuit Temperature: +250°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
Technical Parameters
Cross Section mm²Insulation Thickness mmArmour Thickness mmMinimum Sheath Thickness mmMaximum Overall Diameter mmApprox Cable Weight kg/km
2x1.50.70.21.311.5230
2x2.50.70.21.312.5275
2x40.70.21.413.5330
2x60.70.21.415.5430
2x100.70.21.416.5555
2x160.70.21.519770
2x250.90.21.622.51080
2x350.90.21.7251390
3x1.50.70.21.312255
3x2.50.70.21.313305
3x40.70.21.414380
3x60.70.21.416500
3x100.70.21.517.5665
3x160.70.21.520930
3x250.90.21.6241325
3x350.90.21.726.51720
3x500.90.21.8292125
3x701.10.2234.53080
3x951.10.52.1404505
3x1201.20.52.344.55540
3x1501.40.52.448.56655
3x1851.60.52.553.58150
3x2401.70.52.76110575
3x3001.80.52.966.513055

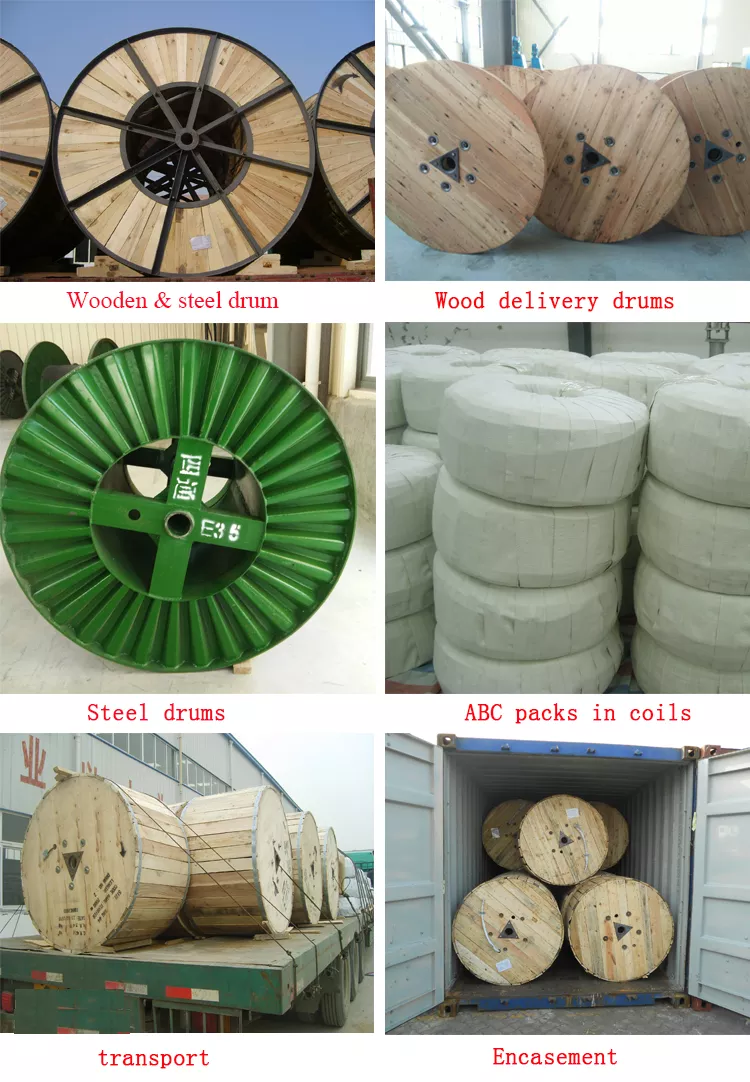

Packaging & Shipping
U1000 HFG CABLE Double Steel Tape Armored Power/Control Cable Flame Retardant PVC Jacket IEC 60502-1 Standard 1000V Rated
All cables are carefully packaged on wooden reels to ensure protection during transportation and storage, with delivery typically completed within 15 days.
