XLPE Insulated ABC Cable with Aluminum Conductor for 0.6/1 kV Overhead Power Lines
XLPE Insulated ABC Cable with Aluminum Conductor for 0.6/1 kV Overhead Power Lines
XLPE Insulated ABC Cable with Aluminum Conductor for 0.6/1 kV Overhead Power Lines
XLPE Insulated ABC Cable with Aluminum Conductor for 0.6/1 kV Overhead Power Lines
Specifications
Cable Application :
Industrial
Model Number :
FR-N1XD4-AR
Armouring :
Steel Tape or Steel Wire
Delivery Time :
5-8 Days
Cable Standard :
HD 626 S1, NF C33-209, JUS N.C5.250
MOQ :
100m
Price :
0.1-5
Cable Type :
XLPE Insulated ABC Power Cable
Payment Terms :
L/C,T/T
Place of Origin :
China
Voltage :
0.6/1 kV
Certification :
ISO,CE,IEC,TUV,KEMA
Conductor :
Aluminum
Brand Name :
Minfeng
Supply Ability :
100KM/Week
Description
FR-N1XD4-AR (X00-A) FR-N1XD9-AR (X00/0-A) Low-voltage Overhead Lines ABC Cable XLPE Insulated Aerial Bundled Cables
Product Overview

Aerial Bundled Cables designed for distributive low overhead networks in urban, suburban, and rural areas. Ideal for supplying remote facilities, villages, and above-ground house connections of both temporary and permanent character.

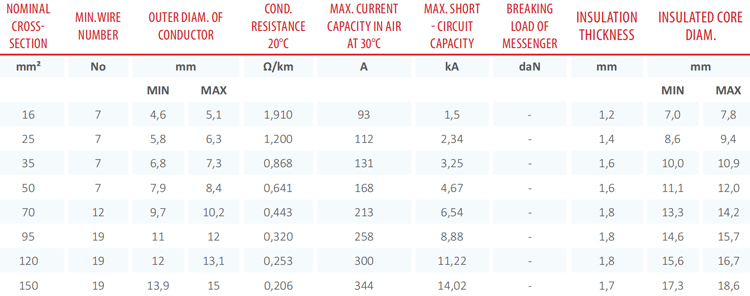

Key Specifications
Rated Voltage 0.6/1 kV
Size Range 16-150mm²
Conductor Material Aluminum
Insulation Material XLPE
Working Temperature 90°C
Application Industrial
Type Low Voltage
Model Number FR-N1XD4-AR (X00-A)
Brand Name Minfeng
Place of Origin Hebei, China
Standards HD 626 S1, NF C33-209, JUS N.C5.250
Construction Details
  • Phase conductor: Circular compacted Al rope, class 2
  • Neutral conductor: Circular compacted Al or Al alloy rope, class 2
  • Insulation: XLPE compound
Technical Characteristics
  • CPR Class: Fca
  • Test voltage: 4 kV
  • Rated voltage: 0.6/1 kV
  • Maximum conductor temperature: 90°C
  • Maximum short-circuit temperature: 250°C
Applications & Markets

Suitable for transmission and distribution power networks in Bosnia and Herzegovina, Croatia, France, Montenegro, North Macedonia, Serbia, and Slovenia.
