3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
Specifications
Number Of Cores :
3 Core
Payment Terms :
L/C,T/T
Packaging Details :
Wooden Drum
MOQ :
100
Amour :
Steel wire
Delivery Time :
5-8 Days
Temperature Rating :
90°C (maximum operating temperature)
Supply Ability :
100KM/Week
Jacket :
PVC
Conductor :
Aluminum
Cable Length :
1m-5000m
Brand Name :
Minfeng
Price :
0.1-5
Transport Package :
Wooden Steel Drum
Model Number :
Armoured Cable Aluminum
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Hebei, China
Product name :
XLPE Insulated Power Cable
Description
3 Core Steel Wire Armoured Cable AL/XLPE/SWA/PVC Low Voltage 0.6/1kV
Product Overview

3 Core Aluminum Armoured Cable designed for underground electricity supply in low voltage installation systems, compliant with IEC60502 Standard.

Key Specifications
Rated Voltage 600/1000V
Size 3*42mm²
Conductor Material Aluminum
Insulation Material XLPE
Working Temperature 90°C
Jacket PVC
Application Underground
Type Low Voltage
Standard IEC60502
Certificate ISO9001/CCC
Cable Applications

These cables are used for electricity supply in low voltage installation systems. They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, and industrial plants where there is no risk of mechanical damage.

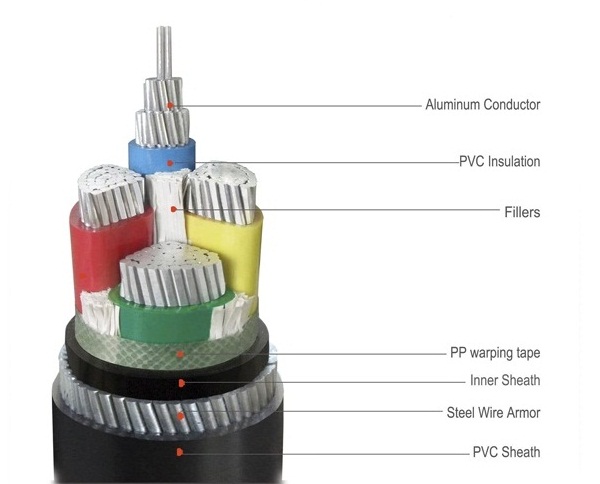

Cable Construction
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
  • Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
  • Insulation: Cross-linked polyethylene XLPE
  • Filler: Non-hygroscopic material
  • Binder tape: Non-hygroscopic material
  • Inner sheath: Polyvinyl chloride PVC
  • Armour: Low carbon steel wire
  • Binder tape: Non-hygroscopic material
  • Outer sheath: Polyvinyl chloride PVC
Technical Parameters
Nominal cross sectional area (mm²) Insulation thickness (mm) Steel Wire diameter (mm) Sheath thickness (mm) Approximate outer diameter (mm) Approx. weight (kg/km) Max.D.C resistance of conductor(20℃) (Ω/km) Current carrying capacity In Air(A) Current carrying capacity In Ground(A)
3X2.50.70.81.815.34057.412027
3X40.70.81.816.24814.612636
3X60.71.251.818.36963.083345
3X100.71.251.820.99301.834660
3X160.71.251.823.311911.155977
3X250.91.61.827.617450.7277798
3X350.91.61.82921000.52495119
3X5011.61.932.526280.387119144
3X701.122.137.937280.268151175
3X951.122.241.846920.193186210
3X1201.222.345.556450.153217242
3X1501.42.52.551.373500.124245270
3X1851.62.52.755.986980.0991284305
3X2401.72.52.962.1108370.0754336350
3X3001.82.5367.4129900.0601389396

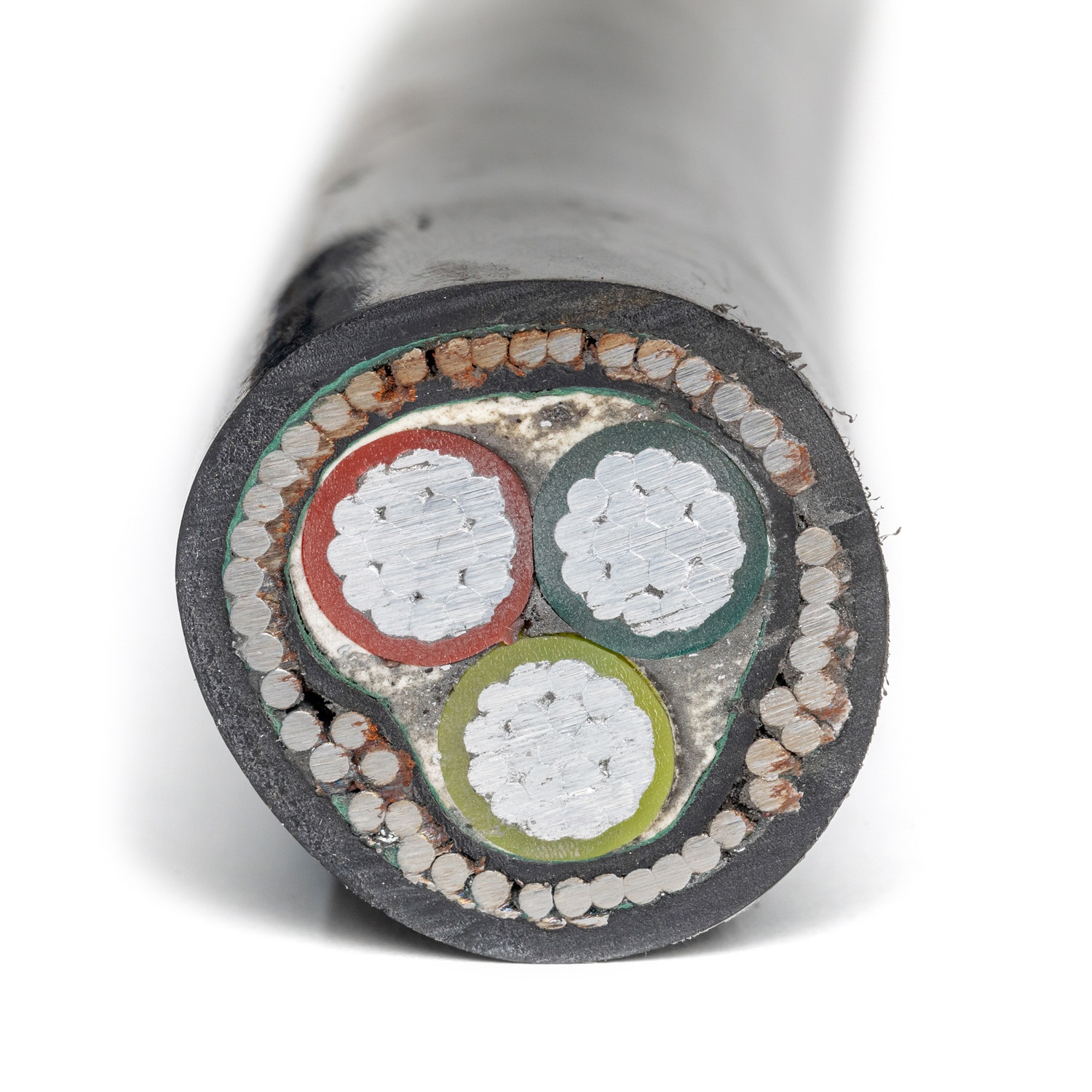

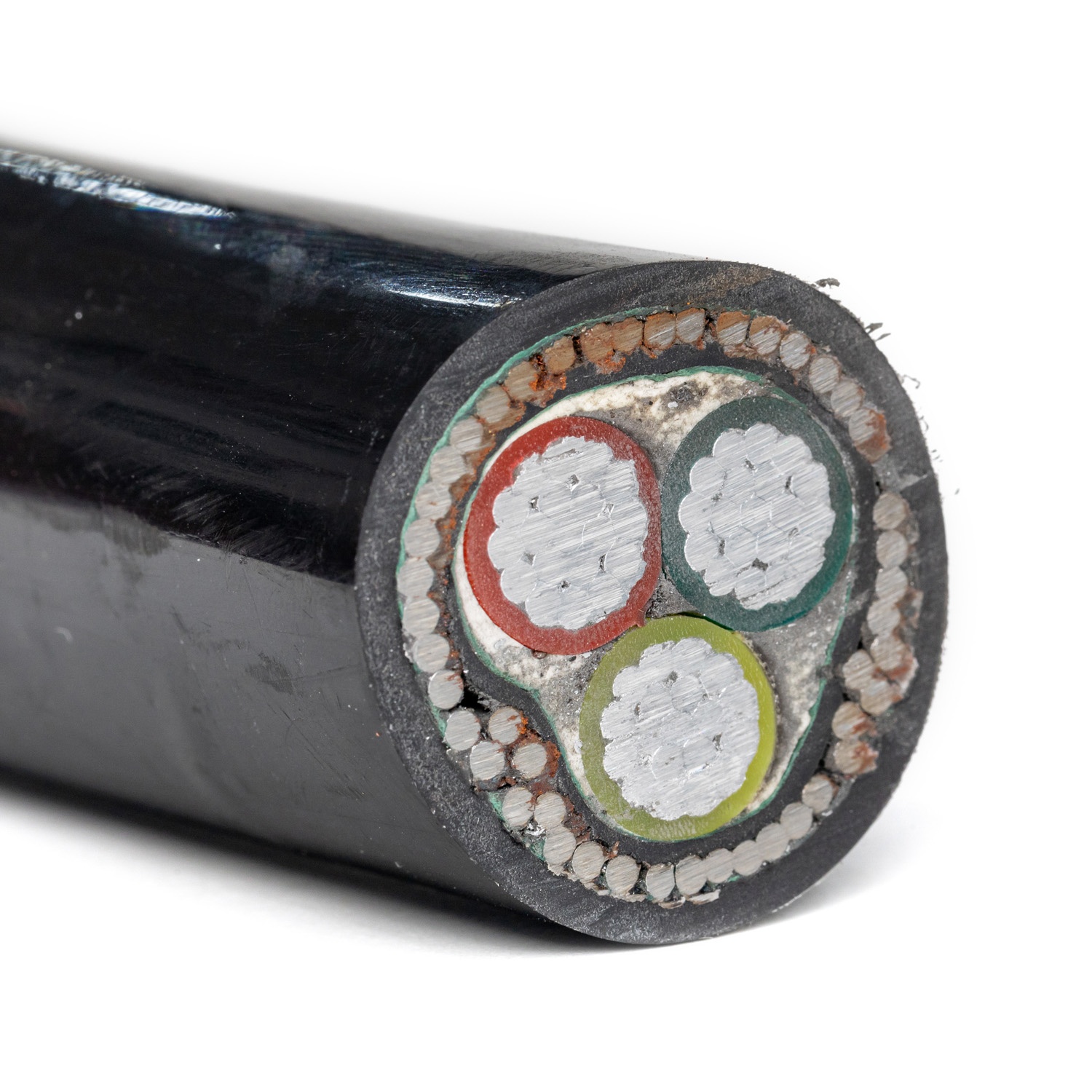

Product Images
3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground 3 Core Steel Wire Armoured Cable 3*42mm2 3*100mm2 3*240mm2 AL/XLPE/SWA/PVC Low Voltage 0.6/1kV IEC60502 Standard Underground
Packaging & Shipping

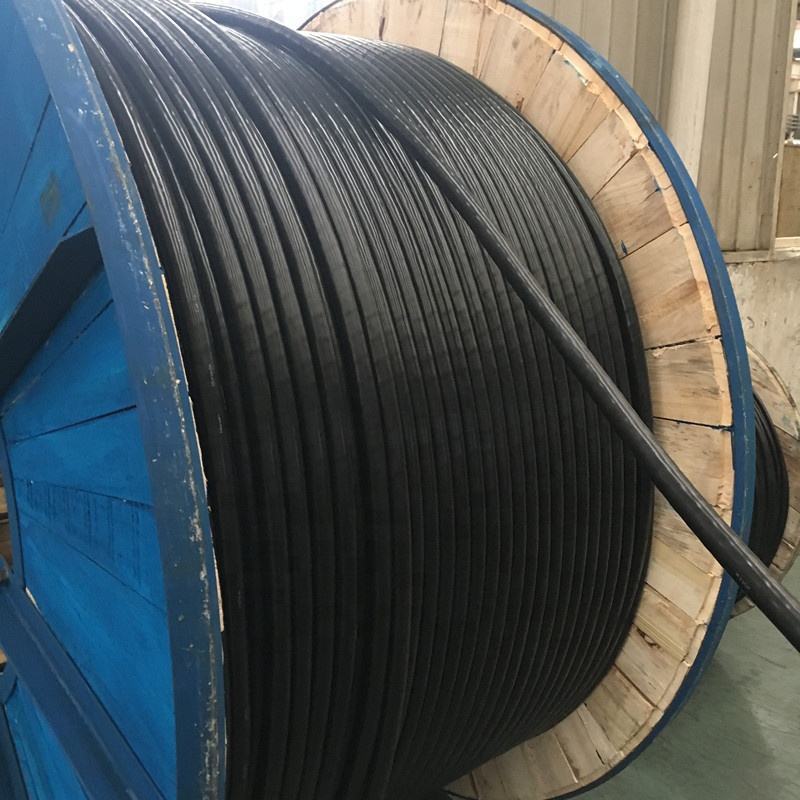

Packing
  • Steel wooden drum (fumigation)
  • Cable length in each drum: 1000m/2000m or as per actual cable length requirements
  • Drum size: As per cable length and container size

In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port

Tianjin, Qingdao, or other ports as per your requirements.

Sea Freight

FOB/C&F/CIF quotation are all available.

For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
