YXC7VY2V 20.3/35 KV XLPE Insulated Armoured Cable with Copper Conductor Single Core for Industrial Use
YXC7VY2V 20.3/35 KV XLPE Insulated Armoured Cable with Copper Conductor Single Core for Industrial Use
YXC7VY2V 20.3/35 KV XLPE Insulated Armoured Cable with Copper Conductor Single Core for Industrial Use
YXC7VY2V 20.3/35 KV XLPE Insulated Armoured Cable with Copper Conductor Single Core for Industrial Use
Specifications
Supply Ability :
100KM/Week
Insulation :
XLPE
Conductor Material :
Copper
MOQ :
100m
Packing :
Steel wooden drum
Certification :
ISO,CE,IEC,TUV,KEMA
Armour :
Armoured
Place of Origin :
China
Brand Name :
Minfeng
Payment Terms :
L/C,T/T
Price :
0.1-5
Delivery Time :
5-8 Days
Temperaturerating :
Up to 90°C
Cable Type :
YXC7VY2V 20.3/35 KV Cable
Model Number :
YXC7VY2V
Packaging Details :
Wooden Drum
Description
YXC7VY2V 20.3/35 KV XLPE Insulated Cable Single Core Armoured Cables with Copper Conductor
YXC7VY2V 20.3/35 KV XLPE Insulated Armoured Cable with Copper Conductor Single Core for Industrial Use
Product Overview

YXC7VY2V 20.3/35 KV XLPE insulated single core armoured cables with copper conductor, designed for energy networks with sudden load changes and low dielectric losses.

Technical Specifications
Parameter Specification
Rated Voltage 20.3/35 KV
Conductor Cross-section 240mm²
Conductor Material Copper
Insulation Material XLPE
Working Temperature 90°C
Type Medium Voltage
Standard TSEK
Model Number YXC7VY2V
Brand Name Minfeng
Place of Origin Hebei, China
Application

These cables with low dielectric losses are used in energy networks with sudden load changes. Suitable for installation in residential or industrial areas, underground or in ducts.

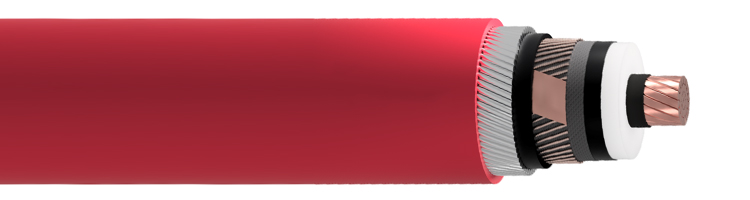

Cable Construction
  1. Conductor: Copper
  2. Conductor screen: Semi-conducting compound (XLPE)
  3. Insulation: XLPE
  4. Insulation screen: Semi-conducting compound (XLPE)
  5. Semi-conducting tape: Crape tape
  6. Metallic screen: Concentric / Copper wires + copper tape
  7. Separation Sheath: PVC
  8. Armour: Round aluminium wires
  9. Outer sheath: PVC
Technical Characteristics
Construction Characteristics
  • Armour type: Single layer of aluminium wires
  • Conductor flexibility: Class 2
  • Type of conductor: Circular, stranded, class 2
Dimensional Characteristics
  • Number of cores: 1
  • Conductor cross-section: 240 mm²
  • Average insulation thickness: 8.5 mm
  • Nominal outer sheath thickness: 2.7 mm
Electrical Characteristics
  • Rated Voltage Uo/U (Um): 20.3 / 35 kV
Usage Characteristics
  • Operating temperature range: -20 ... 90 °C
  • Short-circuit max. conductor temperature: 250 °C
  • Flame retardant: IEC 60332-3 Cat. C
  • Bending factor when laying: 12 (xD)
  • Max. conductor temperature in service: 90 °C
