Specifications
Supply Ability :
100KM/Week
Temperature Rating :
90°C (maximum operating temperature)
Brand Name :
Minfeng
Packaging Details :
Wooden Drum
Origin :
Hebei, China
MOQ :
100m
Delivery Time :
5-8 Days
Outer Sheath :
PVC
Cable Type :
XLPE Insulated Power Cable
Price :
0.1-5
Cable Mark :
Ink Printing or Embossing
Certification :
ISO,CE,IEC,TUV,KEMA
Payment Terms :
L/C,T/T
Model Number :
U1000 RVFV X1AV
Place of Origin :
Hebei, China
Rated Voltage :
0.6/1kV
Armor :
Steel Tape Armored
Description
U1000 RVFV X1AV XLPE Insulated Aluminum/Steel Tape Armored Cable
Product Overview

Industrial power cable with XLPE insulation and aluminum/steel tape armor, compliant with IEC60502-1, EN60228, ICEA S73-532, and IEC/EN 60332-1 standards.

Key Specifications
TypeInsulated
Rated Voltage1000V
Conductor MaterialOxygen-Free Copper
Insulation MaterialXLPE
Working Temperature0°C ~ 90°C
Conductor TypeStranded
ApplicationUnderground
Armour TypeAluminum/Steel Tape
StandardsIEC60502-1 EN60228 ICEA S73-532 IEC/EN 60332-1
CertificationIEC CE ISO CCC
U1000 RVFV X1AV XLPE Insulated Aluminum/Steel Tape Armored Cable IEC60502-1 EN60228 ICEA S73-532IEC/EN 60332-1
Applications

These U-1000 RVFV cables are suitable for direct burial without additional protection or for installation on cable trays or in ducts where mechanical protection is necessary.

Standards Compliance
  • NF C 32-322
  • Flame Retardant according to NF C 32-070 C2, IEC 60332-1-2
  • Reaction to fire CPR: Eca, according to EN 50575

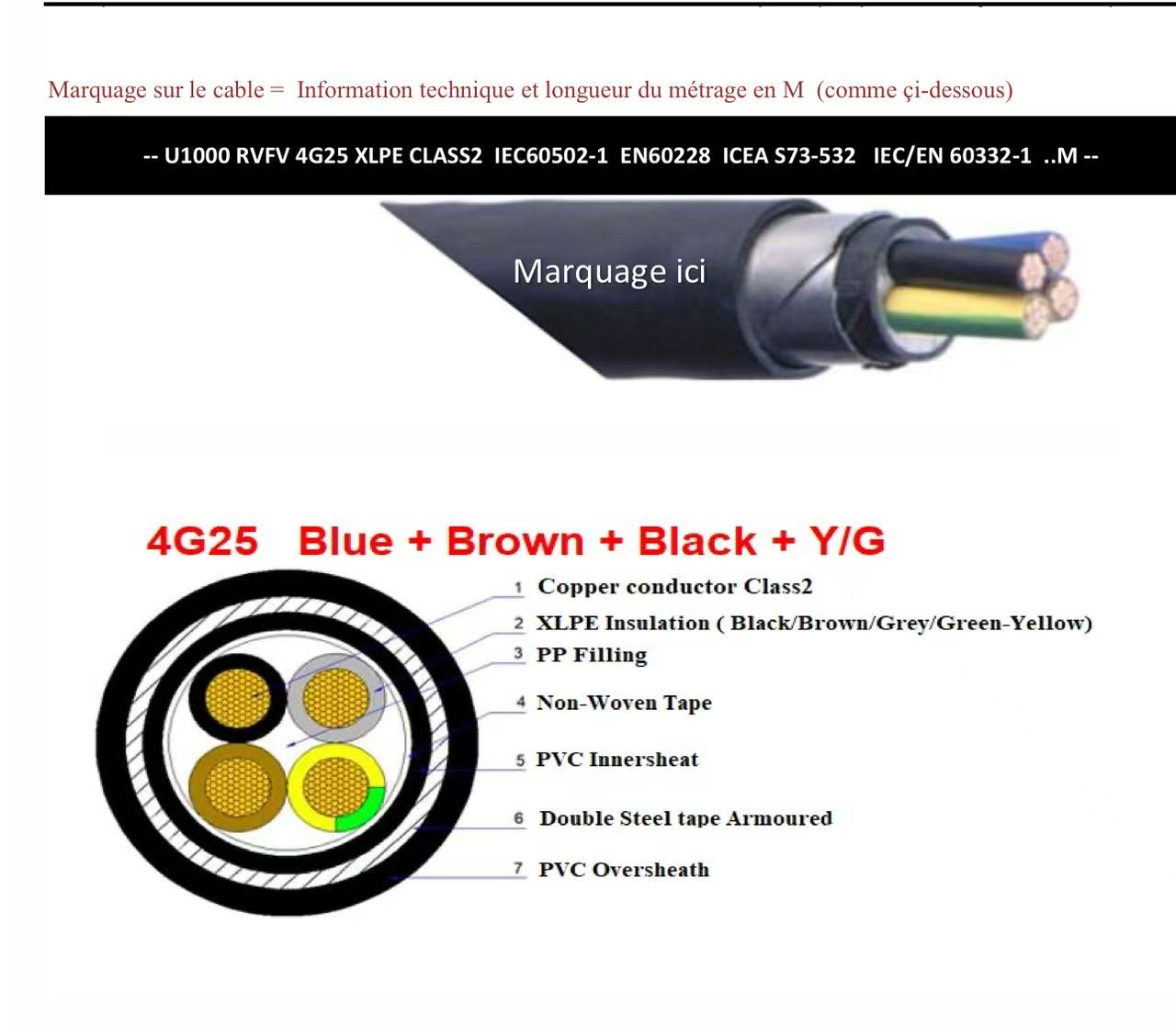

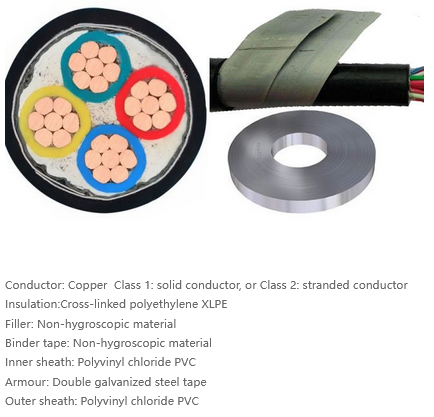

Cable Construction
U1000 RVFV X1AV XLPE Insulated Aluminum/Steel Tape Armored Cable IEC60502-1 EN60228 ICEA S73-532IEC/EN 60332-1U1000 RVFV X1AV XLPE Insulated Aluminum/Steel Tape Armored Cable IEC60502-1 EN60228 ICEA S73-532IEC/EN 60332-1
  • Conductor: 1.5mm² to 4mm²: Class 1 solid copper conductor | 6mm² and above: Class 2 stranded copper conductor
  • Insulation: Cross-linked polyethylene (XLPE) insulation type XLPE according to IEC 60502-1
  • Armour bedding: Black extruded PVC separation sheath
  • Armour: Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables
  • Outer sheath: Flexible PVC outer sheath, Black colour
Conductor Identification
  • 1 x Natural
  • 2 x Blue + Brown
  • 3 G Blue + Brown + Green/Yellow
  • 3 x Brown + Black + Grey
  • 3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)
  • 4 G Brown + Black + Grey + Green/Yellow
  • 4 x Brown + Black + Grey + Blue
  • 5 G Brown + Black + Grey + Blue + Green/Yellow
  • 6 or more Black numbered + Green/Yellow
Performance Characteristics
Electrical Performance

Low voltage 0.6/1kV

Thermal Performance
  • Maximum service temperature: 90°C
  • Maximum short-circuit temperature: 250°C (max. 5 s)
  • Minimum service temperature: -40°C (fixed and protected installations)
Fire Performance
  • Flame non-propagation according to EN 60332-1 and IEC 60332-1
  • Reduced halogen emission. Chlorine <15%
Mechanical Performance
  • Minimum bending radius: x5 cable diameter
  • Impact resistance: AG2 Medium severity
Environmental Performance
  • Chemical & Oil resistance: Good
  • UV Resistant: UNE 211605
Installation Conditions
  • Open Air
  • Buried
  • In conduit
Technical Parameters
Cross Section mm²Insulation Thickness mmArmour Thickness mmMinimum Sheath Thickness mmMaximum Overall Diameter mmApprox Cable Weight kg/km
2x1.50.70.21.311.5230
2x2.50.70.21.312.5275
2x40.70.21.413.5330
2x60.70.21.415.5430
2x100.70.21.416.5555
2x160.70.21.519770
2x250.90.21.622.51080
2x350.90.21.7251390
3x1.50.70.21.312255
3x2.50.70.21.313305
3x40.70.21.414380
3x60.70.21.416500
3x100.70.21.517.5665
3x160.70.21.520930
3x250.90.21.6241325
3x350.90.21.726.51720
3x500.90.21.8292125
3x701.10.2234.53080
3x951.10.52.1404505
3x1201.20.52.344.55540
3x1501.40.52.448.56655
3x1851.60.52.553.58150
3x2401.70.52.76110575
3x3001.80.52.966.513055
