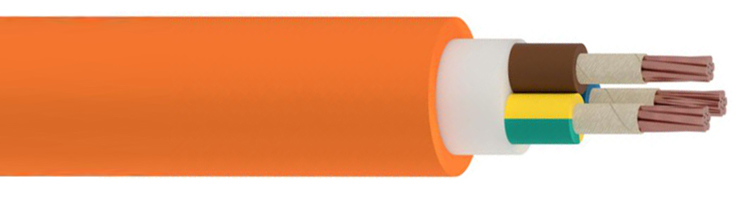

N2XH FE 180 0.6/1KV Multi Core Fire Resistant Cable with XLPE Insulation and Low Smoke Halogen Free
N2XH FE 180 0.6/1KV Multi Core Fire Resistant Cable with XLPE Insulation and Low Smoke Halogen Free
N2XH FE 180 0.6/1KV Multi Core Fire Resistant Cable with XLPE Insulation and Low Smoke Halogen Free
N2XH FE 180 0.6/1KV Multi Core Fire Resistant Cable with XLPE Insulation and Low Smoke Halogen Free
Specifications
Transport Package :
Wooden Steel Drum
Voltage :
0.6/1KV
Model Number :
N2XH FE 180
Delivery Time :
5-8 Days
Application :
Industrial
Place of Origin :
Hebei, China
Payment Terms :
L/C,T/T
Insulation :
XLPE
Jacket :
LSZH
Certification :
ISO,CE,IEC,TUV,KEMA
Trademark :
Minfeng Cable Group
Price :
0.1-5
Packaging Details :
Wooden Drum
Brand Name :
Minfeng
MOQ :
100m
Supply Ability :
100KM/Week
Description
N2XH FE 180 0.6/1KV Multi Core Mica Tape XLPE Insulation Low Smoke Halogen Free Fire Resistant Cables
N2XH FE 180 0.6/1KV Multi Core Fire Resistant Cable with XLPE Insulation and Low Smoke Halogen Free
N2XH FE 180 / IEC 60331 Fire-resistant, multi-core, single or multi-wire copper conductor power cables, halogen-free and fire-safe. Thanks to their low smoke density, non-flame propagating properties and no corrosive gas emissions for protecting life and property in case of fire.
Product Specifications
Rated Voltage 0.6/1kV
Size Range 1.5-240mm²
Conductor Material Copper
Insulation Material XLPE + Mica Tape
Working Temperature 90°C
Jacket Material LSZH (Low Smoke Zero Halogen)
Application Industrial
Standard IEC 60331-21
Model Number N2XH FE 180
Applications
Used in energy networks, refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, and business centers where there is a risk of fire.
Technical Characteristics
  • Rated Voltage Uo/U (Um): 0.6/1 kV
  • Operating temperature range: -20°C to +60°C
  • Short-circuit max. conductor temperature: 250°C
  • Flame retardant: IEC 60332-3 Cat. C
  • Smoke density: IEC 61034
  • Gases corrosivity: IEC 60754-2
  • Fire resistant: IEC 60331-21
  • Max. conductor temperature in service: 90°C
  • Maintains circuit integrity for 180 minutes during fire (FE 180)
Key Features
Ideal for general power supply and distribution in indoor applications. These cables provide enhanced fire safety with low smoke density, non-flame propagating properties, and no corrosive gas emissions to protect life and property in case of fire.
