Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
Specifications
Payment Terms :
L/C,T/T
Origin :
Hebei, China
Temp :
90°C
Place of Origin :
China
Brand Name :
Minfeng
Conductor material :
Copper
Price :
0.1-5
Sample :
Available
Application :
Industrial
Cable Jacket :
CPE
Insulation :
EPDM
Delivery Time :
5-8 Days
Certification :
ISO,CE,IEC,TUV,KEMA
MOQ :
100m
Supply Ability :
100KM/Week
Package :
Steel Wooden Drum
Model Number :
DLO cable
Model No :
DLO cable
Packaging Details :
Wooden Drum
Description
Diesel Locomotive (DLO) Cable 2kv EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable Tinned Copper Conductor
Rated Voltage 2kv Size 12AWG-1111
Conductor Material Copper Insulation Material EPDM
Working Temperature 90°C Jacket CPE
Application Industrial Type Low Voltage
Place of Origin Hebei, China Model Number DLO cable
Brand Name Minfeng Standard UL 44
Product Overview

Developed in the early 1900s, Diesel Locomotive (DLO) cables were designed for wiring diesel-electric locomotive trains. These heavy duty 2kV cables were used as power-leads in traction motors and as open wiring to the diesel electric motors.

Today, due to their rugged construction, these cables are not only used for their original purpose, wiring diesel trains, but are also used in drilling rigs, earth moving equipment, and a variety of other industrial applications.

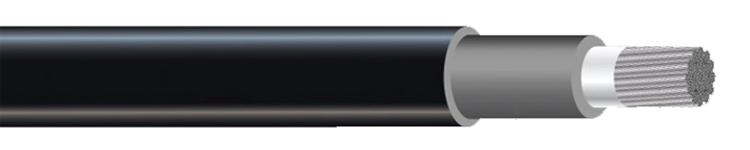

Construction

Heavy-Duty Flexible Power Cable - DLO (HDFPC-DLO) - is manufactured with Flexible Stranded Rope-Lay, Class I Tinned Copper conductor, with a Thermoset Ethylene Propylene Diene Monomer (EPDM) insulation and Thermoset Chlorinated Polyethylene jacket (CPE).

Features
  • Listed as RHH/RHW-2 for 2 kV in sizes 14 AWG through 1111 kcmil as per UL 44
  • Maximum continuous operating temperature: 90°C (normal), 130°C (emergency/overload), 250°C (short circuit)
  • Meets cold bend tests at -40°C as per CSA C22.2 No. 38
  • Oil, heat, flame, abrasion, and sunlight resistant
Specifications and Compliances
  • ASTM B3 Standard Specification for Soft or Annealed Copper Wire
  • ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
  • ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors
  • UL 44 Thermoset-Insulated Wires and Cables
  • UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
  • UL 2806 Heavy Duty Flexible Power Cable (HDFPC-DLO)
  • CSA C22.2 No. 38 Thermoset-Insulated Wires and Cables Type RW90
  • ICEA S-95-658 (NEMA WC70) Power Cables Rated 2kV or Less
  • IEEE 1202 FT4 Flame Test (70,000 BTU/hr Vertical Tray Test)
  • MSHA Approved

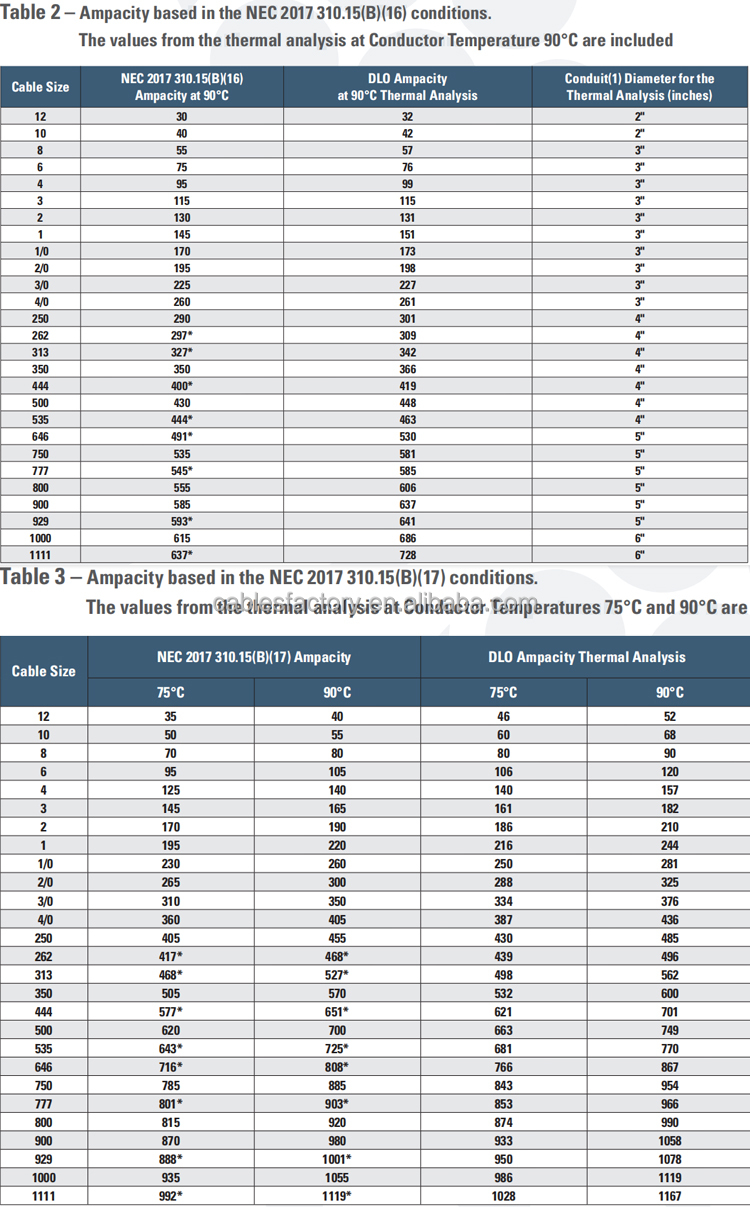

Product Images
Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor Diesel Locomotive Cable 2kV EPDM Insulation CPE Jacket Heavy-Duty Flexible Power Cable with Tinned Copper Conductor
