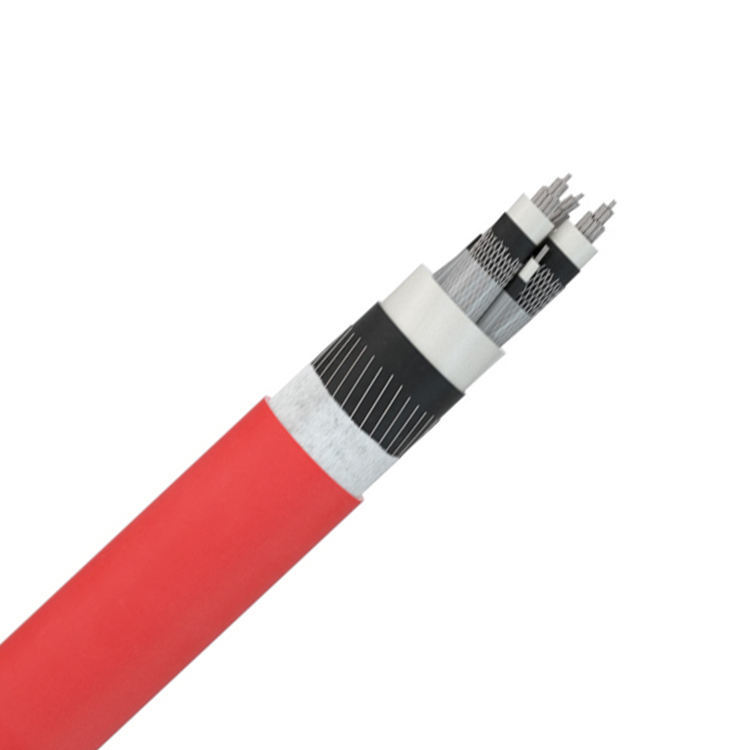

Flexible Medium Voltage Cable TBM (N)TSCGECWHXOEU Cable with 6/10 KV 12/20 KV Copper Conductor and Rubber Insulation
Flexible Medium Voltage Cable TBM (N)TSCGECWHXOEU Cable with 6/10 KV 12/20 KV Copper Conductor and Rubber Insulation
Flexible Medium Voltage Cable TBM (N)TSCGECWHXOEU Cable with 6/10 KV 12/20 KV Copper Conductor and Rubber Insulation
Flexible Medium Voltage Cable TBM (N)TSCGECWHXOEU Cable with 6/10 KV 12/20 KV Copper Conductor and Rubber Insulation
Flexible Medium Voltage Cable TBM (N)TSCGECWHXOEU Cable with 6/10 KV 12/20 KV Copper Conductor and Rubber Insulation
Flexible Medium Voltage Cable TBM (N)TSCGECWHXOEU Cable with 6/10 KV 12/20 KV Copper Conductor and Rubber Insulation
Specifications
Standard :
DIN VDE 0250-813
Samples :
Free
Model No :
TBM (N)TSCGECWHXOEU cable
Conductor material :
Copper
Price :
0.1-5
Insulation material :
rubber 3GI3
Sheath material :
rubber GM1b
Delivery Time :
5-8 Days
MOQ :
100m
Cable type :
Power distribution cable
Payment Terms :
L/C,T/T
Certification :
ISO,CE,IEC,TUV,KEMA
Model Number :
TBM (N)TSCGECWHXOEU
Place of Origin :
China
Product name :
Flexible Medium Voltage Cable
Application :
Industrial
Supply Ability :
100KM/Week
Brand Name :
Minfeng
Description
Flexible Medium Voltage Cable TBM (N)TSCGECWHXOEU Cable 6/10 KV 12/20 KV Reeling Cable
Product Overview

Flexible cable specifically designed for reeling drum of tunnel boring machines (TBM) and general tunnel applications. This medium voltage cable offers exceptional durability and performance in demanding industrial environments.

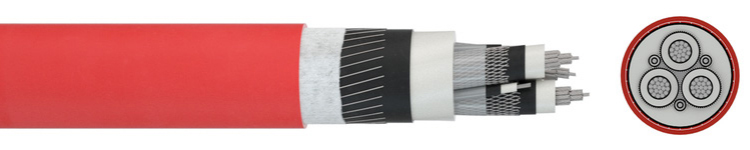

Flexible Medium Voltage Cable TBM (N)TSCGECWHXOEU Cable with 6/10 KV 12/20 KV Copper Conductor and Rubber Insulation
Key Specifications
Rated Voltage 6/10 KV 12/20 KV
Size 62mm
Conductor Material Copper
Insulation Material Rubber 3GI3
Working Temperature -40°C to +80°C
Jacket Rubber GM1b
Application Industrial
Type Medium Voltage
Model Number TBM (N)TSCGECWHXOEU
Standard DIN VDE 0250-813
Technical Features
  • Electrical field control: inner and outer semiconducting rubber layer
  • Pilot conductor: tinned copper conductors with semi-conductive layer
  • Material inner sheath: rubber GM1b
  • Monitoring core: Copper wire over the inner sheath
  • Torsion capability: +/- 25°/m
  • Sheathing material: special EVA based halogen free rubber compound
  • Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2
  • Halogen-free: DIN EN 50267/IEC 60754
  • UV-resistant, Oil-resistant, Ozone-resistant
  • Max. temperature at conductor: 90°C
  • Max. short circuit temperature: 250°C
  • Operating speed: 30 m/min
Product Specifications
Part Name Ø [mm] Cu G [kg]
3X35 + 3X25/3E + 3X2,5ST + 6 UEL KON 58.3 1491 4330
3X50 + 3X25/3E + 3X2.5ST + 6 UEL KON 62 1936 5000
