FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor
FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor
FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor
FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor
FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor
FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor
Specifications
Corporation :
Minfeng cablegroup
Supply Ability :
100KM/Week
Place of Origin :
Hebei, China
Voltage Rating :
18/30kV
Model No :
FR-N20XA8E-AR
Insualtion :
XLPE
Price :
0.1-5
Model Number :
FR-N20XA8E-AR
Delivery Time :
10 Days
MOQ :
100
Sheath Material :
PE
Packing Style :
Steel/ Wooden Drum
Certification :
ISO,CE,IEC,TUV,KEMA
Sample :
Available
Brand Name :
Minfeng
Payment Terms :
L/C,T/T
Description

Key attributes


Rated Voltage
18/30kV
Size
50-800mm2
Conductor Material
Copper
Insulation Material
XLPE
Working Temperature
90°C
Jacket
MDPE
IP Level
/
Application
Industrial
Rated Current
/
Type
Medium Voltage
Place of Origin
Hebei, China
Model Number
FR-N20XA8E-AR
Brand Name
Minfeng
Product name
FR-N20XA8E-AR 18/30kV Cable
Standard
NF C 33-226, IEC 60502-2, EN 60228
Conductor
Class 2 Stranded Copper
Insulation
XLPE (Cross-Linked Polyethylene)
Nominal voltage
18/30kV
Product Description
FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor Application: French reference Medium Voltage power cables The FR-N20XA8E-AR Cables (aluminium) and FR-N20XA8E-R Cables (copper) are manufactured in accordance with NF-C33-226 - a commonly specified French Normes cable, designed for primary and secondary power distribution. The Medium Voltage cables listed (also referenced as HTA cables in France) have a rated voltage of 12/20kV. The cables with a rated voltage of 18/30kV are referenced with the prefix FR-N30. CHARACTERISTICS Voltage Rating Uo/U 18/30 (36)kV Temperature Rating Maximum conductor operating temperature: 90°C Initial temperature at S.C.C for metallic screen: 80°C Maximum conductor temperature during S.C: 250°C Minimum Bending Radius 20 x Overall diameter CONSTRUCTION Conductor Class 2 Stranded Copper Conductor Screen Extruded Inner Semi Conductor (Bonded Type) Insulation XLPE (Cross-Linked Polyethylene) Insulation Screen Extruded Outer Semi Conductor (Strippable Type) Waterblocking Semi Conductive Longitudinal Waterblocking Tape Aluminium Tape Applied Longitudinally Sheath MDPE (Medium Density Polyethylene) STANDARDS NF C 33-226, IEC 60502-2, EN 60228
Specification
FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor
NO. OF
CORES
NOMINAL
CROSS
SECTIONAL
AREA
mm2
NOMINAL
SCREEN
CROSS
SECTIONAL
AREA
mm2
NOMINAL
CONDUCTOR
SCREEN
THICKNESS
mm
NOMINAL
INSULATION
THICKNESS
mm
NOMINAL
INSULATION
SCREEN
THICKNESS
mm
NOMINAL
SHEATH
THICKNESS
mm
NOMINAL
OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
1
50
18
0.6
6.7
0.7
1.9
30.6
1095
1
70
20
0.6
6.7
0.7
1.9
32.4
1341
1
95
21
0.6
6.7
0.7
2
33.9
1626
1
120
22
0.6
6.7
0.7
2.1
35.5
1903
1
150
23
0.6
6.7
0.7
2.1
37.1
2210
1
185
24
0.6
6.7
0.7
2.2
38.8
2582
1
240
25
0.6
6.7
0.7
2.2
41.2
3186
1
300
27
0.6
6.7
0.7
2.3
43.8
3797
1
400
29
0.6
6.7
0.7
2.4
46.6
4666
1
500
31
0.6
6.7
0.7
2.5
50.2
5723
1
630
34
0.7
6.7
0.7
2.6
54.9
7173
1
800
37
0.7
6.7
0.7
2.8
59.4
9033

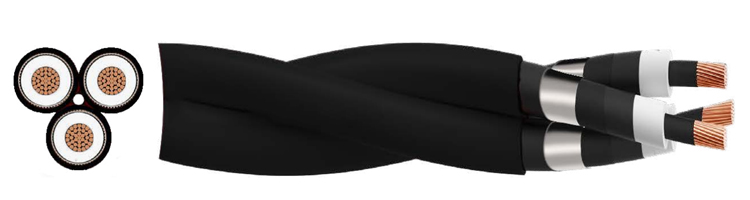

FR-N20XA8E-AR 18/30kV Cable NF C 33-226 - Cu/XLPE/MDPE Copper Conductor
NO. OF
CORES
NOMINAL
CROSS
SECTIONAL
AREA
mm2
NOMINAL
SCREEN
CROSS
SECTIONAL
AREA
mm2
NOMINAL
CONDUCTOR
SCREEN
THICKNESS
mm
NOMINAL
INSULATION
THICKNESS
mm
NOMINAL
INSULATION
SCREEN
THICKNESS
mm
NOMINAL
SHEATH
THICKNESS
mm
NOMINAL
OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
3
50
18
0.6
6.7
0.7
1.9
66.1
3306
3
70
20
0.6
6.7
0.7
1.9
70
4050
3
95
21
0.6
6.7
0.7
2
73.2
4914
3
120
22
0.6
6.7
0.7
2.1
76.7
5755
3
150
23
0.6
6.7
0.7
2.1
80.1
6683
3
185
24
0.6
6.7
0.7
2.2
83.8
7811
3
240
25
0.6
6.7
0.7
2.2
89
9646
3
300
27
0.6
6.7
0.7
2.3
94.6
11501
3
400
29
0.6
6.7
0.7
2.4
100.7
14139
