Flexible Plain Copper Conductor Low Voltage Reeling Cable with 0.6/1KV Rated Voltage and Rubber Sheath for E-RTGS Reeling Crane
Flexible Plain Copper Conductor Low Voltage Reeling Cable with 0.6/1KV Rated Voltage and Rubber Sheath for E-RTGS Reeling Crane
Flexible Plain Copper Conductor Low Voltage Reeling Cable with 0.6/1KV Rated Voltage and Rubber Sheath for E-RTGS Reeling Crane
Flexible Plain Copper Conductor Low Voltage Reeling Cable with 0.6/1KV Rated Voltage and Rubber Sheath for E-RTGS Reeling Crane
Specifications
Rated Voltage :
0.6/1KV
Conductor :
Stranded Copper
MOQ :
100
Product name :
(KSM-S) (N)SHTOEU Low Voltage Reeling Cable
Place of Origin :
Hebei, China
Price :
0.1-5
Temperature :
90℃
Certification :
ISO,CE,IEC,TUV,KEMA
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Model Number :
rubber cable
Delivery Time :
10 Days
Sheath :
Rubber
Range Of Application :
XLPE Insulation
Brand Name :
Minfeng
Description
(KSM-S) (N)SHTOEU Low Voltage Reeling Cable for E-RTGS Reeling Crane Cable Flexible Plain Copper Conductor 0.6/1KV
Product Overview
Flexible low voltage reeling cable for power supply (also with integrated fiber optics), suitable for application under high mechanical stresses. The main application is reeling operation on ERTG's (Electrified Rubber Tyred Gantry cranes).
Flexible Plain Copper Conductor Low Voltage Reeling Cable with 0.6/1KV Rated Voltage and Rubber Sheath for E-RTGS Reeling Crane
Key Specifications
Rated Voltage0.6/1kV
Size50-400mm²
Conductor MaterialCopper
Insulation MaterialRubber
Working Temperature90°C
JacketRubber
ApplicationIndustrial
TypeLow Voltage
Place of OriginHebei, China
Model Number(KSM-S) (N)SHTOEU
Brand NameMinfeng
StandardBased on DIN VDE 0250-814

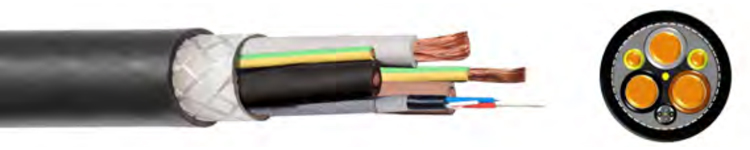

Design Features
  • Conductor: Plain copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
  • Insulation: Rubber compound type 3GI3 acc. to DIN VDE 0207-20
  • Core identification: Acc. to DIN VDE 0293-308
  • Optical Fiber: 12 fibers, 50/125µ or 62.5/125µ or E9/125µ, within protection jacket
  • Core arrangement: Cores laid up with short length of lay. Split earth conductor and optical element positioned in the interstices
  • Inner sheath: Rubber compound type 5GM3 acc. to DIN VDE 0207-21
  • Reinforcement: Wide-meshed polyester braid, embedded in the sheath
  • Outer sheath: Extruded rubber compound type 5GM5 acc. to DIN VDE 0207-21. Abrasion and tear resistant, oil and flame resistant; Color: black
Technical Parameters
Electrical Parameters
  • Rated voltage: 0.6/1 kV (600/1000V)
  • Max. permissible operating voltage AC: 0.7/1.2 kV
  • Max. permissible operating voltage DC: 0.9/1.8 kV
  • AC Test Voltage: 4 kV (5 Min.)
  • Data transmission: Fibre-optic element for trouble free data transmission
  • Current Carrying Capacity description: Acc. to DIN VDE 0298-4
Chemical Parameters
  • Resistance to fire: Acc. to IEC 60332-1 (EN 50265-2-1)
  • Resistance to oil: Acc. to EN 60811-404 - ASTM No. 2: 24h at 100 °C
Thermal Parameters
  • Max. permissible temperature at conductor: 90 °C
  • Max. short circuit temperature of the conductor: 250 °C
  • Ambient temperature for fixed installation: min -40 °C; max +80 °C
  • Ambient temperature in fully flexible operation: min -40 °C; max +80 °C
Mechanical Parameters
  • Max. tensile load on the conductor: 20 N/mm²
  • Torsional stress: ± 50 °/m
  • Min. bending radius: Acc. to DIN VDE 0298 part 3
  • Min. distance with S-type directional changes: 20 X D
  • Travel speed - Reeling operation: up to 180m/min
Detailed Specifications
Number of cores x cross sectionOuter diameter min. mmOuter diameter max. mmBending radius free moving min. mmWeight (ca.) kg/kmPermissible tensile force max. NConductor resistance at 20°C max.Current carrying capacity (1)Short Circuit Current (conductor)
3x50+3x25/33437185255030000.392027.15
3x95+3x50/34346230434057000.2130113.59
3x70+3x35/34043215346042000.2725010.01
3x120+3x70/35156280563072000.1635217.16
3x150+3x70/35256280650090000.1340421.45
3x185+3x95/356613057910111000.1146126.46
3x240+3x120/3647035010380144000.0854034.32
3x300+3x150/3707638013220180000.0662042.9
3x400+3x240/3828844020750240000.0571557.2
3x35 + 2x16/2 + 12LWL33.536.5183211021000.551625.01
3x50 + 2x25/2 + 12G62,539.542.5213291030000.392027.15
3x70 + 2x35/2 + 12LWL4043215338042000.2725010.01
3x95 + 2x50/2 + 12LWL4346230423057000.2130113.59
3x120 + 2x70/2 + 12G62,548.552.5263565072000.1635217.16
3x150 + 2x70/2 + 12G62,55458290657090000.1340421.45
3x185 + 2x95/2 + 12G62,556613058010111000.1146126.46
3x240 + 2x120/2 + 12G62,564703509980144000.0854034.32
3x300 + 2x150/2 + 12LWL707638012560180000.0662042.9
