H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
Specifications
Operating Temp :
-25°C to + 60°C
MOQ :
100m
Delivery Time :
5-8 Days
Voltage :
300/500V
Conductor Material :
Copper
Model :
H05RNH2-F
Packing :
wooden drum ,steel-wooden drum
Brand Name :
Minfeng
Place of Origin :
China
Model Number :
H05RNH2-F
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Insulation :
Rubber (EPR) EI4
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Range Of Application :
Industrial
Description
H05RNH2-F Flat Light-Chain Cable Copper Conductor Rubber (EPR) EI4 Insulation Rubber (CR) EM2 Sheath 300/500V
Product Overview

H05RNH2-F flat cable is designed for temporary installations in both dry and wet environments, including outdoor applications. This cable is specifically intended for use as decorative chains and with designated lampholders.

Key Characteristics

Nominal Voltage: 300/500V

Temperature Range: Fixed: -25°C to +60°C

Flame Retardant: IEC/EN 60332-1-2

Technical Specifications
Rated Voltage 300/500V
Size 1.5/2.5mm²
Conductor Material Copper
Insulation Material Rubber (EPR) EI4
Working Temperature -25°C to +60°C
Jacket Rubber (CR) EM2
Application Industrial
Type Low Voltage
Model Number H05RNH2-F
Brand Name Minfeng
Standard VDE 0266, EN 50525-2-82
Cable Construction

Conductor: Class 5 Flexible, Bare Copper

Insulation: Rubber (EPR) EI4

Sheath: Rubber (CR) EM2

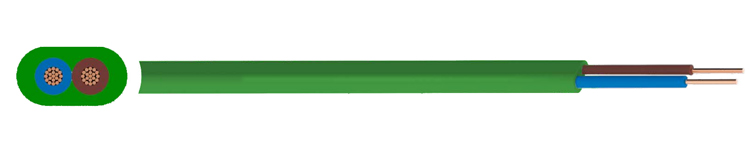

Product Image
H05RNH2-F Flat Light-Chain Cable with Copper Conductor 300/500V for Industrial Use
Detailed Specifications
Number of Cores Nominal Cross Sectional Area (mm²) Nominal Width of Flat Cable (mm) Nominal Height of Flat Cable (mm) Nominal Cable Weight (kg/km)
2 1.5 14 6 145
2 2.5 14 6 195
