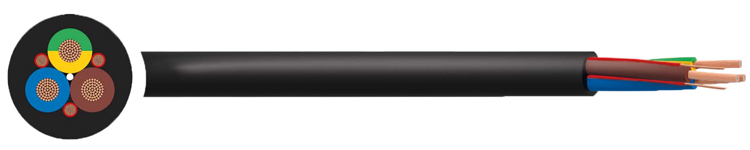

H05BZ5-F H07BZ5-F EV Connection Cable 300/500V 450/750V with Class 5 Flexible Stranded Copper and PUR-HF Sheath for Car Charging Piles
H05BZ5-F H07BZ5-F EV Connection Cable 300/500V 450/750V with Class 5 Flexible Stranded Copper and PUR-HF Sheath for Car Charging Piles
H05BZ5-F H07BZ5-F EV Connection Cable 300/500V 450/750V with Class 5 Flexible Stranded Copper and PUR-HF Sheath for Car Charging Piles
H05BZ5-F H07BZ5-F EV Connection Cable 300/500V 450/750V with Class 5 Flexible Stranded Copper and PUR-HF Sheath for Car Charging Piles
Specifications
Certification :
ISO,CE,IEC,TUV,KEMA
Insulation :
Rubber Compound type EV1-2
Model No :
H05BZ5-F H07BZ5-F
Operating Temp :
-40°C to +90°C
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Conductor material :
Class 5 flexible stranded Copper
Price :
0.1-5
Place of Origin :
Hebei, China
Delivery Time :
5-8 Days
Sheath :
PUR-HF
Brand Name :
Minfeng
MOQ :
100m
Packaging Details :
Wooden Drum
Voltage :
Minfeng Cable Group
Model Number :
H05BZ5-F H07BZ5-F
Description
H05BZ5-F H07BZ5-F EV Connection Cable 300/500V 450/750V Car Charging Pile Cable
H05BZ5-F H07BZ5-F EV Connection Cable 300/500V 450/750V with Class 5 Flexible Stranded Copper and PUR-HF Sheath for Car Charging Piles
Product Overview
Robust flexible multicore PUR sheathed cable compatible with European standard electric vehicle AC charging modes 1 (single phase - domestic), 2 and 3 (single/three phase - commercial/public) installations. Suitable for trailing EV plug connections to vehicle.
Key Specifications
Rated Voltage 300/500V, 450/750V
Size Range 1.5-35mm²
Conductor Material Class 5 flexible stranded Copper
Insulation Material Rubber Compound type EV1-2
Working Temperature -40°C to +90°C
Jacket Material PUR-HF
Application Industrial
Type Low Voltage
Standards EN 50620, IEC 62893
Technical Characteristics
Voltage Rating U/Uo: H05BZ5-F 300/500V, H07BZ5-F 450/750V
Temperature Rating: Operating: -40°C to +90°C, Minimum installation and use temperature: -40°C, Maximum temperature of short circuit: +250°C
Minimum Bending Radius: 6 x overall diameter

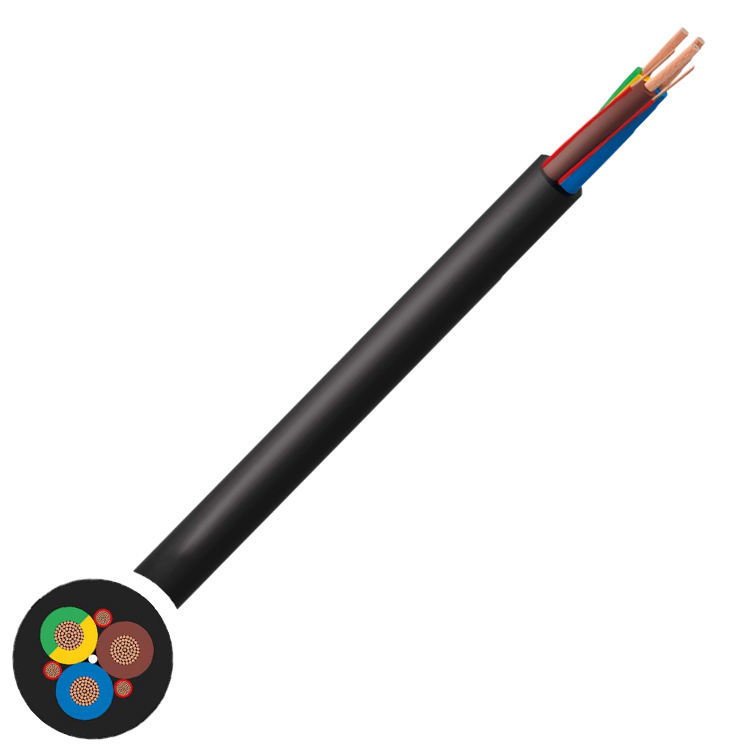

Construction: Class 5 flexible stranded Copper conductor, Rubber Compound type EV1-2 insulation, Control/Pilot Cores with Class 5 Flexible Copper and Rubber insulation, PUR-HF (Polyurethane, Halogen-Free) sheath
Detailed Specifications
NO. OF CORES CROSS SECTIONAL AREA mm² CC/CP SIGNALING SINGLE PHASE/MAX CURRENT (A) AT 30°C THREE PHASE/MAX CURRENT (A) AT 30°C OVERALL DIAMETER mm/Minimum OVERALL DIAMETER mm/Minimum CHARGING MODE
31.5nx0.5mm/nx 1.0mm1408.210.52/3
32.5nx0.5mm/nx 1.0mm25209.311.92/3
34nx0.5mm/nx 1.0mm353010.813.82/3
36nx0.5mm/nx 1.0mm443812.315.72/3
310nx0.5mm/nx 1.0mm625414.8192/3
316nx0.5mm/nx 1.0mm827117.622.62/3
325nx0.5mm/nx 1.0mm1099421.9282/3
335nx0.5mm/nx 1.0mm13511725.732.92/3
42.5nx0.5mm/nx 1.0mm252010.213.12/3
44nx0.5mm/nx 1.0mm353011.915.22/3
46nx0.5mm/nx 1.0mm443813.517.32/3
410nx0.5mm/nx 1.0mm625416.420.92/3
416nx0.5mm/nx 1.0mm827119.725.22/3
425nx0.5mm/nx 1.0mm1099424.631.52/3
435nx0.5mm/nx 1.0mm13511728.9372/3
52.5nx0.5mm/nx 1.0mm253011.7152/3
54nx0.5mm/nx 1.0mm353013.217.32/3
56nx0.5mm/nx 1.0mm443815.419.72/3
510nx0.5mm/nx 1.0mm625418.323.42/3
516nx0.5mm/nx 1.0mm82712228.12/3
525nx0.5mm/nx 1.0mm1099427.535.22/3
535nx0.5mm/nx 1.0mm13511732.441.52/3
