Double Screen Control Cable with Copper Conductor and HFFR Sheath XLPE Insulated Power Cable
Double Screen Control Cable with Copper Conductor and HFFR Sheath XLPE Insulated Power Cable
Double Screen Control Cable with Copper Conductor and HFFR Sheath XLPE Insulated Power Cable
Double Screen Control Cable with Copper Conductor and HFFR Sheath XLPE Insulated Power Cable
Specifications
Supply Ability :
100KM/Week
Product name :
XLPE Insulated Power Cable
Delivery Time :
5-8 Days
Insulation material :
Cross-Linked Polyethylene (XLPE)
Sheath Mark :
ink Printing or Embossing
Price :
0.1-5
Payment Terms :
L/C,T/T
Free Smaple :
Yes
Model Number :
S1ZA5Z1-R
Brand Name :
Minfeng
MOQ :
100m
Certification :
ISO,CE,IEC,TUV,KEMA
Cable Application :
Industrial
Place of Origin :
Hebei, China
Rated Voltage :
0.6/1KV
Packaging Details :
Wooden Drum
Description
S1ZA5Z1-R Control Cable Double Screen Control Cable Control Halogen Free Cable Copper Conductor
Product Overview

Halogen-free, XLPE-insulated, HFFR-sheathed control cable with circular, stranded copper conductors featuring double screen construction and specialized control cores.

Double Screen Control Cable with Copper Conductor and HFFR Sheath XLPE Insulated Power Cable
Key Specifications
Rated Voltage 1KV
Size 6-16mm²
Conductor Material Copper
Insulation Material XLPE
Working Temperature -10°C to 90°C
Jacket HFFR
Application Industrial
Type Low Voltage
Place of Origin Hebei, China
Model Number S1ZA5Z1-R
Brand Name Minfeng
Standard IEC 60502
Product Description

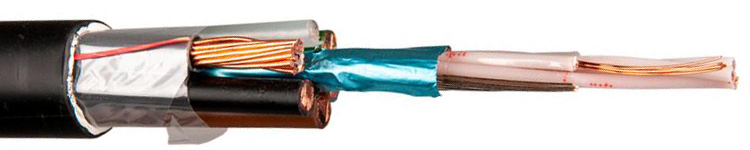

S1ZA5Z1-R Control Cable is a halogen-free, XLPE-insulated, HFFR-sheathed house wiring cable with circular, stranded copper conductors. The cable features 2 pairs of screened control cores in the middle configuration. A stranded drain wire of tinned copper is positioned under and in contact with the aluminium tape surrounding the control cores.

Designed according to IEC 60502 standards, the conductors feature resistance and wire count (19 pieces) compliant with IEC 60228 class 2. Core identification follows HD 308 color coding, with control cores numbered 1-4. The sheath includes comprehensive marking: type/manufacturer/year+month/metre marking.

This control cable meets CPR class Dca s2 d2 a2 fire classification requirements, emits no corrosive gases, and features low smoke production during fire conditions. The conductor insulation provides protection against UV light exposure that may occur in light fixtures and signage applications.

Technical Characteristics
Construction
  • Conductor material: Copper
  • Conductor shape: Circular
  • Conductor flexibility: Stranded class 2
  • Outer sheath: HFFR (polyolefin)
  • Color: Black
  • Halogen free: Yes
Dimensional
  • Number of cores: 5
  • Number of control cores: 4
Electrical
  • Rated Voltage Uo/U (Um): 0.6/1 kV
Usage
  • Minimum installation temperature: -10°C
  • Recommended minimum installation temperature: 0°C
  • Maximum operating temperature: 90°C
  • Electro magnetic interference resistance: No
  • Gases corrosivity: IEC 60754-2
  • Smoke density: IEC 61034
Product Specifications
Name Conductor Cross Section [mm²] Nominal Outer Diameter [mm] Approximate Weight [kg/100m]
Control 1 kV 5G6 + 4x0.75 6 18.4 53
Control 0.6/1kV 5G16 + 4x0.75 16 22.5 102
Control 1 kV 5G10 + 4x0.75 10 19.3 73
Standards Compliance

Product Standard: IEC 60502
