0.6/1kV NX600 Armoured Power Cable with XLPE Mica Tape Insulation and LSZH Outer Sheath
0.6/1kV NX600 Armoured Power Cable with XLPE Mica Tape Insulation and LSZH Outer Sheath
0.6/1kV NX600 Armoured Power Cable with XLPE Mica Tape Insulation and LSZH Outer Sheath
0.6/1kV NX600 Armoured Power Cable with XLPE Mica Tape Insulation and LSZH Outer Sheath
Specifications
Sheath Color :
Black
Model Number :
NX600
Delivery Time :
5-8 Days
Jacket :
LSZH
temperature :
90°C
Certification :
ISO,CE,IEC,TUV,KEMA
Standardcompliance :
BS 7846; BS 8519 cat. 3
MOQ :
100m
Place of Origin :
China
Packaging Details :
Wooden Drum
Brand Name :
Minfeng
Main Market :
Asia,Africa
Price :
0.1-5
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Origin :
Hebei, China
Free Smaple :
Yes
Description
0.6/1kv NX600 Armoured Cable XLPE Mica Tape Insulation LSZH Outer Sheath Copper Conductor
Product Overview

Fire-resistant armoured cable designed for critical safety systems requiring 180 minutes of circuit integrity during fire conditions.

0.6/1kV NX600 Armoured Power Cable with XLPE Mica Tape Insulation and LSZH Outer Sheath
Applications
  • Indoor applications where fire safety is a priority (hotels, schools, high-rise buildings, hospitals, data centers, airports, offices)
  • Warning Systems (fire alarms, smoke detection/alarm devices)
  • Smoke Ventilation Systems (tunnel fans)
  • Emergency Exits (emergency lighting fixtures)
  • Fire Intervention Systems (water pumps, automatic doors)
  • Uninterruptible Energy Systems (escalators, elevators in subways)

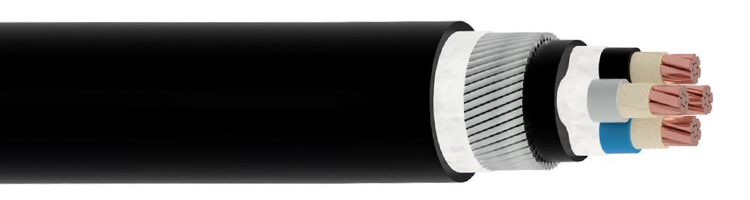

Construction
Conductor Copper
Fire Barrier Mica Tape
Insulation XLPE
Inner Layer Glass-fiber Tape
Bedding LSZH
Armour Single layer of galvanized steel wires
Outer Layer Glass-fiber Tape
Outer Sheath LSZH

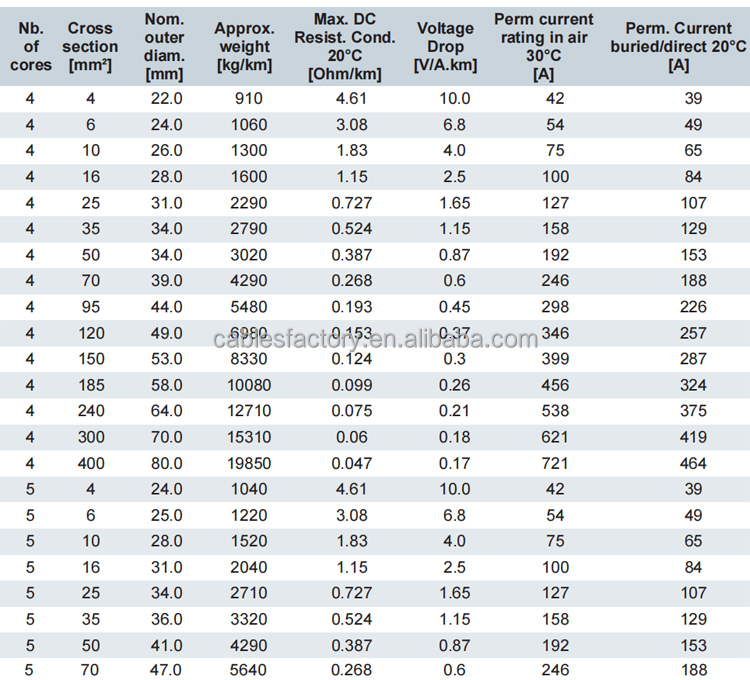

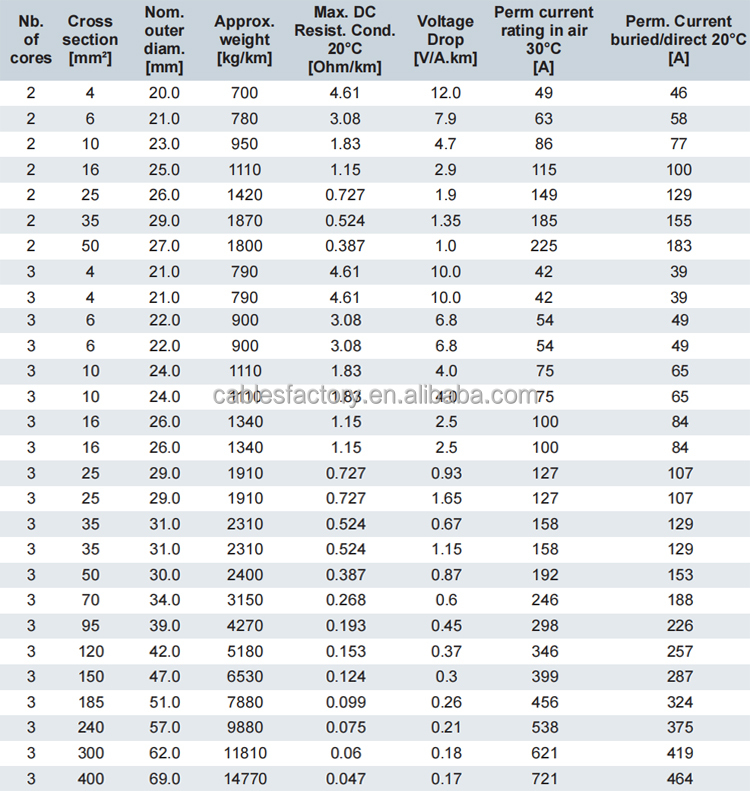

Technical Specifications
Rated Voltage 0.6/1kV
Size Range 4-400mm²
Conductor Material Copper
Insulation Material XLPE
Working Temperature 90°C
Jacket LSZH
Application Industrial
Type Low Voltage
Standard BS 7846; BS 8519 cat. 3
Fire Resistant BS 8491 - 120 min
Short-circuit Max Temperature 250°C
Bending Factor 8 (xD)
0.6/1kV NX600 Armoured Power Cable with XLPE Mica Tape Insulation and LSZH Outer Sheath 0.6/1kV NX600 Armoured Power Cable with XLPE Mica Tape Insulation and LSZH Outer Sheath
