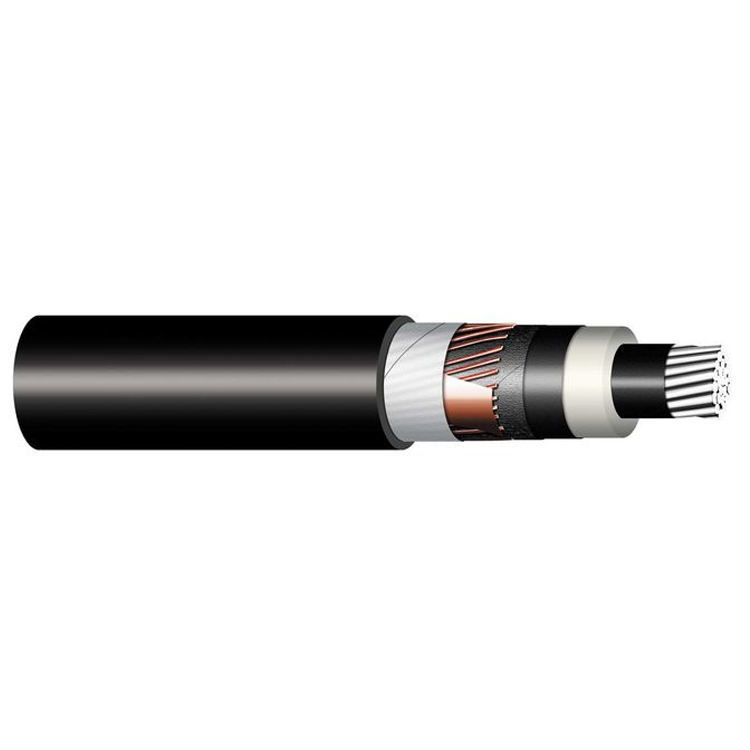

AXEKVCE Aluminium Conductor Medium Voltage Cable with XLPE Insulation for Industrial Use 6-10kv 12.7-22kv 20-35kv
AXEKVCE Aluminium Conductor Medium Voltage Cable with XLPE Insulation for Industrial Use 6-10kv 12.7-22kv 20-35kv
AXEKVCE Aluminium Conductor Medium Voltage Cable with XLPE Insulation for Industrial Use 6-10kv 12.7-22kv 20-35kv
AXEKVCE Aluminium Conductor Medium Voltage Cable with XLPE Insulation for Industrial Use 6-10kv 12.7-22kv 20-35kv
Specifications
Hs Code :
8544492100
Model :
AXEKVCE
Samples :
Free
Outer Sheath Color :
Black or as per required
Brand Name :
Minfeng
Material :
aluminum
Working Temperature :
-35 up to +90℃
Place of Origin :
China
Price :
0.1-5
Model Type :
Medium Voltage Cables
MOQ :
100m
Supply Ability :
100KM/Week
Payment Terms :
L/C,T/T
Delivery Time :
5-8 Days
Cable Application :
Industrial
Certification :
ISO,CE,IEC,TUV,KEMA
Nominal Voltage :
6-10kv 12.7-22kv 20-35kv
Model Number :
AXEKVCE
Description
10-22-35 AXEKVCE Single Core Cable Aluminium Conductor Medium Voltage Cables with XLPE Insulation Cable 6-10kv 12.7-22kv 20-35kv
Product Overview
Single core medium voltage cables with aluminium conductor and XLPE insulation, designed for various industrial applications with multiple voltage ratings.
Key Specifications
Rated Voltage 6-10kv 12.7-22kv 20-35kv
Size 1-300mm²
Conductor Material Aluminum
Insulation Material XLPE
Working Temperature 90°C
Jacket PE
Application Industrial
Type Medium Voltage
Place of Origin Hebei, China
Model Number AXEKVCE
Brand Name Minfeng
Standard PN 05/96, PNE 347625

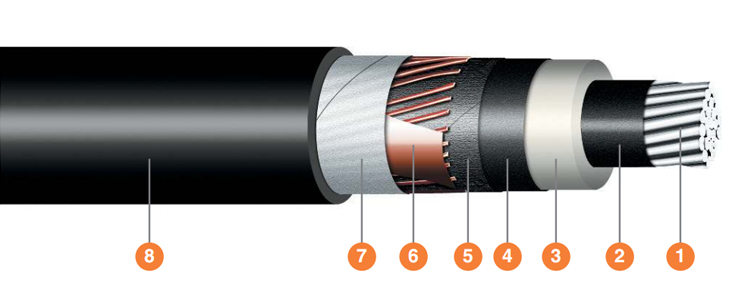

Cable Construction
AXEKVCE Aluminium Conductor Medium Voltage Cable with XLPE Insulation for Industrial Use 6-10kv 12.7-22kv 20-35kv
Layer Description
1. Hlinikove jadro Aluminium conductor
2. Vnitřni polovodiva vrstva Inner semiconducting layer
3. Izolace ze zesitěneho polyetylenu XLPE insulation
4. Vnějši polovodiva vrstva Outer semiconducting layer
5. Polovodiva vodoblokujici paska Semiconducting water-blocking tape
6. Stiněni měděnými draty s protispiralou z měděne pasky Cu wire screen and Cu tape counterhelix
7. Vodoblokujici paska Water-blocking tape
8. Vnějši PE plašť Outer PE sheath
Product Description & Applications
Applications: Cables are designed for loose installation in the air on supporting structures, in ground, into building blocks and into pipes made of non-magnetic material. Installation must be done according to valid standards and rules for cable laying in ordinary and damp environments.
Properties:
  • Rated voltage: 6/10kV, 12.7/22kV, 20/35kV
  • Maximal voltage: 12kV, 25kV, 40.5kV
  • Test voltage: 28kV, 50kV, 75kV
  • Operating conductor temperature: +90℃
  • Maximal short-circuit temperature: +250℃
  • Operating temperature range: from -35℃ up to +90℃
  • Minimal storage temperature: -35℃
  • Minimal temperature for laying: -20℃
  • Color of insulation: nature
  • Color of sheath: black
  • Fire propagation test: NO
  • Packaging: wooden or metal drums
  • CE-Conformity: YES

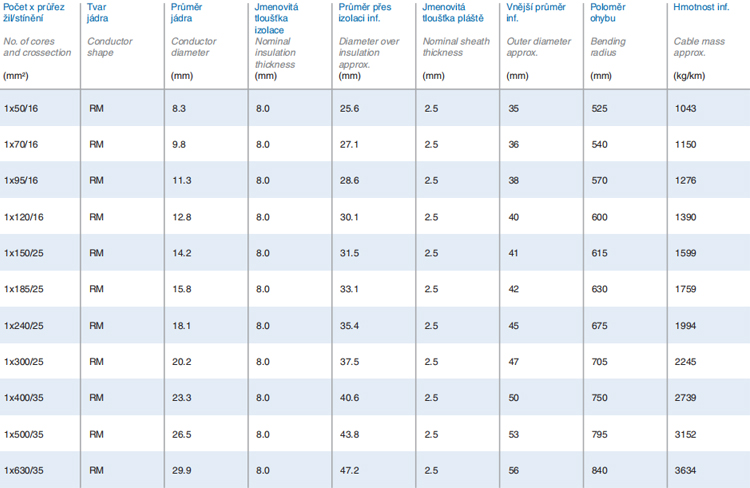

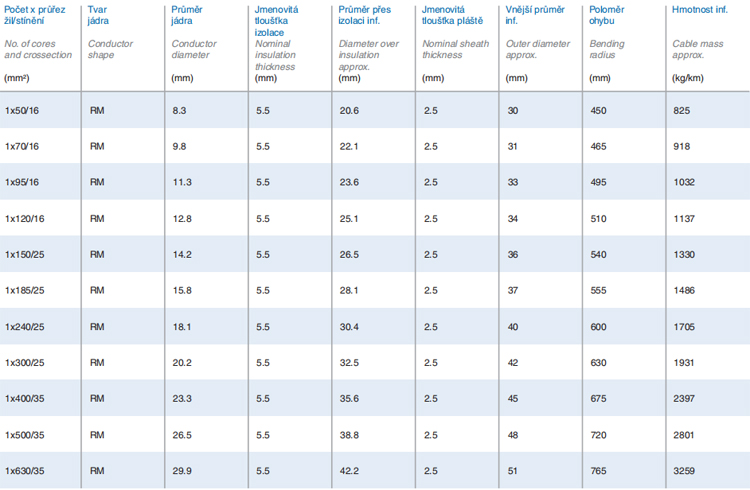

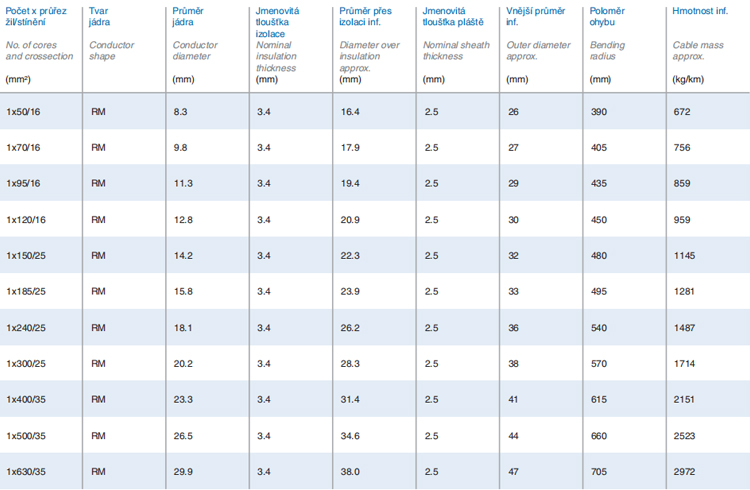

Specification Images
AXEKVCE Aluminium Conductor Medium Voltage Cable with XLPE Insulation for Industrial Use 6-10kv 12.7-22kv 20-35kv AXEKVCE Aluminium Conductor Medium Voltage Cable with XLPE Insulation for Industrial Use 6-10kv 12.7-22kv 20-35kv AXEKVCE Aluminium Conductor Medium Voltage Cable with XLPE Insulation for Industrial Use 6-10kv 12.7-22kv 20-35kv
