TECWATER S1BN8-F 0.6/1 KV Power Cable for Water Application with Copper Conductor and EPR Insulation
TECWATER S1BN8-F 0.6/1 KV Power Cable for Water Application with Copper Conductor and EPR Insulation
TECWATER S1BN8-F 0.6/1 KV Power Cable for Water Application with Copper Conductor and EPR Insulation
TECWATER S1BN8-F 0.6/1 KV Power Cable for Water Application with Copper Conductor and EPR Insulation
Specifications
Voltage rating :
0.6/1kv
Place of Origin :
China
Brand Name :
Minfeng
Model :
TECWATER
Model Number :
TECWATER
Certification :
ISO,CE,IEC,TUV,KEMA
Packing :
Steel wooden drum
Standards Compliance :
VDE 0282-16
Jacket :
CPE/ EPR
Price :
0.1-5
Supply Ability :
100KM/Week
MOQ :
100m
Payment Terms :
L/C,T/T
Packaging Details :
Wooden Drum
Conductor material :
Copper
Range Of Application :
Industrial
Delivery Time :
5-8 Days
Description
TECWATER S1BN8-F 0.6/1 KV Cable for Water Application Copper Conductor EPR Insulation CPE/ EPR Sheath
Product Overview
Rated Voltage 0.6/1kv Size 1.5-500mm²
Conductor Material Copper Insulation Material EPR
Working Temperature -15°C-90°C Jacket CPE/ EPR
Application Industrial Type Low Voltage
Place of Origin Hebei, China Model Number TECWATER
Brand Name Minfeng Standard VDE 0282-16
TECWATER S1BN8-F 0.6/1 KV Power Cable for Water Application with Copper Conductor and EPR Insulation
Application
For making connections to electrical equipment used in a waste-water environment and subject to heavy mechanical stress, including:
  • Submersible pumps in sewage disposal and treatment
  • Submersible mixers
Owing to the various (and frequently changing) substances of which the contaminated water is made up, the cables may be used only in easily accessible areas that can be inspected (installation depth of approximately 10 m, as customarily encountered in sewage water tanks).
These cables are also suitable for use in:
  • Process water
  • Cooling water
  • Mine surface water
  • Rainwater
  • Combined waste water
Under certain circumstances they can be suitable for groundwater and seawater; it is possible to impose less stringent specifications in terms of accessibility and inspection. In such cases the cables can be used at depths up to 500 m. If the water concerned is aggressive or composed of special substances, the cables resistance properties should be examined. These cables can be used indoors, outdoors, in explosion-hazard areas. In other respects, DIN VDE 0298-300 / HD 516 applies.

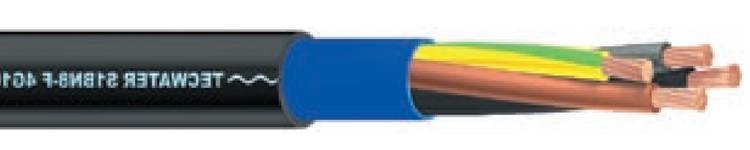

Design Features
Conductor
  • Copper, plain, finely stranded
  • Class 5 according to DIN VDE 0295 / IEC 60228
Insulation
  • Ozone, water and weather resistant insulation compound
  • Base EPR (Ethylene-Propylene Rubber)
Core Identification
  • Power cables: Cores colored according to DIN VDE 0293-308:2003
  • Control cores: Cores light, printed with black numbers
Sheath
  • 1 layer sheath: CPE special compound; water and oil resistant; color: black for all single core cables and multi core cables up to 5 cores and 6 mm²
  • 2 layer sheath system: Inner layer: EPR special compound; color: blue. Outer layer: CPE special compound; water and oil resistant; color: black for all multi core cables starting with 10 mm² and all cables with more than 5 cores
Technical Data
  • Water resistance: Test according to DIN VDE 0282-16 (HD 22.16)
  • Resistance to oil: Test according to DIN EN 60811-2-1
  • Behaviour in case of fire: Test according to DIN EN 60332-1-2

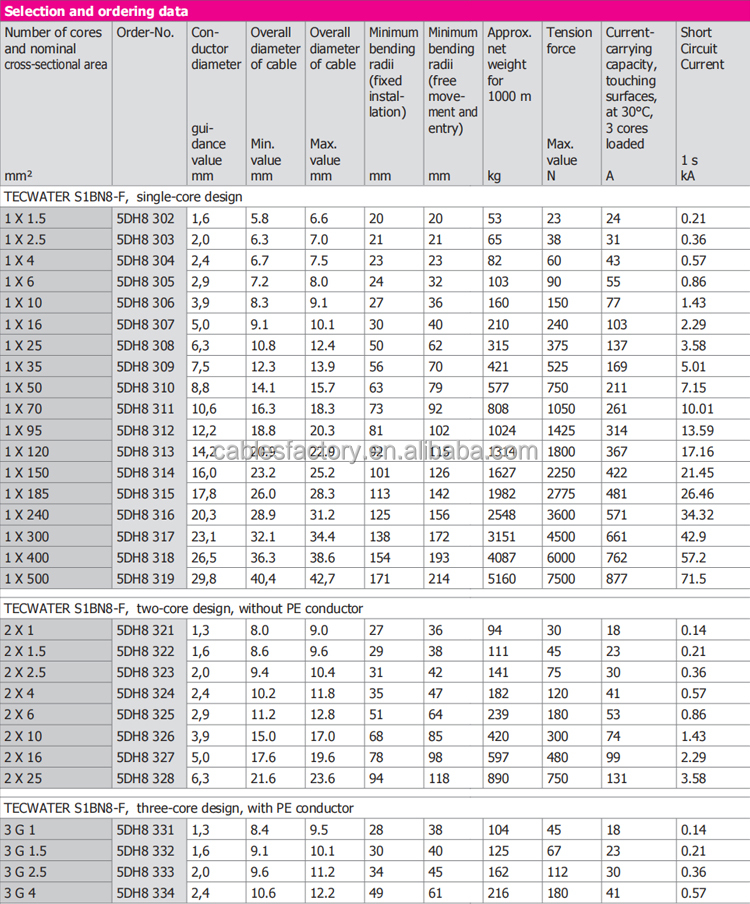

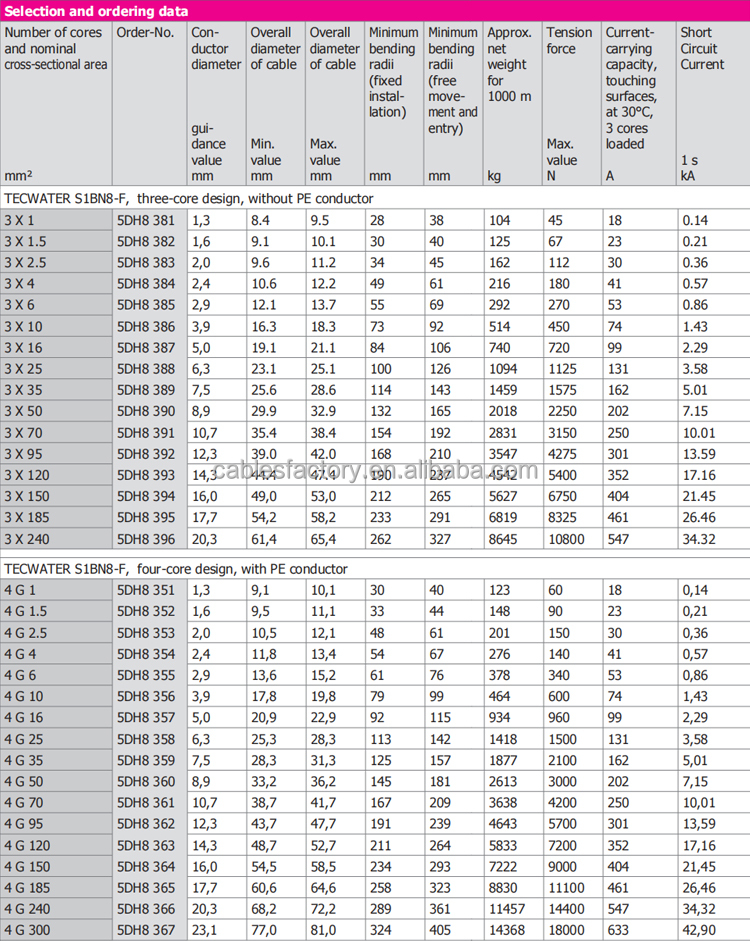

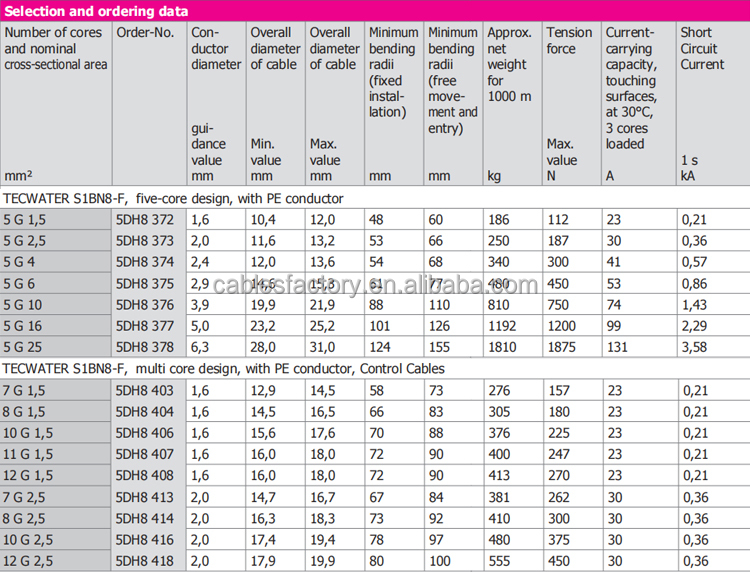

Product Images
TECWATER S1BN8-F 0.6/1 KV Power Cable for Water Application with Copper Conductor and EPR Insulation TECWATER S1BN8-F 0.6/1 KV Power Cable for Water Application with Copper Conductor and EPR Insulation TECWATER S1BN8-F 0.6/1 KV Power Cable for Water Application with Copper Conductor and EPR Insulation
