Specifications
Conductor Type :
Aluminum
Marking :
Laser Printing
Place of Origin :
Hebei, China
Payment Terms :
L/C,T/T
Model Number :
ZA-VLV ZC-VLV ZC-YJLV
Delivery Time :
5-8 Days
Package :
Steel Wooden Drum
Brand Name :
Minfeng
Sheathed :
PVC
Packaging Details :
Wooden Drum
Standard :
IEC60502-1
Price :
0.1-5
Operating Temperature :
90°C
Certification :
ISO,CE,IEC,TUV,KEMA
Supply Ability :
100KM/Week
Model :
ZA-VLV ZC-VLV ZC-YJLV
Voltage Rating :
0.6/1kV
MOQ :
100m
Description

Key attributes


Rated Voltage
0.6 kV, 1 kV
Size
4x240
Conductor Material
Aluminum
Insulation Material
XLPE
Working Temperature
90°C
Jacket
PVC
Application
Underground
Type
Low Voltage
Place of Origin
Hebei, China
Model Number
Aluminium Conductor Cable
Brand Name
Minfeng OR OEM
Certificate
ISO9001/CCC
Standard
IEC60502-1
Rated voltage
0.6/1KV
Core
Multi-core
Color
Black
Product Description

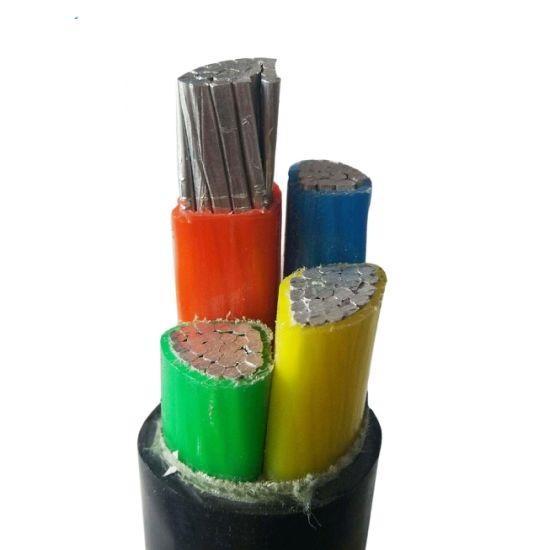

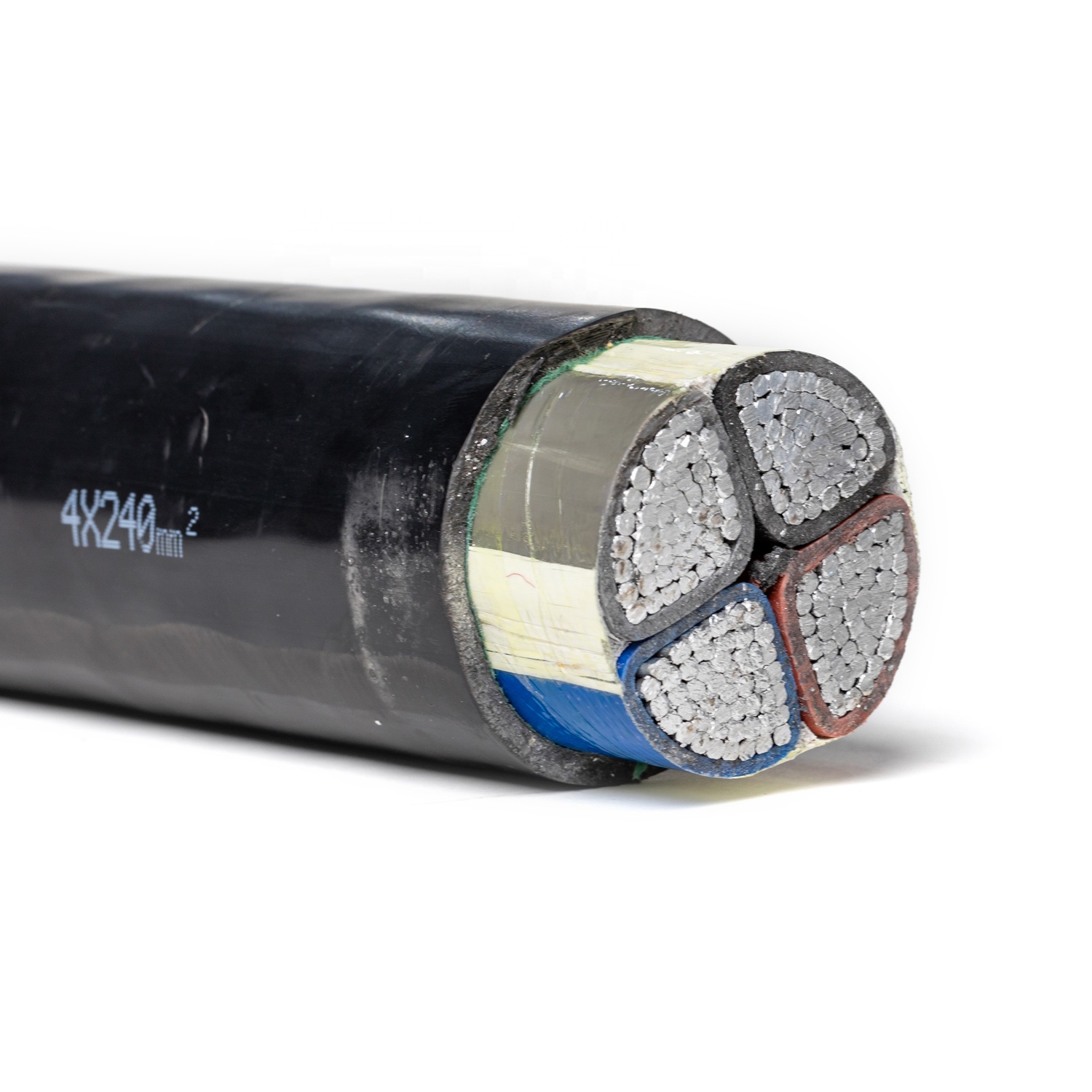

Cable Construction:

Conductor: Stranded Aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Sheath: Polyvinyl chloride (PVC)


Cable Operating Features:
1)The maximum conductor operating temperature: 90°C(XLPE)70°C(PVC)
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C(XLPE)160°C(PVC)
Environment temperature should be no lower than 0°C for laying the cable.
2)Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable

ZA-VLV ZC-VLV ZC-YJLV 4x240 4 Core XLPE Insulated Aluminum Cable 240mm 150 Mm2 Supplier From China


Cable Parameter

0.6/1kV-3 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor(20℃) Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
3X10 0.7 1.8 17.2 250 3.08 50 66
3X16 0.7 1.8 19.4 330 1.91 65 85
3X25 0.9 1.8 22.8 480 1.20 87 110
3X35 0.9 1.8 25.0 580 0.868 105 130
3X50 1.0 1.8 24.4 670 0.641 130 160
3X70 1.1 1.9 29.4 910 0.443 165 195
3X95 1.1 2.0 33.6 1170 0.320 205 235
3X120 1.2 2.1 35.9 1460 0.253 240 265
3X150 1.4 2.3 39.9 1820 0.206 270 300
3X185 1.6 2.4 44.1 2200 0.164 315 340
3X240 1.7 2.6 51.1 2850 0.125 375 395
3X300 1.8 2.7 56.1 3500 0.100 435 445
3X400 2.0 3.0 62.4 4500 0.0778 510 510
0.6/1kV-4 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor(20℃) Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
4X10 0.7 1.8 18.6 300 3.08 50 66
4X16 0.7 1.8 21.0 400 1.91 65 85
4X25 0.9 1.8 24.9 570 1.20 87 110
4X35 0.9 1.8 28.3 710 0.868 105 130
4X50 1.0 1.8 28.4 850 0.641 130 160
4X70 1.1 2.0 33.1 1160 0.443 165 195
4X95 1.1 2.1 37.1 1520 0.320 205 235
4X120 1.2 2.2 40.8 1898 0.253 240 265
4X150 1.4 2.4 45.2 2369 0.206 270 300
4X185 1.6 2.6 52.1 2925 0.164 315 340
4X240 1.7 2.8 57.8 3700 0.125 375 395
4X300 1.8 3.0 63.5 4580 0.100 435 445
4X400 2.0 3.3 70.9 5800 0.0778 510 510

ZA-VLV ZC-VLV ZC-YJLV 4x240 4 Core XLPE Insulated Aluminum Cable 240mm 150 Mm2 Supplier From China

ZA-VLV ZC-VLV ZC-YJLV 4x240 4 Core XLPE Insulated Aluminum Cable 240mm 150 Mm2 Supplier From China


Packaging & Shipping

Packing

Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.


Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!


Shipping Port:

Tianjin, Qingdao, or other ports as per your requirements.


Sea freight:
FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
