AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket
AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket
AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket
AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket
AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket
AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket
Specifications
Price :
0.1-5
Insulation Material :
UV resistant XLPE
Working Temperature :
90°C
Supply Ability :
100KM/Week
Origin :
Hebei, China
Brand Name :
Minfeng
Cable Color :
Black
MOQ :
100m
Payment Terms :
L/C,T/T
Delivery Time :
5-8 Days
Certification :
ISO,CE,IEC,TUV,KEMA
Packaging Details :
Wooden Drum
Place of Origin :
China
Model No :
AXPK AXPK-PLUS Cable
Model Number :
AXPK AXPK-PLUS Cable
Jacket :
halogen-free self-extinguishing PE compound
Description
XPK AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable for Ploughing Down UV Resistant XLPE
AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket
Product Overview
Halogen-free power cable with aluminium conductor designed for fixed indoor and outdoor installation, perfect for ploughing down applications.
Key Specifications
Rated Voltage 0.6/1kv
Size Range 17-59mm²
Conductor Material Aluminum
Insulation Material UV resistant XLPE
Working Temperature 90°C
Jacket Material Halogen-free self-extinguishing PE compound
Application Industrial
Type Low Voltage

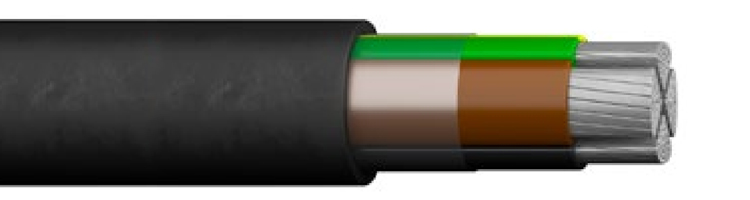

Construction Details
Cable Shape: Round
Conductor: Stranded and compacted or solid round aluminium conductor (16 mm²); Stranded, compacted and annealed aluminium conductor (25 mm²); Stranded, compacted and annealed sector shaped aluminium conductor (35-300 mm²)
Conductor Screen: UV resistant XLPE
Core Assembly: Insulated cores are wrapped together
Outer Sheath: Black halogen-free self-extinguishing PE compound
Temperature Ratings
Max Operating Temperature 90°C
Max Short Circuit Temperature 250°C
Min Installation Temperature -20°C
Special precautions recommended for installation below 0°C
Standards Compliance
EN 60332-1-2, IEC 60502-1, HD 603-5D, EN 50575:2014/A1:2016, HD 308 S2, EN 60228
AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket AXPK-PLUS 0.6/1kv Aluminium Conductor Halogen-free Cable with UV Resistant XLPE and Self-extinguishing PE Jacket
