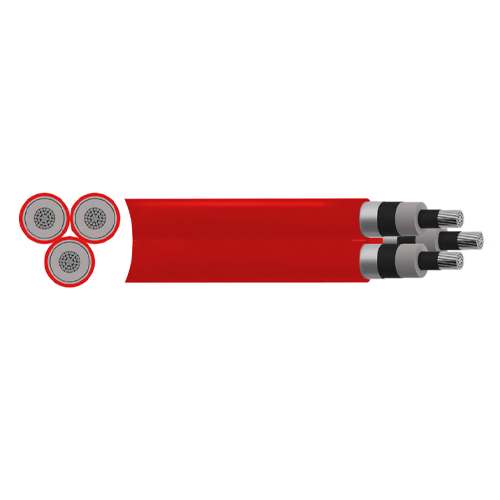

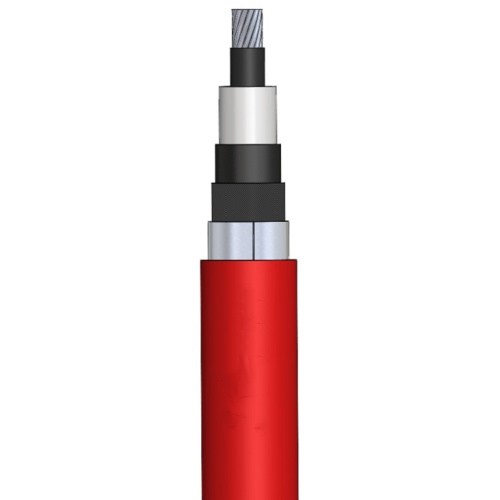

Rated voltages U₀/U: 18/30 kV

Conductor: stranded, compacted, round aluminium - Cl. 2 (IEC 60228)

Conductor screen: extruded semiconducting compound

Insulation: extruded polyethylene (XLPE) compound

Insulation screen: extruded semiconducting compound - fully bonded

Longitudinal watertightness: semiconducting water blocking tape

Screen and radial watertightness: aluminium tape longitudinally applied (nominal thickness: 0.2 mm)

Outer sheath: extruded polyethylene (PE) compound

Colour: red

Application: Suitable for fixed installation indoor or outdoor, laying in air or directly or indirectly buried.

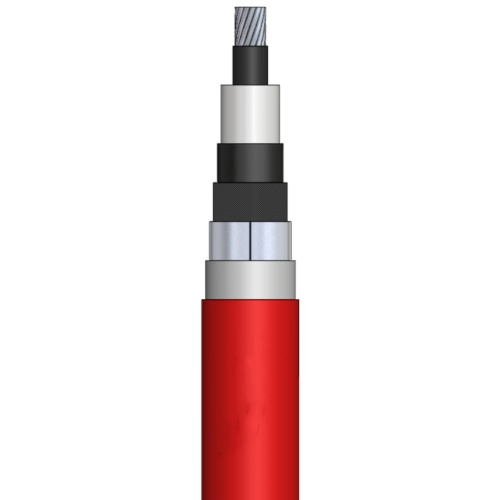

Rated voltages U₀/U: 18/30 kV

Conductor: stranded, compacted, round aluminium - Cl. 2 (IEC 60228)

Conductor screen: extruded semiconducting compound

Insulation: extruded polyethylene (XLPE) compound

Insulation screen: extruded semiconducting compound - fully bonded

Longitudinal watertightness: semiconducting water blocking tape

Screen and radial watertightness: aluminium tape longitudinally applied (nominal thickness: 0.2 mm)

First sheath: extruded polyethylene (PE) compound

Second sheath: extruded polyethylene (PE) compound

Colour: red

Application: Suitable for fixed installation indoor or outdoor, laying in air or directly or indirectly buried. The two special sheaths provide excellent protection against impacts and mechanical stress.

Rated voltages U₀/U: 12/20 kV, 18/30 kV

Conductor: Class 2 compacted stranded aluminium

Conductor Screen: Semi-conductive XLPE compound

Insulation: XLPE

Insulation Screen: Semi-conductive XLPE compound

Protective Layer: Semiconductive watertight tape

Metallic Screen: Aluminium tape longitudinally applied

Outer Sheath: PE

Outer Sheath Colour: Red

Application: Medium Voltage power cable suitable for laying in underground channels; in underground pipe; in open air; Underground installation with protection is also allowed. Suitable in wind power plants.

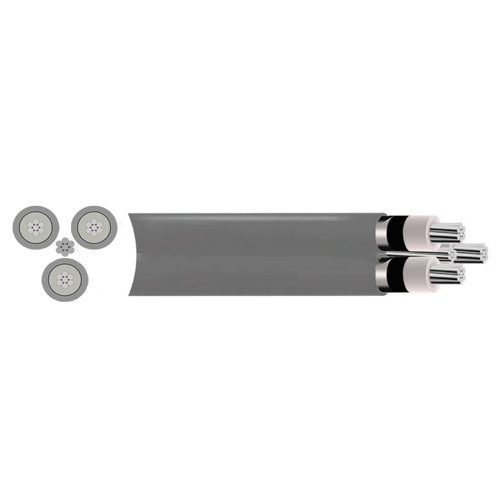

Rated voltages U₀/U: 12/20 kV

Conductor: Class 2 compacted stranded aluminium

Conductor Screen: Semi-conductive XLPE compound

Insulation: XLPE (Cross-Linked Polyethylene) compound (DIX 8)

Insulation Screen: Semi-conductive XLPE compound

Metallic Screen: Aluminium tape longitudinally applied to each core

Outer Sheath: MDPE (Medium Density Polyethylene) (DMP5)

Outer Sheath Colour: Light Grey

Lay Up: Triplex formation around an Aluminium Messenger Wire

Application: Medium Voltage power cable suitable for use indoors and outdoors. Suitable for fixed installation in free air, on masonry and metal structures, on walkways, pipes, channels and other similar systems. The central aluminium messenger wire aids support.
