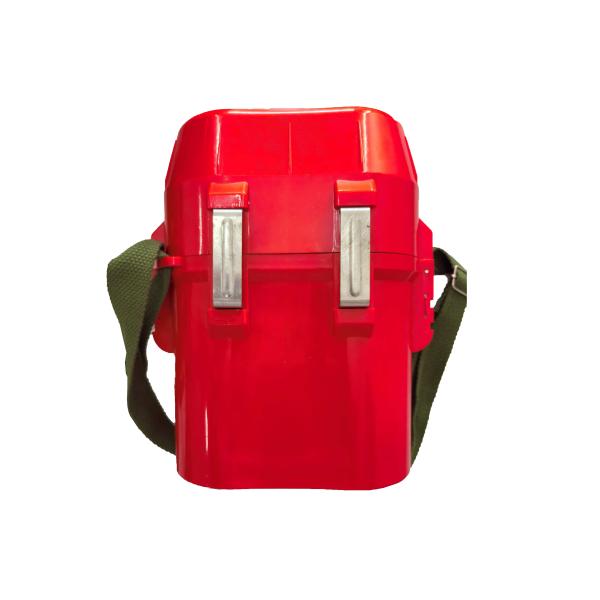

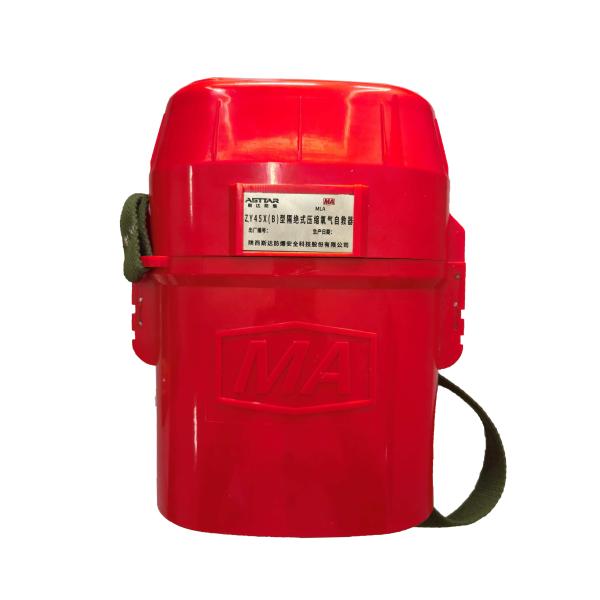

ZY45X(B)45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer conforming to GB24502-2023 standard
ZY45X(B)45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer conforming to GB24502-2023 standard
ZY45X(B)45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer conforming to GB24502-2023 standard
ZY45X(B)45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer conforming to GB24502-2023 standard
Specifications
Brand Name :
ASTTAR
Model Number :
ZYX30(A)
Certification :
MA
Place of Origin :
Shaanxi
MOQ :
1pc
Payment Terms :
T/T, western union
Supply Ability :
5000pcs/month
Delivery Time :
1-2 days for ready goods, 2-4 weeks for bulk order
Packaging Details :
carton
Material :
ABS
Size :
(194×118×239)mm
Weight :
2.9kg
Capacity of oxygen bottle :
0.6L
Rated protective time :
>=45min
Filling pressure for oxygen bottle :
18-22Mpa
Oxygen storage capacity :
>=120L
Exhaust pressure :
150-300Pa
Description

ZY45X(B) Isolated Compressed Oxygen Self-Rescuer conforming to GB24502-2023 standard

Application

It is a breathing apparatus, which utilizes compressed oxygen as source to form isolated oxygen of closed circuit to provide the wearer with clean oxygen, it is primarily intended for use in mines or in environments where toxic and harmful gases are present, causing oxygen deficiency and asphyxiation hazards. On-site personnel can quickly don the self-rescuer to ensure normal breathing and facilitate escape from the disaster area.

Main specification

Items Specification
ZY45X(B)
Rated protective time 45min
Protective time while at rest ≥135min
Filling pressure for oxygen bottle 18-22 MPa (20℃, 101.3kPa)
Oxygen cylinder capacity ≥0.6L

Oxygen

supplying modes

 Quantitative oxygen supply ≥2.1L/min(at 35L/min, 20-3 Mpa)
≥0.5L/min(at 10L/min, 20-3 Mpa)
Oxygen delivery by demand valve ≥65L/min(at 20-5 Mpa)
Oxygen delivery by manual switch ≥65L/min(at 20-5 Mpa)
Exhaust pressure 150 Pa～300Pa
Dimensions (194×118×239)mm
Weight ≥2.9kg
Operating environmental conditions Atmospheric pressure: (70 - 125) KPa; Relative humidity: (0 - 98) %; Temperature: -5°C to +50°C.

ZY45X(B)45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer conforming to GB24502-2023 standard

ZY45X(B)45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer conforming to GB24502-2023 standard

Company information

ZY45X(B)45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer conforming to GB24502-2023 standard

Company information

With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 20 years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We mainly export products of three categories:

1. Mining underground rescue product

2. Mining explosion-proof lamp

3. Mining explosion-proof instrument and meter

Our main products:

1. CE approved chemical oxygen self-rescuer

2. Compressed oxygen self-rescuer

3. Filter self-rescuer

4. ATEX approved LED miner's cap lamp

5. Methane alarm LED miner's cap lamp

6. LED Flame-proof laneway lamp

7. Mechanical and electronic anemometer

8. Isolated positive pressure oxygen breathing apparatus

9. Automatic resuscitator

10. Optical interference type methane detector

11. Portable multi-parameter gas detector

12. Infrared thermometer

13. Laser distance meter

14. Laser guider
