Specifications
Brand Name :
ASTTAR
Model Number :
ZYX45(A)
Certification :
MA
Place of Origin :
Shaanxi
MOQ :
1pc
Payment Terms :
T/T, western union
Supply Ability :
5000pcs/month
Delivery Time :
1-2 days for ready goods, 2-4 weeks for bulk order
Packaging Details :
carton
Material :
ABS
Size :
(244×183×102)mm
Weight :
2.4kg
Capacity of oxygen bottle :
0.4L
Rated protective time :
>=45min
Filling pressure for oxygen bottle :
19-21Mpa
Oxygen storage capacity :
>=80L
Exhaust pressure :
150-300Pa
Inhalation oxygen concentration :
>=25%(by volume)
Inhalation carbon dioxide concentration :
<=2%(by volume)
Description

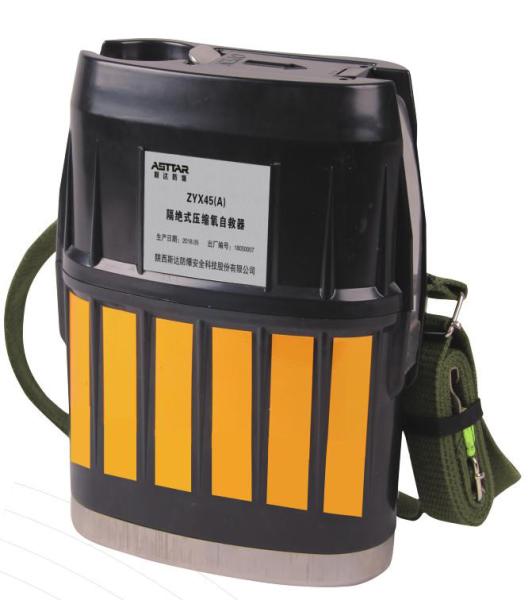

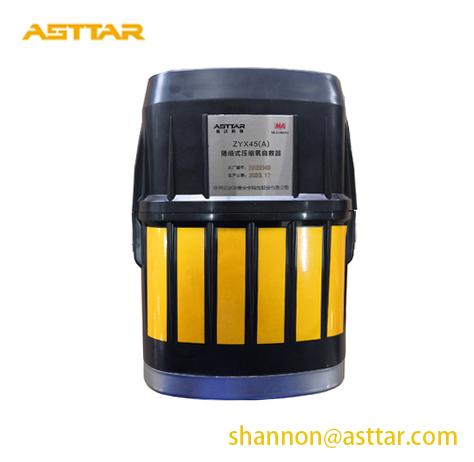

ZYX45(A) Isolated Compressed Oxygen Self-Rescuer

Application

It is a breathing apparatus, which utilizes compressed oxygen as source to form isolated oxygen of closed circuit to provide the wearer with clean oxygen, and is mainly used under a mine or in the environment where toxic gases exist or oxygen is deficient.

Main specification

Items Specification
ZYX45(A)
Rated protective time ≥45min
Capacity of oxygen bottle 0.4L
Filling pressure for oxygen bottle 19-21 MPa
Oxygen storage capacity ≥80L
Inhalation oxygen concentration ≥25% (by volume)
Inhalation carbon dioxide concentration ≤2.0% (by volume)
Inhaling temperature(at the ambient temperature of 20℃±3℃) <50℃
Oxygen-supplying modes Quantitative oxygen supply >1.2L/min
Oxygen delivery by demand valve >60L/min
Oxygen delivery by manual switch >60L/min
Opening pressure of safety valve ≤ 1Mpa
Opening force of sealing belt 40-120N.
Automatic opening pressure of automatic supply valve (-100~-400)Pa
Exhaust pressure 150 Pa～300Pa
Dimensions (244×183×102)mm
Weight 2.3kg

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

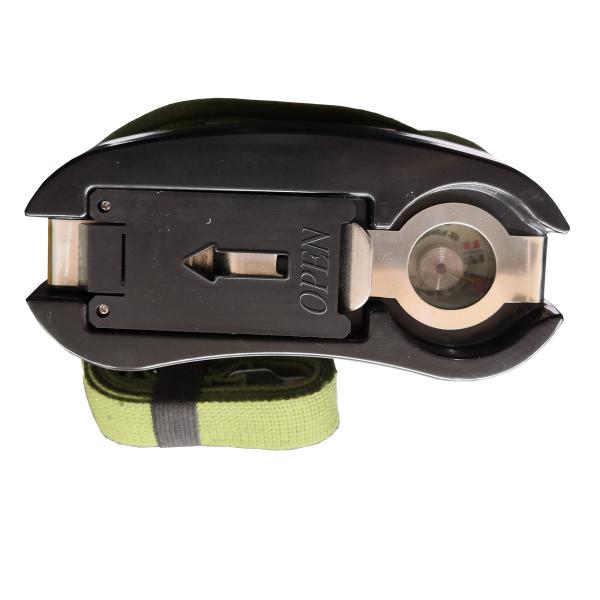

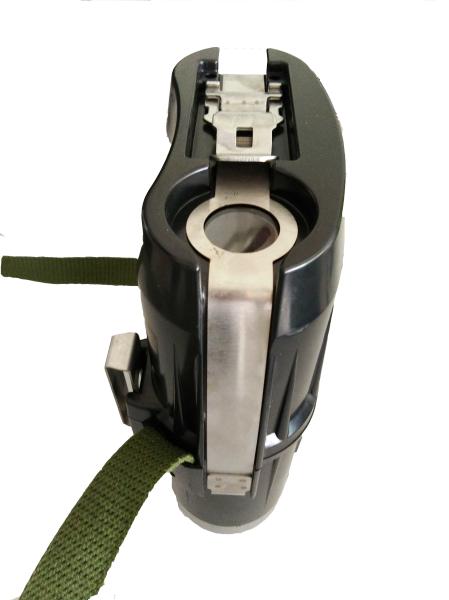

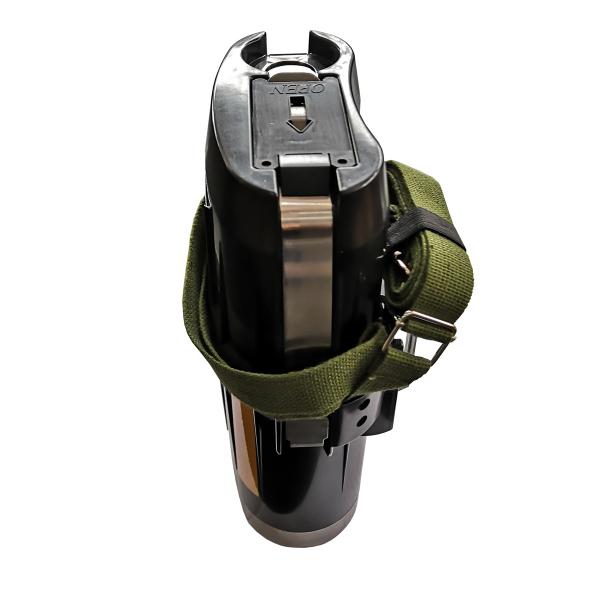

Product features

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

Company information

ZYX45(A) 45 minutes respiratory protection PPE reusable Compressed Oxygen Self-Rescuer packs

Company information

With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 20 years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We mainly export products of three categories:

1. Mining underground rescue product

2. Mining explosion-proof lamp

3. Mining explosion-proof instrument and meter

Our main products:

1. CE approved chemical oxygen self-rescuer

2. Compressed oxygen self-rescuer

3. Filter self-rescuer

4. ATEX approved LED miner's cap lamp

5. Methane alarm LED miner's cap lamp

6. LED Flame-proof laneway lamp

7. Mechanical and electronic anemometer

8. Isolated positive pressure oxygen breathing apparatus

9. Automatic resuscitator

10. Optical interference type methane detector

11. Portable multi-parameter gas detector

12. Infrared thermometer

13. Laser distance meter

14. Laser guider
