Specifications
Brand Name :
ZTIC
Model Number :
Conveying Hoisting Machine
Certification :
ISO/CE
Place of Origin :
China
MOQ :
>=1 Sets
Price :
$10,000.00
Payment Terms :
L/C, T/T
Supply Ability :
10.0 Set/Sets per Month
Packaging Details :
Standard packing or according to customer's requirement
Condition :
New
Name :
Ore Vibrating Feeder
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining
Local Service Location :
Viet Nam, Indonesia, Australia, Argentina
After-sales Service Provided :
Engineers available to service machinery overseas
Model :
GZD,ZSW series
Port :
qingdao, tianjin, shanghai
Warranty :
1.5 years
Max. feeding :
300mm
Pocessing capacity :
80t/h
Motor power :
1.1*2kw
Obliquity of material trough :
10o
Total weight :
2798kg
Type :
Conveying Hoisting Machine
Description
Vibrating Feeder With Adjustable Bar Gap Used In Mining Metallurgy And Coal
Vibrating feeder is a feeding device widely used in metal, coal and other industries. It is mainly used to evenly discharge the material in the silo onto the belt conveyor to form a material layer of appropriate thickness and width.
Working Principle
A motor vibrating feeder uses two vibration motors of the same specification as the excitation source. The excitation force is generated by eccentric weights at each end of the motors, making it an ideal vibratory drive device. The feeding process of a motor vibrating feeder is achieved by reciprocating linear vibration of the feed trough in the inclined direction. When the component of the trough's vibration acceleration exceeds the component of gravity acceleration perpendicular to the trough, the material in the trough is thrown up and jumps forward in a parabolic wheel path. With each vibration of the trough, the material is thrown up once. In this way, the material continuously jumps forward at the trough's vibration frequency, achieving the desired feeding effect.
Structural Features
  • Smooth vibration;
  • Special bar design prevents material blockage;
  • Adjustable bar gap;
  • Optional stepless speed control motor for easy feed rate control without frequent motor restarts.
Technical Parameters Of Conveying Hoisting Machine
Model
 Max. feeding (mm) Pocessing capacity (t/h) Motor power (kw) Obliquity of material trough (o) Total weight (kg) Trough size (mm) Dimensions (L*W*H) (mm)
GZD-650*2300
300
80
1.1*2
10
2798
650*2300
2300*1360*780
GZD-750*2500
350
100
1.1*2
10
3260
750*2500
2500*1460*780
GZD-850*3000
400
120
3*2
10
3607
850*3000
3110*1800*1600
GZD-1000*3600
500
150
5.5*2
5
3895
1000*3600
3850*1950*1630
GZD-1100*4200
580
240
5.5*2
5
4170
1100*4200
4400*2050*1660
GZD-1100*4900
580
280
7.5*2
5
4520
4900*1100
5200*2050*1700
GZD-1300*4900
650
450
11*2
5
5200
4900*1300
5200*2350*1750
GZD-1500*5600 1050 450-800 12*2 10 7500 1500*5600 5700*2000*1750
ZSW-380*95
500
96-160
11
0
4082
3800*960
3920*1640*1320
ZSW-490*110
630
120-280
15
0
5352
4900*1100
4980*1830*1320
ZSW-600*130
750
400-560
22
0
7800
6000*1300
6082*2580*2083
ZSW-600*150
800
500-700
30
0
10190
600*1500
6086*2660*1912
ZSW-600*180
800
700-1000
37
0
13750
600*1800
6310*3262*2230

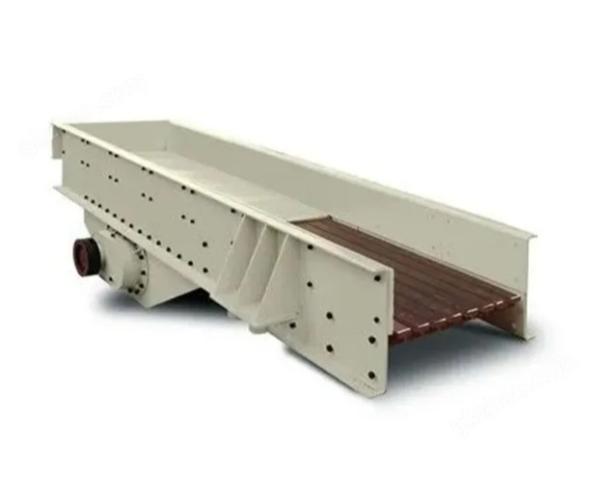

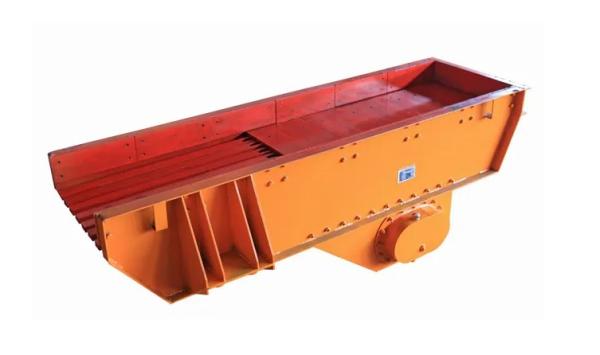

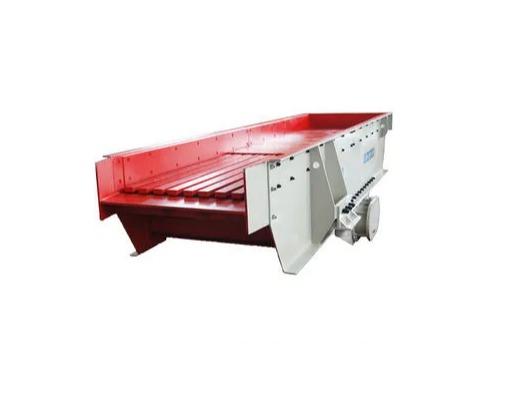

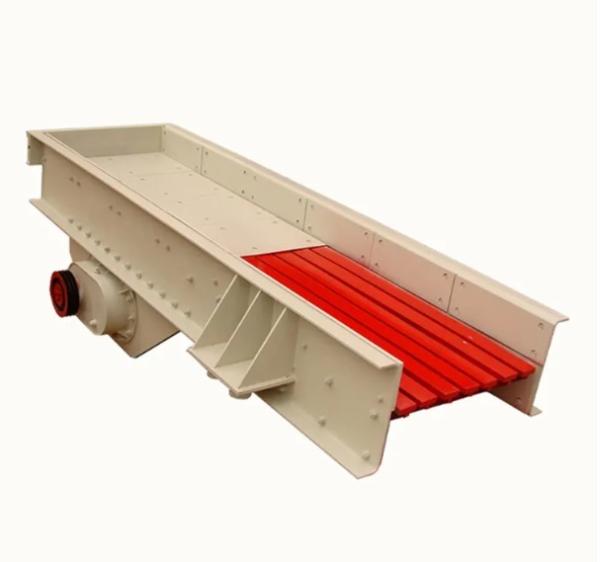

Product Display Of Conveying Hoisting Machine

Vibrating Feeder With Adjustable Bar Gap Used In Mining Metallurgy And Coal
Vibrating Feeder With Adjustable Bar Gap Used In Mining Metallurgy And Coal
Conveying Hoisting Machine

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
