Compact Structure And Stable Operation Bucket Elevator
Compact Structure And Stable Operation Bucket Elevator
Compact Structure And Stable Operation Bucket Elevator
Compact Structure And Stable Operation Bucket Elevator
Compact Structure And Stable Operation Bucket Elevator
Compact Structure And Stable Operation Bucket Elevator
Compact Structure And Stable Operation Bucket Elevator
Compact Structure And Stable Operation Bucket Elevator
Specifications
Brand Name :
ZTIC
Model Number :
Conveying Hoisting Machine
Certification :
IOS/CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 sets per year
Delivery Time :
30 workday
Packaging Details :
regular packing
Conveying Hoisting Machine :
Bucket Elevator
Application :
metallurgy, chemical industry
Usage :
conveye materials in vertical state
Feature :
Efficient stable
Port :
Qingdao
Key Word :
Conveying Hoisting Machine
Conveying capacity :
36.6m3/h
Sprocket pitch diameter :
φ630mm
Description

Compact Structure And Stable Operation Bucket Elevator

Bucket elevator is a device used to transport materials from a lower level to a higher level. After the material is fed into the hopper via a vibrating platform, the equipment automatically starts continuous upward transport.
The working process is as follows: the buckets scoop up material from the bottom storage area, are lifted upwards by a conveyor belt or traction chain, and after reaching the top, they rotate around the top pulley and then tilt downwards, discharging the material into a designated receiving chute.

Based on the transmission method, bucket elevators are divided into two types:
Belt-driven type: The transmission component uses a rubber belt, which is fitted onto the drive and idler pulleys at the top and bottom ends. The rotation of the pulleys drives the belt and buckets.
Chain-driven type: Equipped with two parallel transmission chains, with corresponding drive and idler sprockets installed at the top and bottom. The meshing transmission between the sprockets and chains achieves the lifting and conveying of the buckets.
To prevent dust from flying during transportation, the bucket elevator is assembled with a casing, forming a closed conveying space.
From a structural perspective, the core components of a bucket elevator include the buckets, drive device, top and bottom pulleys (or sprockets), conveyor belt (or traction chain), tensioning device, and casing. These components work together to ensure stable and efficient operation of the equipment.

Product parameters of Conveying Hoisting Machine

TH/TGH Series Bucket Elevator

Model Bucket shape Conveying capacity
(m3/h)		 Bucket Chain Sprocket pitch diameter (mm) Operation speed of bucket
(m/s)		 Max. size of materials
(mm)
Width (mm) Volume
(L)		 Distance
(mm)		 Pitch
(mm)		 Breaking load
(KN)
TH315 zh 36.6 315 3.75 500 50 ≥320 φ630 1.4 35
sh 58.6 6
TGH315 zh 46 3.75 400
sh 80 6
TH400 zh 57.7 400 5.9 500 40
sh 92.8 9.5
TGH400 zh 80 5.9 400
sh 125 9.5
TH500 zh 73 500 9.3 688 86 ≥480 φ800 1.5 50
sh 118 15
TGH500 zh 100 9.3 516
sh 157 15
TH630 zh 114 630 14.6 688 60
sh 185 23.6
TGH630 zh 152 14.6 516
sh 246 23.6
TH800 zh 146 800 23.3 920 92 ≥570 φ1000 1.4 75
sh 235 37.5
sh 365 58

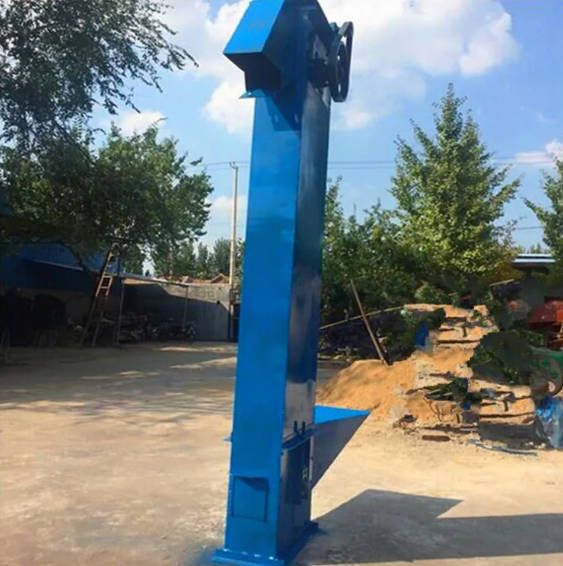

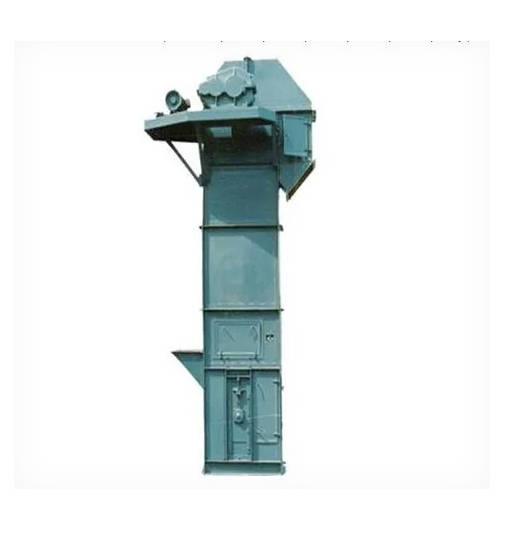

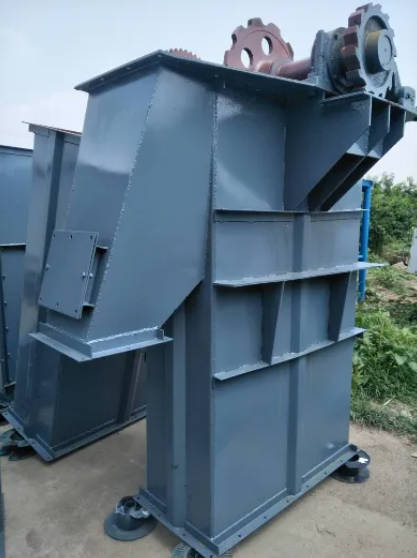

Product Display of Conveying Hoisting Machine

Compact Structure And Stable Operation Bucket Elevator

Compact Structure And Stable Operation Bucket Elevator

Conveying Hoisting Machine

FQA

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time :

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms :

A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: We can supply technical guide for machines running test and parts maintenance if end user needs.
