MachineU > China Products > Machinery > Energy & Mineral Equipment > Mining Machinery > Crusher
Breaking Screening Dressing Selective Coal Crusher Machine
Breaking Screening Dressing Selective Coal Crusher Machine
Breaking Screening Dressing Selective Coal Crusher Machine
Breaking Screening Dressing Selective Coal Crusher Machine
Specifications
Brand Name :
ZTIC
Model Number :
Cusotmized
Certification :
IOS/CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1800 sets per year
Delivery Time :
30 workday
Packaging Details :
regular packing
product name :
Selective Coal Crusher
type :
Coal processing Equipment
material :
Coal
model :
Φ2600X5000、Φ2400X3200、Φ2000×3200
certification :
IOS/CE
usage :
breaking, screening and dressing
size :
as details
capacity :
as details
Description

breaking, screening and dressing material Selective Coal Crusher

Selective Coal Crusher

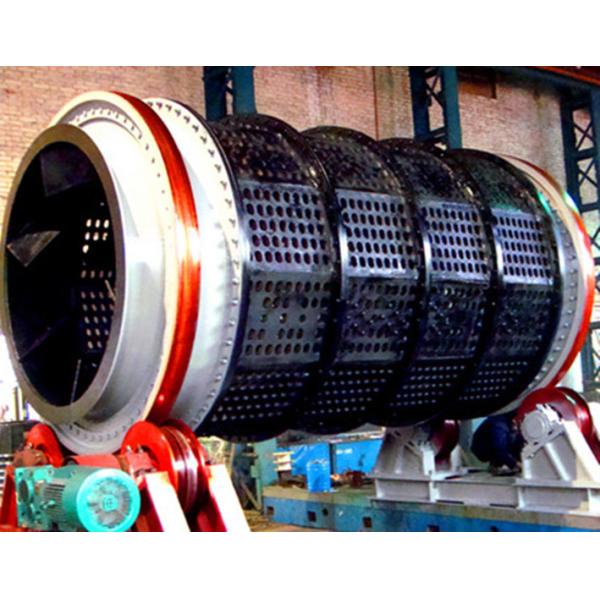

The equipment for raw coal roughing integrates breaking, screening and dressing, smashes large coal blocks through strength difference of gangue and coal, and separates coal and gangue through barrel wall gap, and is widely used for top crushing of large and medium coal preparation plants. ZTIC reasonably designs sieve pores for it, reducing blockage and improving efficiency.

Breaking Screening Dressing Selective Coal Crusher Machine

Φ2600X5000 Selective Coal Crusher parameters

1,Effective diameter of the drum 2600mm
2,Effective Length Of Drum 5000mm(Including to screen section)
3,cylinder slope d=0°(horizontal)
4,drum rotation speed 13.7rpm
5,Max Feed Size 300mm
6,Discharge size <50mm
7,Material falling number 8—9
8,capacity 300t/h(Amount of raw coal)
9,motor model:JO2-72-6
power:22kw
Speed:970rpm
Numbe :2
10, reducer model:PM650-Ⅵ-3z 1 set
PM650-Ⅵ-4 1 set
Ratio:i=15.75
11,Weight(With no load) 40.9 ton
12,Dimensions:L* W * H 9580×3410×4910MM

Φ2400X3200 Selective Coal Crusher parameters

1, Effective diameter of the drum 2200mm
2, Effective Length Of Drum 3200 mm(Including to screen section)
3, cylinder slope d=0° (horizontal)
4, drum rotation speed 13.7 rpm
5, Max Feed Size 300mm
6, Discharge size <50mm
7, Material falling number 8—9
8, capacity 120 t/h(Amount of raw coal)
9, motor model:Y2 200L-6
power:18.5kw
Speed:970 rpm

Numbe :2
10, reducer model:KD80-A 1set
KD80-B 1set

Ratio:i=15.75
11, Weight(With no load) 40.9t
12, Dimensions:L* W * H 9608×2854×4180mm

Φ2000×3200 Selective Coal Crusher parameters

1, Effective diameter of the drum 1800mm
2, Effective Length Of Drum 3200 mm(Including to screen section)
3, cylinder slope d=0° (horizontal)
4, drum rotation speed 10.8 rpm
5, Max Feed Size 300mm
6, Discharge size ≤50mm
7, Material falling number 8—9
8, capacity 80t/h( Amount of raw coal)
9, motor Model:Y160M1-4
Power:11KW
Speed:1460rpm
NO:2 Set
10, reducer Model:KDK08 1 set
NO: 2 Set
Ratio:i=24.92
11, Weight(With no load) 15.2t
12, Dimensions:L* W * H 9608×2140×2730mm
