Specifications
Place of Origin :
Henan, China
Certification :
ISO, CE, RoHS
Supply Ability :
100 Set/Sets per Month
Packaging Details :
Standard packing or according to customer's requirement
MOQ :
>=1 Sets
Price :
$10,000.00
Brand Name :
ZTIC
Model Number :
Ore Dressing Equipment
Condition :
New
Type :
Centrifuge
Voltage :
Depands
Power(W) :
22kw
Weight :
2620kg
Dimension(L*W*H) :
2150*1875*1765mm
Warranty :
1 YEAR
After-sales Service Provided :
Field installation, commissioning and training, Video technical support, Online support
Key Selling Points :
Long Service Life
After Warranty Service :
Video technical support, Online support
Local Service Location :
Viet Nam, Indonesia, Australia, Argentina
Showroom Location :
None
Feed size :
0-25mm
Capacity :
50-100t/h
Product water :
5-9%
Sceen bowl big end diameter :
1000mm
Seam screen size :
0.25, 0.3, 0.35, 0.5mm
Screen vibration frequency :
25Hz
Double-amplitude :
4-6mm
Main motor power :
22kw
Vibration motor power :
5.5kw
Oil pump motor power :
0.37kw
Port :
QingDao,ShangHai,TianJin
Description
Product Description

The series product has sieve basket diameter of 850mm~1,500mm, and is mainly used for dehydration of blocky clean coal, middlings and other similar materials, with 0.5mm~50mm designed feeding granule. It has advantages of small initial investment and floor area, low energy consumption, good dehydration effect, low coal crushing rate, long sieve basket life, convenient operation and maintenance and low noise, and sieve interval of 0.25, 0.3, 0.35, 0.5, etc.

Working Principle

The material enters the bottom of the screen blue through the enamel feeding tube and screen seat. The material in the screen blue is close to the screen surface under the action of centrifugal force. Under the action of vibration power, the material layer moves evenly to the big end of the screen blue. Let's go down. The moisture in the material, under the action of centrifugal force, passes through the material layer and screen crack, throws to the shell around, flows along the shell wall to the drain outlet.

Technical Parameters

.Product parameters of horizontal vibrating centrifuge

SPEC Unit Model
TWZ850 TWZ10A TWZ850 TWZ850 TWZ850 TWZ850
Feed size mm 0~25 0.5~50 0~50 ≤50 0.5~50
Processing power t/h 30~50 50~100 100~150 180~250 200~300 250~350
Product water % 5~9
Big end diameter of sieve basket mm 850 100 1150 1300 1400 1500
Seam screen size mm 0.25,0.3,0.35,0.5
Sieve basket vibration frequency Hz 25 25 25 25 25 25
Double amplitude mm 4~6 4~6 4~6 4~6 4~6 4~6
Main motor power Kw 15 22 37.5 45 55 75
Vibration motor power Kw 4 5.5 7.5 7.5 11 15
Oil pump motor power Kw 0.37 0.37 0.55 0.55 0.55 0.55
Dimension L mm 2060 2150 2800 2700 3100 3170
W mm 1510 1875 1930 2260 3090 2975
H mm 1652 1765 1930 2245 2295 2400
Device weight Kg 2500 2620 5527 6500 9200 10000
TWZ Double Amplitude 2620kg  Horizontal Vibrating Centrifuge Of Ore Dressing Equipment

FQA

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time :

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms :

A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.

Send your message to this supplier
Send Now

TWZ Double Amplitude 2620kg Horizontal Vibrating Centrifuge Of Ore Dressing Equipment

Ask Latest Price
Place of Origin :
Henan, China
Certification :
ISO, CE, RoHS
Supply Ability :
100 Set/Sets per Month
Packaging Details :
Standard packing or according to customer's requirement
MOQ :
>=1 Sets
Price :
$10,000.00
Contact Supplier

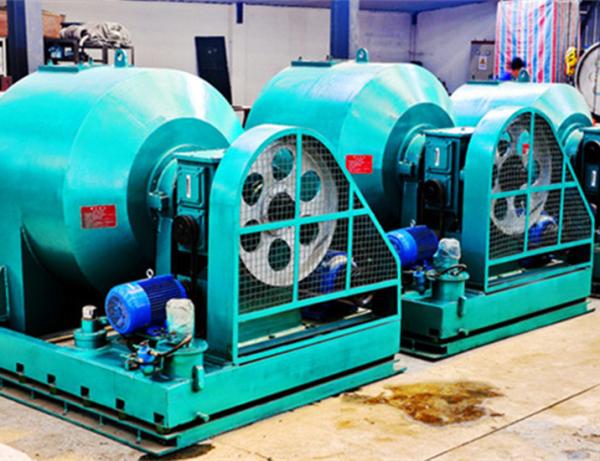

TWZ Double Amplitude 2620kg  Horizontal Vibrating Centrifuge Of Ore Dressing Equipment

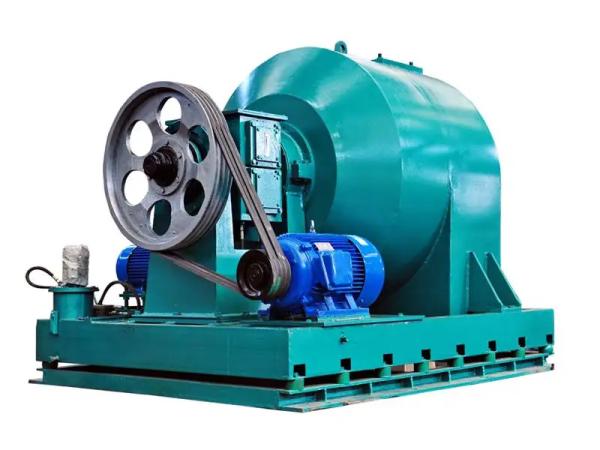

TWZ Double Amplitude 2620kg  Horizontal Vibrating Centrifuge Of Ore Dressing Equipment

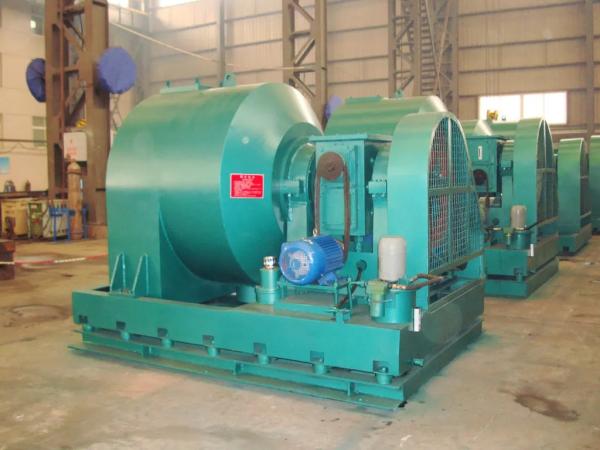

TWZ Double Amplitude 2620kg  Horizontal Vibrating Centrifuge Of Ore Dressing Equipment
