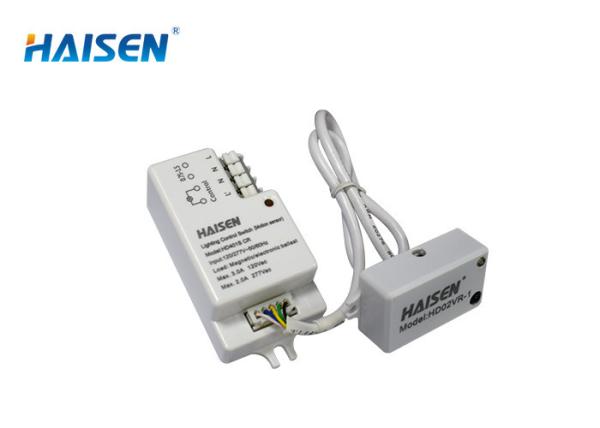

Wall Mounted On Off Switch Sensor Microwave Movement Detectors High Efficiency
Wall Mounted On Off Switch Sensor Microwave Movement Detectors High Efficiency
Specifications
Brand Name :
HAISEN
Model Number :
HD401S CR
Certification :
CE
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
1-3 days for sample order, 1-2 weeks for bulk order
Packaging Details :
Bubble pack, paper flat, outer carton.
Operating voltage :
120~277 VAC 50/60Hz
Switching capacity :
Max.3.0A@120Vac,Max.2.0A@277Vac
Hold time :
5s/1min/5min/10min
Daylight threshold :
2Lux/10Lux/50Lux/Disable
Microwave frequency :
5.8GHz±75MHz
Microwave power :
<0.3mW
Interfaces :
4-pole pluggable clamp terminal(L,N,N,L?for 0.75-1.5mm2 cable
Life time :
50,000 hours
Description

CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light

Features:

  • HD401S CR is an innovative and active motion detector with HF system 5.8GHz.
  • It automatically switches on/off light based on mo tion and ambient light level.
  • Can control all kinds of lamps, for example, halogen, fluorescent and LED lights.
  • Compact size and small casing, suitable to fix within most luminaires.
  • Motion can be detected through plastic, glass and thin non-metal materials.

Detailed Product Description

Operating voltage 120~277 VAC 50/60Hz
Switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Stand-by power <1W
Detection area 10%/50%/75%/100%
Hold time 5s/1min/5min/10min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Interfaces 4-pole pluggable clamp terminal(L,N,N,L?for 0.75-1.5mm2 cable
Mounting height Max.6m(ceiling mounted);Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted);Max.10m(wall mounted)
Detection angle 30°-150°
Operating temperature -20°C~+60°C
IP rating IP20
Life time 50,000 hours
Warranty 5 years

Wiring diagram

Mechanical structure(mm)

Detection coverage

Mounting height---Max.6m(ceiling mounted);Max.3m(wall mounted)

Detection range---Max.ø14m(ceiling mounted);Max.10m(wall mounted)

Demo

Note: MPlease refer to the instruction of HD02R for settings; it's only ON/OFF function, standby period and standby dimming level don't work.

HD02VR-1 Wire diameter 4mm,Standard Version Cable Length 30cm(can be customized).

Application
