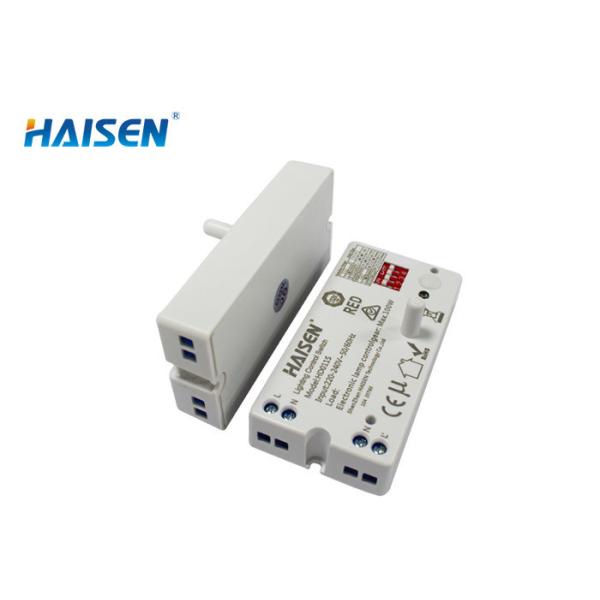

Small Motion Detector Light Sensor Lighting Control HF Movement Detector
Small Motion Detector Light Sensor Lighting Control HF Movement Detector
Specifications
Brand Name :
HAISEN
Model Number :
HD011S
Certification :
ROHS, CE TUV RED
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
1-3 days for sample order, 1-2 weeks for bulk order
Packaging Details :
Bubble pack, paper flat, outer carton.
Detection area :
50%/100%
Hold time :
5s/60s/3min/10min
Daylight threshold :
30Lux/Disable
IP rating :
IP20
Operating voltage :
220~240 VAC 50/60Hz
Microwave frequency :
5.8GHz±75MHz
Cover Color :
White
Certificates :
ROHS, CE
Description

Small Motion Detector Light Sensor Lighting Control HF Movement Detector

Features:

  • On/ Off Function.
  • Ceiling Mounted Version.
  • Stand-by Power: ≤0.5W.
  • Max. Mounting Height: 6m.
  • Columnar Antenna Design.
  • Suitable for ceiling/tri-proof Light.
  • Fuctions such as detection area, hold time and daylight sensor can be set via DIP.
  • 5 Years Guarantee.


Description:
HD011S On/Off Control For Ceiling/Tri-panef/panel lights,Super Compact size of 76.9*39.9*27.7mm, suitable for different led fittings.Unique design with loop in and loop out, easy to instal.Detection area, hold time and daylight sensor are selectable via DIP switch,5.8GHz high frequency microwave.4-pole press-in terminal (L, N,N,L′),easy assembly.Detection area, time delay and daylight threshold can be precisely set via DIP switch.



Detailed Product Description

Working voltage 220~240 VAC 50/60Hz
Switching capacity Max.100W
Stand-by power ≤0.5W
Detection area 50%/100%
Hold time 5s/60s/3min/10min
Daylight threshold 30Lux/Disable
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Interfaces 4-pole pluggable clamp terminal(L,N,N,L’) for 0.75-1.5mm2 cable
Mounting height Max.6m(ceiling mounted)；Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted)；Max.10m(wall mounted)
Detection angle 30°-150°
Operating temperature -25°C~+60°C
IP rating IP20
Life time 50,000 hours
Warranty 5 years
