120V 277VAC Input PIR Motion Sensor High Bay Use Movement Detector
120V 277VAC Input PIR Motion Sensor High Bay Use Movement Detector
Specifications
Brand Name :
HAISEN
Model Number :
HD406PIR
Certification :
CE
Place of Origin :
China
MOQ :
48pcs/ctn
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Supply Ability :
1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Delivery Time :
Standard Models Within 3 Weeks
Packaging Details :
Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton
Color :
White
Input :
120-277VAC
Function :
0-10V Dimming
Programming :
Remote Control
Products name :
PIR Motion Detector
Application :
High Bay Use
Description

120V 277VAC Input PIR Motion Sensor High Bay Use Movement Detector

120-277vac Input Pir Sensor Highbay Use With 3 Different Designs For Differeent Applications

Operating Voltage

120-277VAC,50Hz/60Hz

Switching Capacity

Max.400W Control gear; Max.800W Incandescent lamp

Microwave Frequency

Stand-by power

≤1W

Control Method

0-10V Dimming

Programming

Remote Control

Detection Angle

Fresnel Lens ≤120° Fersnel Lens 360° Ceiling Mounted

Detection Range

Radius, 4-6m/13.12-19.68ft Ceiling Mounted

Mounting Height

 Max12m/39.37ft Ceiling Mounted

Detection Area

100%/75%/50%/25%

Hold Time

5s/30s/1min/5min/10min/20min/30min

Daylight Threshold

2Lux/10Lux/50Lux/Disable

Stand-by Period

0s/10s/30s/1min/5min/10min/30min/+∞

Stand-by dimming

10%/20%/30%/50%

IP Rating

IP20

Operating Temperature

-20°C~+55°C

Warranty

3 Years

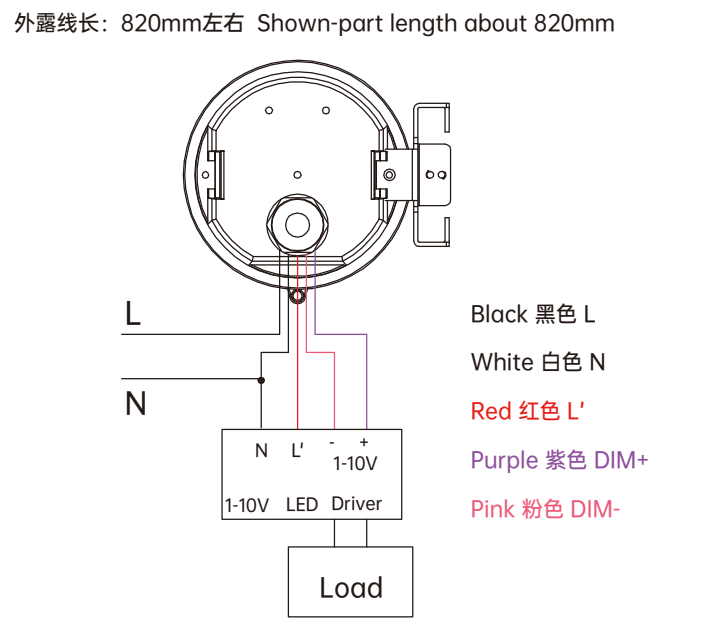

Wiring Diagram

120V 277VAC Input PIR Motion Sensor High Bay Use Movement Detector

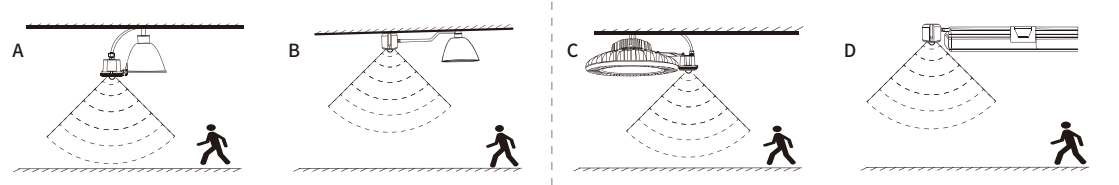

Applications

120V 277VAC Input PIR Motion Sensor High Bay Use Movement Detector

Function Performance

120V 277VAC Input PIR Motion Sensor High Bay Use Movement Detector

HD406PIR.pdf
