120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions
120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions
Specifications
Brand Name :
HAISEN
Model Number :
HD418VHP
Certification :
UL FCC
Place of Origin :
China
MOQ :
48pcs/ctn
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Supply Ability :
1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Delivery Time :
Standard Models Within 3 Weeks
Packaging Details :
Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton
Height :
Max 12M
Function :
ON/OFF or Dimmable
Certifification :
UL FCC
Input :
120-347VAC
Application :
Suitable For Linear Light And UFO Industrial Lights
products :
External PIR Sensor
Description

120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions

Specifications

120-347VAC Input, UL FCC Certifificated

Interchangeable With PIR Or Microwave Sensor Head

Highbay/ Lowbay, Dimmable, ON/OFF Versions

Suitable For Linear Light And UFO Industrial Lights

Technical Data

Operating Voltage

120-347VAC,50Hz/60Hz

Switching Capacity

120V: 3.3A/400W Control Gear; 800W Ballast or Incandescent

277V: 1.44A/400W Control Gear; 1200W Ballast or Incandescent

347V: 0.57A/200W Control Gear; 800W Ballast or Incandescent

Stand-by power

≤1W 230VAC

Control Method

On/off / 1-10V Dimming

Detection Angle

＜120 ° Without Glass Cover

Detection Range

Radius, 9m/29.52ft Max.

Mounting Height

2.5-6m/8.2-19.68ft Ceiling Mounted
8-12m/26.24ft-39.37ft Ceiling Mounted

Detection Area

25%/50%/75%/100%

Hold Time

5s/30s/1min/3min/5min/10min/20min/30min

Daylight Threshold

2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable

Stand-by Period

0s/10s/30s/1min/5min/10min/30min/60min/+∞

Stand-by dimming level

10%/20%/30%/50%

IP Rating

IP20

Operating Temperature

-20°C ~ 60°C

Warranty

3 Years

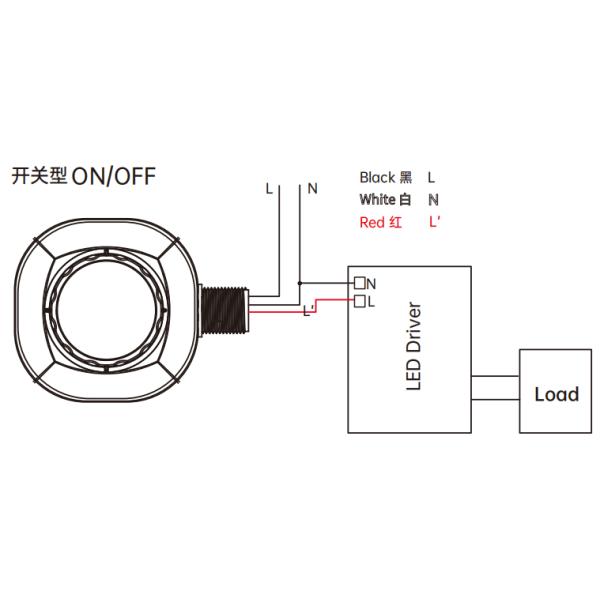

Wiring

120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions

120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions

Performance

  • With sufficient daylight, the sensor keeps light OFF even motion getsdetected.
  • With insufficient daylight, the sensor turns light ON when motion gets detected.
  • After there's no motion detected, the sensor keeps light ON 100% for holdtime.
  • After holdtime, sensor dims light to standby dimming level for standby period.
  • The sensor turns OFF light automatically after the standby period when there's no motion detected.

HD418P.pdf
