Compact Round PIR Sensor 12VDC Input Power With Remote Control
Compact Round PIR Sensor 12VDC Input Power With Remote Control
Specifications
Brand Name :
HAISEN
Model Number :
HP011VR
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Supply Ability :
1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Delivery Time :
Standard Models Within 3 Weeks
Packaging Details :
Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Color :
White
Power :
12VDC
Control :
Remote Control
Function :
0-10V Dimming
Operating Current :
>30mA
Products :
Round PIR Sensor
Description

Compact Round PIR Sensor 12VDC Input Power With Remote Control

Features

  • 12VDC Input
  • Corridor Bi-Level Dimming Function
  • Default Programmed
  • Easy Connection

Parameter Table

Detection Method PIR SENSOR
Operating Voltage 10.5-15V DC
Operating Current ≤30mA
PIR Wave Length 5-14um
Control Method ON/OFF & DIM
Warm-up Period 45s
Mounting height ≤4m/13.12ft
Detection range Radius.2.5-4m/8.20-13.12ft
Programming Default Programmed
IP Rating IP20
Operating Temperature -20°C~+60°C
Warranty 3 Years

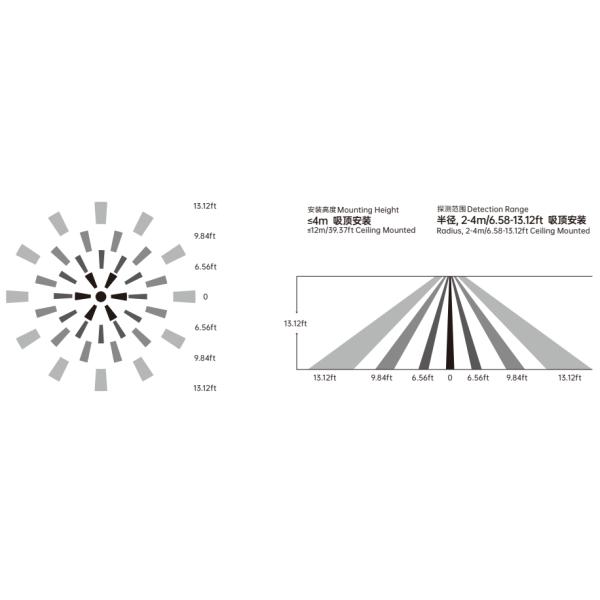

Detection Range

Compact Round PIR Sensor 12VDC Input Power With Remote Control

Wiring Diagram

  • RED - 12VDC input
  • BLACK - GND/DIM-
  • WHITE - DIM+

Performance

Sensor turns light ON 100% once detect motion during the standby period.

After there's no motion detected, the sensor keeps light ON 100% for holdtime.

After holdtime, the sensor dims to 50% standby dimming level and keep for the 1st standby period.

After the 1st standby period, the sensor dims to 30% standby dimming level and keep for 2nd standby period.

Specification Download

HP011V 12VDC Compact Round PIR Sensor.pdf
